Protection and Control Features of TPS5430DDAR

Introduction

In modern power management systems, safety and stable operation are core design goals. The TPS5430DDAR, developed by Texas Instruments, is a high-efficiency 3A step-down DC-DC converter. It not only delivers excellent power conversion capability but also integrates

1. Under Voltage Lock-Out (UVLO)

UVLO ensures that the device does not start when the input voltage is insufficient, preventing operation under unstable conditions.

Working Principle:

- Typical startup threshold: 5.5V

- Device remains off below this threshold

- Automatically resumes operation when voltage is restored

Design Significance:

Prevents malfunction and instability due to undervoltage.

2. Over Current Protection (OCP)

OCP limits the output current when it exceeds rated levels, protecting the chip from overheating or damage.

Working Principle:

- Peak current mode control

- Limits on-time when peak current is detected

- In case of short circuit, device enters current fold-back or shutdown

Design Significance:

Improves system robustness under overload or short-circuit conditions.

3. Over Temperature Protection (OTP)

OTP prevents chip failure due to overheating.

Working Principle:

- Shutdown at internal temperature >150°C

- Resumes when temperature drops below ~130°C

Design Significance:

Protects the device in high ambient temperatures or poor thermal conditions.

4. Over Voltage Protection (OVP)

OVP prevents abnormal voltage rise due to feedback loop failure.

Working Principle:

- Triggers shutdown when feedback voltage exceeds a set threshold

-Avoid overvoltage impact on the load equipment.

Design Significance:

Protects downstream circuits and sensitive components.

5. Soft Start

Soft start minimizes inrush current during startup.

Working Principle:

- Internal reference voltage ramps up slowly

- Gradual rise in output voltage

Design Significance:

Prevents voltage sag and startup surges in the system.

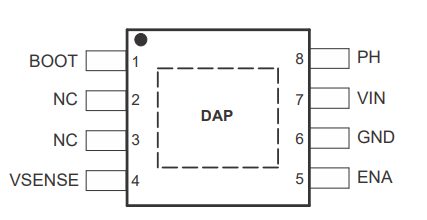

6. Enable Pin Control (ENA)

The ENA pin allows external logic to control the on/off state of the chip, supporting low-power designs.

Working Principle:

- High level (>2V): device on

- Low level (<0.8V): device off, ultra-low quiescent current (~15µA)

-Remote control, timed power-on and other functions can be achieved through this pin.

Design Significance:

Adds flexibility and energy efficiency to the power system.

Conclusion

With integrated protection features such as UVLO, OCP, OTP, and OVP, TPS5430DDAR ensures reliable performance even in harsh environments. These mechanisms reduce system maintenance costs and extend equipment life.

For power system designers, understanding and utilizing these functions helps create safer and more efficient designs.
