STM32F407VGT6: Comprehensive Analysis of the High-Performance Cortex-M4 Microcontroller

STM32F407VGT6 is a high-performance 32-bit ARM Cortex-M4 microcontroller developed by STMicroelectronics. It is equipped with a floating-point unit (FPU) and has digital signal processing (DSP) capabilities. This product integrates a wide range of peripheral resources, high-speed interfaces and large-capacity memory, and is suitable for various high-demand embedded system designs.

Key Features

1.Core and Performance

l Core: ARM Cortex-M4 (with FPU)

l Clock speed: Up to 168 MHz

l Execution efficiency: 1.25 DMIPS/MHz (Dhrystone 2.1)

2. Storage resources

l Flash memory: 1 MB

l SRAM: 192 KB

   112 KB Main SRAM

  64 KB CCM (Cohesive Coupled Memory)

   16 KB backup SRAM (power failure protection)

3.Peripheral Interfaces

l USART/UART: 4×USART, 2×UART

l SPI/I2S: 3×SPI, 2×I2S

l I2C: 3 channels

l CAN: 2 channels

l USB:

   USB OTG Full Speed

   USB OTG High Speed (with ULPI)

l Ethernet: 10/100 MAC (Supporting IEEE 1588)

l SDIO: SD/MMC interface

4.Simulation Function

l ADC: 3 12-bit ADCs, up to 24 channels, sampling rate up to 2.4 MSPS

l DAC: 2 12-bit DAC channels

l Comparator/Operational Amplifier: Can be realized through external expansion.

5.Timer

l Total: 17 items

   Including PWM, input capture, output comparison, encoder mode, etc.

6.Other Functions

l DMA: 12-channel controller

l CRC Check Unit

l Independence and Window Watchdog

l RTC Real-time Clock

l Temperature sensor

Typical Applications

1. Industrial Control (PLC, Drive Controller)

2. Internet of Things devices (including Ethernet/USB interfaces)

3. Medical electronics (portable diagnostic equipment)

4. Automotive electronics (non-safety-critical components)

5. Multimedia audio processing (digital audio players, voice processors)

6. Consumer electronics (home appliances, smart home devices)

7. Education and development platform (such as STM32F4 Discovery)

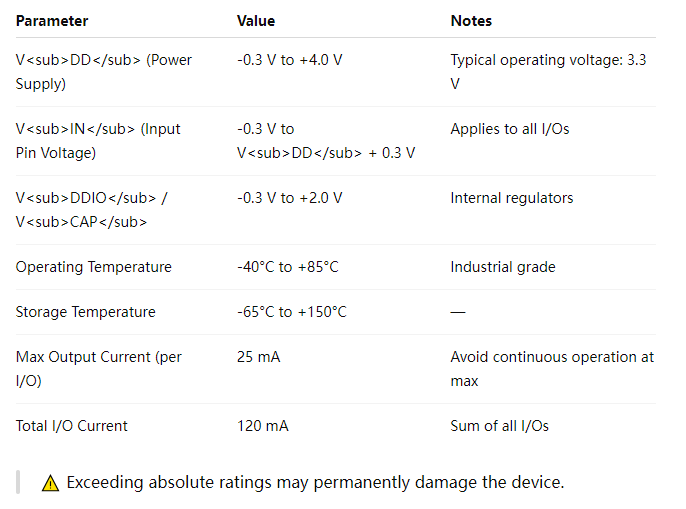

Absolute Maximum Ratings

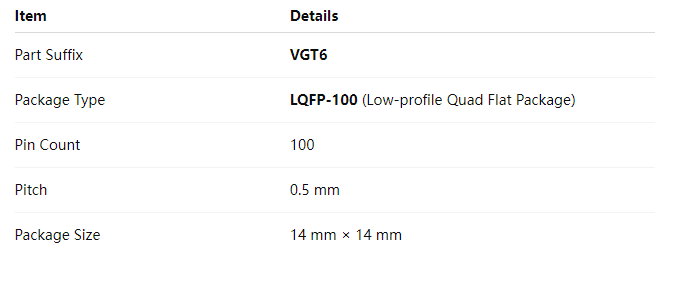

 Packaging Information

Conclusion

The STM32F407VGT6, as the main chip of the STM32F4 series, achieves a good balance between performance, functionality and cost. It offers excellent solutions for requirements such as speed, interface quantity, and high-reliability embedded development. For mid-to-high-end embedded projects, it is a reliable "all-rounder".
