XC3S1000-4FTG256I: A cost-effective industrial-grade FPGA solution

With the continuous development of embedded systems and intelligent electronic devices, FPGA (Field Programmable Gate Array) is playing an increasingly important role in fields such as industrial control, communication, and automotive electronics. The Spartan-3 series FPGA launched by Xilinx is widely popular for its excellent cost performance and stable performance. Among them, the XC3S1000-4FTG256I is a highly regarded medium-scale FPGA chip in this series and is widely used in various medium-complexity designs.

1.Overview of Chips

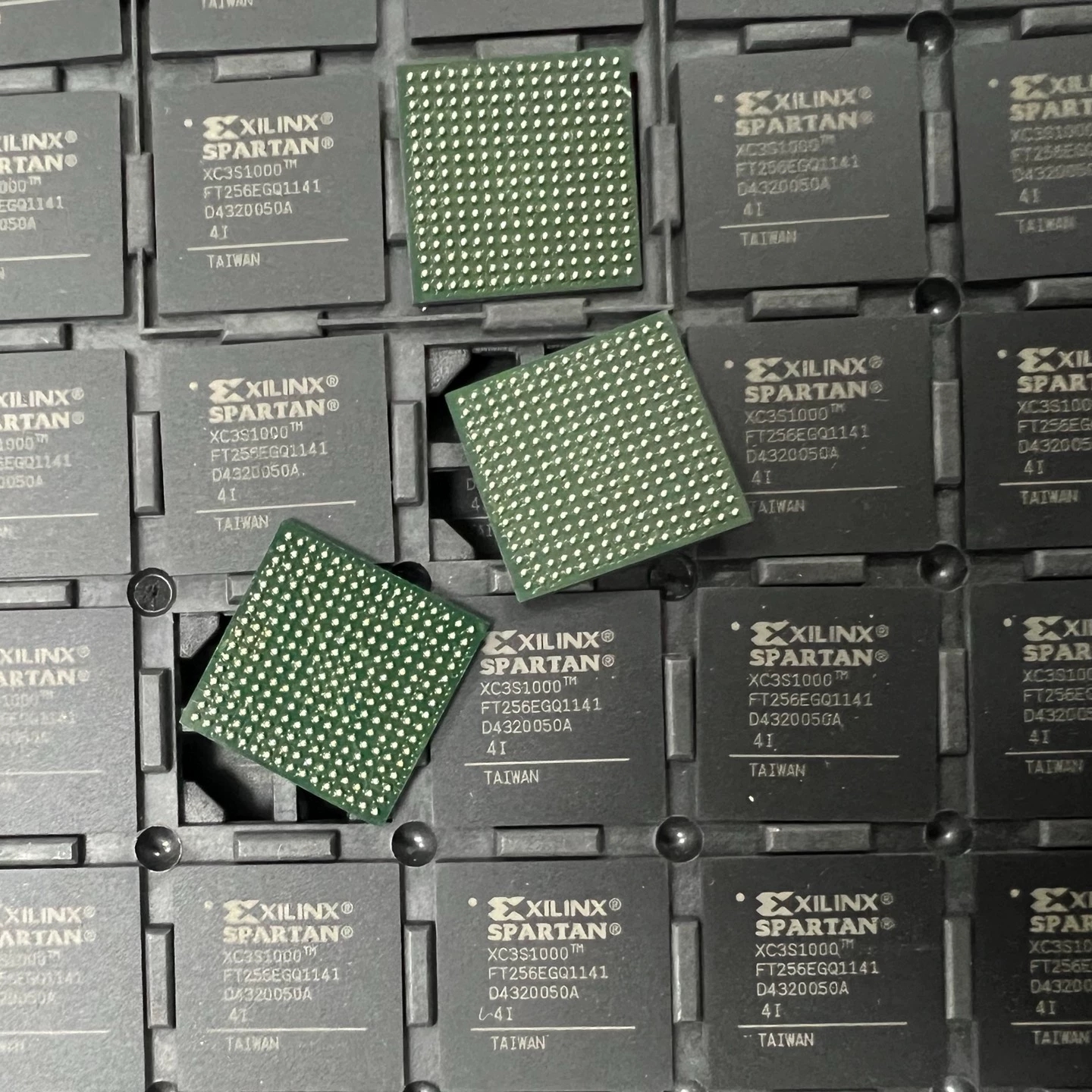

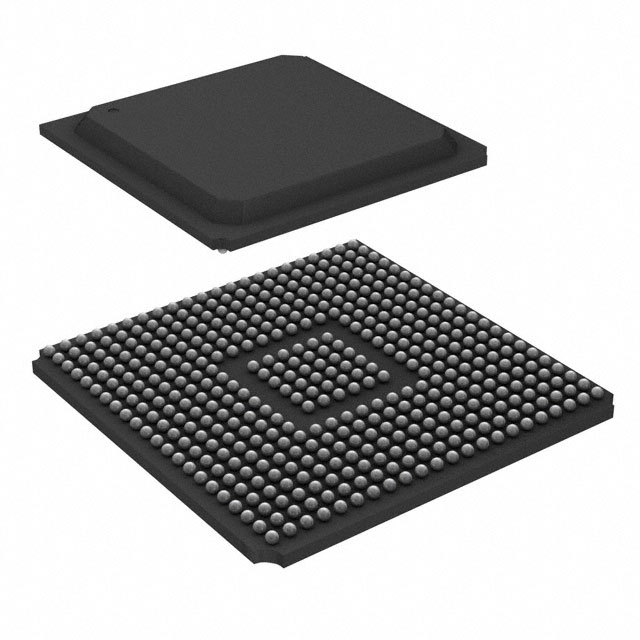

The XC3S1000-4FTG256I is an FPGA product based on the Xilinx Spartan-3 architecture. It has approximately one million system gate sizes and 17,280 logic units, and is equipped with 173 user I/O pins simultaneously. It can meet the requirements of complex logic control and multi-channel data interaction. This model adopts the FTBGA-256 package and has a high degree of integration and good heat dissipation performance.

As an industrial-grade model, its operating temperature range is from -40°C to +100°C, making it suitable for applications in harsh environments.

2.Features

•Low-cost, high-performance logic solution for high-volume,consumer-oriented applications

•Densities up to 74,880 logic cells

•SelectIO™interface signaling

•Up to 633 I/O pins

•622+ Mb/s data transfer rate per I/O

•18 single-ended signal standards

•8 differential I/O standards including LVDS, RSDS

•Termination by Digitally Controlled Impedance

•Signal swing ranging from 1.14V to 3.465V

•Double Data Rate (DDR) support

•DDR, DDR2 SDRAM support up to 333 Mb/s

•Logic resources

•Abundant logic cells with shift register capability

•Wide, fast multiplexers

•Fast look-ahead carry logic

•Dedicated 18 x 18 multipliers

•JTAG logic compatible with IEEE 1149.1/1532

•SelectRAM™hierarchical memory

•Up to 1,872 Kbits of total block RAM

•Up to 520 Kbits of total distributed RAM

•Digital Clock Manager (up to four DCMs)

•Clock skew elimination

•Frequency synthesis

•High resolution phase shifting

•Eight global clock lines and abundant routing

•Fully supported by Xilinx ISE® and WebPACK™software development systems

•MicroBlaze™and PicoBlaze™processor, PCI®,PCI Express® PIPE Endpoint, and other IP cores

•Pb-free packaging options

•Automotive Spartan-3 XA Family variant

3.Typical Application Scenarios

The XC3S1000-4FTG256I, with its moderate resource allocation and extensive peripheral interface support, has become an ideal choice for multiple fields:

-Industrial automation control system: It is used for real-time logical judgment, sensor data processing, control signal output, etc.

-Communication equipment: Suitable for medium and low-speed data processing and protocol conversion applications.

-Automotive electronics: such as motor control, battery management, and control logic in in-vehicle entertainment systems.

-Consumer electronics: mid-to-high-end control modules for smart home devices, wearable devices, etc.

4.Summary

The XC3S1000-4FTG256I is a medium-sized FPGA chip that integrates reasonable resource allocation, industrial-grade temperature resistance performance and flexible I/O support. Whether in terms of cost, functionality or reliability, it provides a good solution for embedded system developers. For project teams seeking FPGA devices with high cost performance and wide application range, this product is undoubtedly a choice worth considering.
