ISL99380FRZ-TR5935: 80A Intelligent Power Stage Solution for AI and High-Performance Computing

With the development of AI servers, GPU acceleration cards, cloud computing platforms, and high-performance motherboards, processors have raised higher requirements for the power supply system. Modern CPUs and GPUs not only need higher current output, but also require power supply systems to have faster transient response, higher conversion efficiency, and more precise temperature and current monitoring capabilities.

The ISL99380FRZ-TR5935 is an 80A Smart Power Stage (SPS) module launched by Renesas Electronics, mainly used for the power supply systems of high-performance CPUs, GPUs, servers, and data center motherboards.

What is Smart Power Stage (SPS)?

SPS is a highly integrated power management solution that includes:

• High-Side MOSFET
• Low-Side MOSFET
• Gate Driver
• Current detection
• Temperature monitoring

Integrated into a single package.
Compared to the traditional discrete MOSFET solution, SPS has:

• Higher power density
• Less PCB area occupation
• Lower power consumption
• Higher system reliability

In high-end servers and AI GPUs, SPS has gradually become the mainstream power supply architecture.

The core functions of ISL99380FRZ-TR5935

1. Supports up to 80A output current
The ISL99380FRZ-TR5935 can support a maximum continuous output current of 80A, which can meet the power supply requirements of some high-power core devices.
For modern AI chips, the core current often exceeds several hundred amperes. Therefore, motherboards usually adopt a multi-phase parallel power supply architecture, and the ISL99380 series is suitable for building high-current multi-phase VRM.

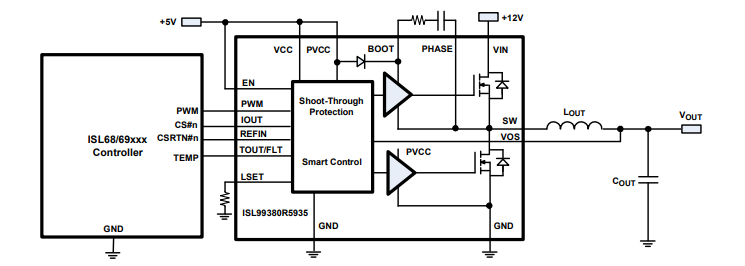

2. Integrated DrMOS/SPS architecture
Internal integration:

• High-side MOSFET
• Low-side MOSFET
• Gate Driver

It can reduce the number of peripheral components.
The advantages of this design include:

1. Smaller PCB area: suitable for high-density server and graphics card designs.
2. Lower parasitic parameters: reducing parasitic inductance and parasitic resistance, improving the stability of high-speed switching.
3. Higher conversion efficiency: reducing switching loss and conduction loss.
4. Simpler BOM: reducing the number of peripheral components and lowering the design complexity.

This is also an important upgrade direction of SPS compared to traditional MOSFET solutions.
3. High-precision current detection function
The ISL99380 series has a built-in high-precision current monitoring module, with an error as low as ±3%.
Used for:

• Current sampling
• Load line control (Loadline)
• Dynamic power consumption management

Suitable for multi-phase digital power supply systems.
4. Built-in temperature monitoring function
The chip integrates a temperature monitoring output (TOUT), with a temperature monitoring sensitivity of approximately: 8 mV/^{\circ}C. It can provide real-time feedback on the thermal state, improving system reliability.
5. High-frequency switching capability
The ISL99380FRZ-TR5935 supports the following:
f_{SW}=1.25 MHz
The higher switching frequency can:

• Reduce output ripple
• Reduce output inductor volume
• Improve transient response speed
• Optimize dynamic load performance

This is particularly important for AI computing scenarios, as GPU current changes very rapidly.
6. Complete protection mechanism
Built-in:

• Overcurrent protection (OCP)
• Overtemperature protection (OTP)
• Under-voltage lockout (UVLO)
• Short-circuit protection

Improve system stability and security.
These functions can significantly enhance:

• The stability of industrial equipment
• The reliability of server operation
• The security of data centers

Why are AI servers increasingly relying on SPS?

As the power consumption of NVIDIA GPUs, AI ASICs and high-performance CPUs keeps increasing, the power supply system has become the core of motherboard design.

For example:

• The power consumption of AI GPUs can exceed 700W
• The CPU of high-end servers exceeds 400W
• The current of the VRM in data centers can reach several thousand amperes

This means:

• Higher efficiency
• Lower heat generation
• More precise monitoring
• Faster response

It becomes a necessary condition.
Compared with traditional DrMOS, the SPS architecture:

• Has higher integration
• Better thermal management
• More precise current detection

Therefore, it is widely used in:

• AI servers
• GPU acceleration cards
• Cloud computing platforms
• E-sports motherboards
• Industrial high-performance DC-DC modules

The typical application of ISL99380FRZ-TR5935

Server motherboard VRM

• AI/GPU power supply
• Data center power supply
• High-end graphics cards
• Industrial high-current DC-DC power module

Suitable for high-reliability power supply systems.

Summary

ISL99380FRZ-TR5935 is a high-performance 80A Smart Power Stage that integrates high current output, high efficiency, precise current detection, temperature monitoring and multiple protection mechanisms. It is highly suitable for AI GPUs, data centers, server VRMs and high-performance computing platforms.
In the context of the continuous growth of AI computing power, high density, high efficiency, and multi-phase digital power supply will become the core direction of future server power development, and the ISL99380 series SPS is one of the key components in this trend.
