PBHV8540T - The Ideal Choice for High-Efficiency Switching and Amplification Circuits

Introduction

PBHV8540T is an NPN high-voltage low-saturation transistor packaged in SOT-23. It features high voltage and low saturation voltage drop, and is specifically designed for general switching and amplification applications. The collector-emitter voltage can reach up to 400V, and the collector current can reach 0.5A. Its amplification or switching control function is highly suitable for high-voltage control circuits such as electronic ballasts, LED drivers, and current management.
This article will provide a detailed explanation of the characteristics, application examples, working principle, and design considerations of PBHV8540T.

Features

• High voltage
• Low collector-emitter saturation voltage VCEsat
• High collector current capability IC and ICM
• High collector current gain (hFE) at high collector current
• Small SMD plastic package

Applications

1. Electronic ballast for fluorescent lighting
2. LED driver for LED chain module
3. LCD backlighting
4. High Intensity Discharge (HID) front lighting
5. Automotive motor management
6. Hook switch for wired telecom
7. Switch Mode Power Supply (SMPS)

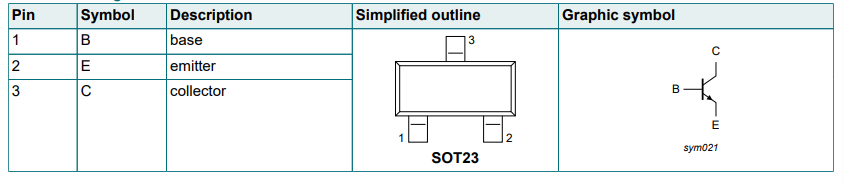

Pin Definitions and Packages

The package dimensions are approximately 2.9 mm × 1.3 mm × 1 mm, in SOT23 specification.
The marking code is "W4%" (where "%" is the factory code).

Working principle

PBHV8540T is a NPN type high-voltage low saturation pressure transistor, belonging to a bipolar transistor. Its function is to amplify the tiny base current into a larger collector current, achieving amplification or switching control functions.

1. Conduction mechanism

Three semiconductor regions:

• Emitter (E): Used for emitting electrons.
• Base (B): Used for controlling current.
• Collector (C): Used for collecting electrons.

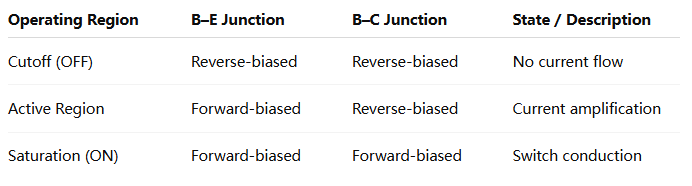

When PBHV8540T operates in different modes, the bias relationship of the junction is as follows:

2. Working Principle of the Switch

In switch applications, the PBHV8540T mainly switches between two states: cut-off and saturation.
Cut-off State (OFF):

No current at the base (I_B ≈ 0);

The emitter-base junction is reverse-biased;

The collector current I_C ≈ 0;

The transistor acts as an "open switch".

Saturation State (ON):

A forward current is injected into the base;

The base-emitter junction conducts, and electrons flow from the emitter to the base and are attracted by the collector field;

A large collector current (I_C ≈ β × I_B) is formed;

At this time, the collector-emitter voltage drop is very small (typical value < 0.2 V), and the transistor acts as a "closed switch".

3. Amplification Principle

In amplification applications, the PBHV8540T operates in the active region:

• The base-emitter junction is forward-biased; the base-collector junction is reverse-biased;
• A small change in base current causes a several-fold to hundreds-fold change in collector current: I_C = β × I_B.
• The typical DC current gain h_FE is between 100 and 200.
• Due to its high breakdown voltage (V_CEO = 400 V), it can be used to drive high-voltage loads or in flyback converters.

4. Significance of Low Saturation Voltage Drop

Low saturation voltage drop is a major advantage of the PBHV8540T. When the transistor is on, the voltage drop between the collector and emitter is very small; conduction loss and heat generation are low; and it is highly efficient in high-voltage, low-current applications. These benefits are attributed to Nexperia's unique collector region doping gradient design; optimized base thickness to reduce junction resistance; and high carrier mobility.

5. Typical Application Circuits

• LED or Fluorescent Lamp Driver Stage:
• Control constant or pulsed current;
• Collaborate with PWM control chips to achieve brightness adjustment.
• Auxiliary Switch in Switching Power Supplies or Flyback Converters:
• Control high-voltage side signals;
• Used in start-up or protection circuits.
• Signal Amplification and Voltage Detection:
• Provide signal amplification in high-voltage monitoring modules.

Design Considerations

1. Working Voltage and Junction Bias Design

• Ensure voltage margin
• Base bias control
• Reverse voltage protection

2. Power Consumption and Thermal Design

• Power loss calculation
• Heat dissipation layout

3. Switching and Frequency Characteristics

• Control of rise/fall time
• Prevention of parasitic oscillation

4. PCB Layout Suggestions

• Spacing of high-voltage traces
• Grounding and current loop

Conclusion

Overall, PBHV8540T is an NPN transistor with high voltage tolerance, low saturation loss and compact package. The design focuses on drive current, thermal management and high-voltage insulation safety. It is highly suitable for LED drivers, power switches and high-voltage control circuits. If you have any needs, please contact us.
