STM32L151RCT6 Low Power MCU | ARM Cortex-M3 Microcontroller

The STM32L151RCT6 is a high-performance model within the STM32L1 series of ultra-low-power microcontrollers (MCUs), specifically designed for embedded applications with demanding requirements in power consumption, stability, and peripheral integration. Built on the ARM Cortex-M3 core, this chip delivers strong computational performance while offering a rich set of analog interfaces, communication interfaces, and low-power operating modes, making it ideal for battery-powered devices, industrial control systems, smart meters, and IoT end terminals.

1. STM32L151RCT6 Product Overview

The STM32L151RCT6 is an ultra-low-power ARM Cortex-M3 microcontroller from STMicroelectronics. It features 256 KB flash memory, 32 KB SRAM, a comprehensive range of analog peripherals, multiple communication interfaces, and various low-power operation modes, making it highly suitable for battery-operated applications, IoT devices, smart meters, and industrial control systems.

Compared to traditional MCUs, the key advantages of the STM32L151RCT6 include:

•  Ultra-low power design
•  Rich analog peripherals
•  Multiple communication interfaces
•  High-reliability storage
•  Extensive software ecosystem support

As a result, it has become a popular MCU choice for industrial equipment, intelligent sensors, and portable electronic products.

2. STM32L151RCT6 Core Specifications

• MCU Core: ARM Cortex-M3 32-bit
• Maximum Clock Frequency: 32 MHz
• Flash Memory: 256 KB
• SRAM: 32 KB
• Operating Voltage: 1.65V ~ 3.6V
• Package Type: LQFP
• Operating Temperature: -40°C ~ +85°C

3. Ultra-Low Power Advantages

The key selling point of the STM32L151RCT6 is its low-power performance.
In IoT devices and battery-powered equipment, MCU standby power consumption directly affects product battery life. The STM32L1 series is optimized for low-power applications, offering multiple power-saving modes:

• Sleep Mode: CPU halted, but peripherals remain active.
• Stop Mode: Most high-speed clocks are disabled, only essential functions retained, significantly reducing power consumption.
• Standby Mode: Ideal for long-term standby applications.

With proper software power management, battery life can be substantially extended.

4. Rich Peripheral Resources

The STM32L151RCT6 not only excels in low power consumption but also features abundant on-chip resources, reducing the need for external components and improving system integration.

(1) Analog Functions

• On-chip integrated features include: 12-bit ADC, dual-channel DAC, and ultra-low-power comparator.
• These functions can be directly connected to temperature sensors, light sensors, battery monitoring circuits, and industrial analog signal acquisition modules, minimizing the need for external ADCs or signal processing chips.

(2) Communication Interfaces

The STM32L151RCT6 supports multiple communication protocols:

UART / USART
Commonly used for:

• GPS modules
• Bluetooth modules
• Industrial equipment communication

SPI
Suitable for high-speed data transmission:

• Flash memory
• LCD display
• Sensor module

I²C
Suitable for low-speed peripheral devices:

• EEPROM
• Temperature and humidity sensor
• RTC clock chip

USB
Supports USB communication, suitable for:

• Data transfer devices
• Parameter configuration interface
• Industrial maintenance tools

5. Typical Application Areas of STM32L151RCT6

① Smart Meters and Energy Management

Thanks to its low power consumption and rich ADC resources, the STM32L151RCT6 is highly suitable for:

•  Smart electricity meters
•  Water meters
•  Gas meters
•  Battery management devices

Advantages:

•  Long operational life
•  Precise data acquisition
•  Low maintenance cost

② Industrial Control Equipment

Industrial equipment typically requires:

•  Stable operation
•  Support for multiple interfaces
•  Long product lifecycle

The STM32L151RCT6 can be used in:

•  PLC auxiliary control modules
•  Industrial sensors
•  Data acquisition terminals
•  Control panels

③ IoT Devices

With the growing number of IoT devices, demand for low-power MCUs continues to rise.
The STM32L151RCT6 can be paired with:

•  LoRa modules
•  NB-IoT modules
•  Bluetooth modules

Enabling applications such as:

•  Environmental monitoring
•  Smart agriculture
•  Remote-controlled devices

④ Portable Medical Devices

Its low power consumption and analog signal acquisition capabilities make it ideal for:

•  Blood glucose monitoring devices
•  Health monitoring devices
•  Portable medical instruments

6. Analysis of Design Advantages of STM32L151RCT6

① Reducing System Cost
The highly integrated MCU can reduce:
External ADC
External communication chips
Independent memory
Lowering the BOM cost.
② Extending Product Lifecycle
Low power consumption design reduces:
Battery replacement frequency
Equipment maintenance cost
③ Mature Software Ecosystem
STM32 has comprehensive software support:

STM32CubeMX
HAL library
Rich development cases
A large number of third-party resources
Facilitates engineers to develop quickly.

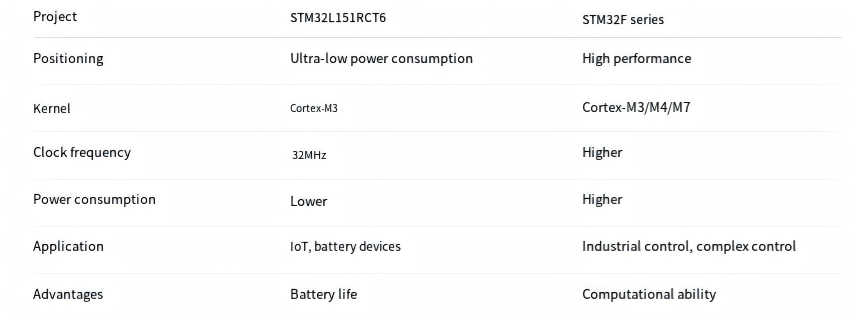

7. Comparison between STM32L151RCT6 and STM32F series MCUs

Summary

STM32L151RCT6 is a Cortex-M3 MCU that combines performance, power consumption and rich peripheral features. With a 32MHz main frequency, 256KB Flash, abundant communication interfaces and ultra-low power consumption characteristics, it is highly suitable for intelligent instruments, industrial control, IoT devices and battery-powered products.
For embedded projects that require long-term stable operation, low power consumption and high reliability, STM32L151RCT6 remains a competitive MCU solution.
