STM8S003F3P6 8-bit Microcontroller: High-Performance, Low-Power, and Cost-Effective MCU Solution

Introduction

The STM8S003F3P6 is an 8-bit microcontroller packaged in a TSSOP20, featuring 8 KB of flash program memory and integrated true data EEPROM. It operates at a maximum frequency of 16 MHz and is capable of functioning in industrial environments ranging from -40°C to +85°C. It offers advantages such as performance, robustness, and reduced system costs. Additionally, it includes an internal clock oscillator, independent watchdog timer, clock security system, and undervoltage reset function. Its I/O interface is highly robust, making it suitable for applications such as motor control, home appliances, industrial control, and general embedded systems.
This article will provide a detailed description of the characteristics, application examples, and working principles of the STM8S003F3P6.

Key features

Core

• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set

Memories

• Program memory:8 Kbytes Flash;dataretention20 years at 55 °C after 100 cycles
• RAM: 1 Kbytes
• 128 bytes true data EEPROM with up to 100,000 write/erase cycles

Clock, reset and supply management

• 2.95 to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources:
• Low power crystal resonator oscillator
• External clock input
• Internal, user-trimmable 16 MHz RC
• Internal low power 128 kHz RC
• Clock security system with clock monitor
• Power management:- Low power modes (wait, active-halt, halt)- Switch-off peripheral clocks individually
• Permanentlyactive, low consumptionpower-onand power-down reset

Interrupt management

• Nested interrupt controller with 32 interrupts
• Up to 27 external interrupts on 6 vectors

Timers

• Advanced control timer: 16-bit, 4 CAPCOMchannels, 3 complementary outputs, dead-timeinsertion and flexible synchronization
• 16-bit general purpose timer, with 3 CAPCOMchannels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wake-up timer
• Window watchdog and independent watchdogtimers

Communications interfaces

• UART with clock output for synchronousoperation, Smartcard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I2C interface up to 400 Kbit/s

Analog to digital converter (ADC)

• 10-bit, ±1 LSB ADC with up to 5 multiplexedchannels, scan mode and analog watchdogI/Os
• Up to 28 I/Os on a 32-pin package including 21high sink outputs
• Highly robust I/O design, immuneagainst currentinjection

Development support

• Embeddedsingle wireinterface module(SWIM)for fast on-chip programming and non intrusivedebugging

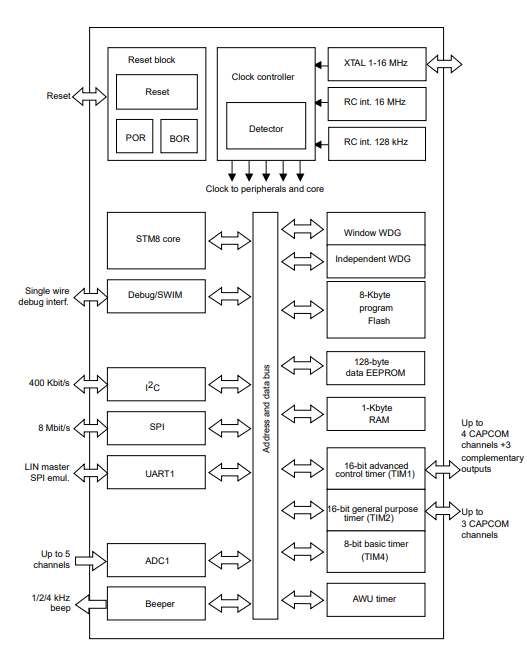

Working Principle

Core Functions & System Operation

1. Core Architecture: It adopts an 8-bit STM8 core based on Harvard architecture, featuring separate program and data buses, enabling simultaneous access to instructions and data, thereby enhancing execution efficiency.
2. Storage System Collaboration: Flash program memory, EEPROM, and RAM work together to form the MCU's data processing and storage system, providing rapid access capabilities while ensuring long-term data reliability.
3. Clock and Reset Management:
Clock System: Four main clock sources

• Internal 16 MHz RC oscillator (user-tunable)
• External low-power crystal oscillator
• External clock input
• Internal 128 kHz low-power RC oscillator

Clock Security System (CSS): Continuously monitors the stability of the main clock to prevent system malfunction due to clock anomalies.
Reset Circuit: Includes power-on reset, power-down reset, watchdog reset, etc., ensuring automatic system recovery under abnormal conditions.
4. Power Management and Collaboration: The chip operates in multiple low-power modes in coordination to meet the energy consumption requirements of different application scenarios, and automatically switches between these modes based on task demands, achieving a balance between performance and power consumption.
5. System Security and Reliability:

• Independent Watchdog Timer (IWDG): Driven by an independent clock source, it prevents software from freezing.
• Window Watchdog Timer (WWDG): Prevents premature or late feeding of the watchdog, enhancing operational reliability.
• Brown-Out Reset (BOR): Automatically resets when the voltage is too low, preventing abnormal program execution.

Peripheral Functional Operation

1. Timer System:
The STM8S003F3P6 integrates multiple timer modules internally: advanced control timer, general-purpose timer, basic timer, and auto-wake-up timer. Each timer can operate independently or work in synchronization for multitasking scheduling or precise control.
2. Communication Interfaces:
UART, SPI interface, and I²C interface. These communication modules enable the STM8S003F3P6 to function as a system master or slave node, working in conjunction with various peripherals.
3. Analog Module (ADC)
It is commonly used in scenarios such as temperature, voltage, and current detection for analog signal conversion.
4. Input/Output Interface (I/O)
The I/O ports can be flexibly configured as digital inputs, outputs, PWM, or peripheral function pins.
5. Debugging and Development Support
It facilitates rapid development, online debugging, and mass production programming.

Application

1. Household appliance control
2. Industrial control
3. Sensor node
4. Smart lighting
5. Consumer electronics

The STM8S003F3P6 achieves a balance between low power consumption and high reliability through a high-performance 8-bit core, flexible memory and clock system, and complete communication and timing functions. All modules operate in coordination through the system bus.

Conclusion

The STM8S003F3P6 features high performance, low power consumption, comprehensive functionality, and convenient development, making it an ideal solution for cost-sensitive control systems. It performs exceptionally well in application fields such as home appliance control and industrial control.
