The differences between BC817-25, 215 and 2N3904: parameter comparison, application scenarios and substitution suggestions

BC817-25,215 belongs to the BC817 series and is a general-purpose NPN small-signal transistor. The "-25" indicates a moderately high gain grade (hFE 160-400), while "215" is just a packaging code and does not affect performance.

Understanding BC817-25,215

Features and advantages

• High current
• Three current gain selections

Typical electrical parameters

• Vceo: 45 V
• Ic (maximum collector current): 500 mA
• Pd (power consumption): Approximately 250 mW (depending on heat dissipation conditions)
• Vce(sat): Low saturation voltage, suitable for switching applications

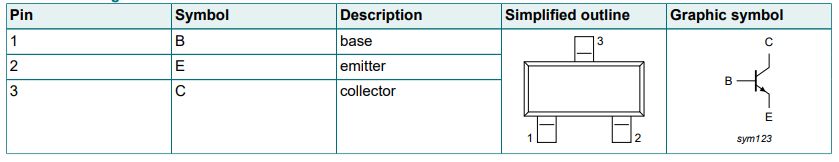

Pin information

Absolute Maximum Rating Systems

Applications

• MCU / Logic Circuit Low-end Switch
• Signal Amplification (Low Power)
• Relay, Beeper, LED Driver
• Consumer Electronics, Industrial Control Board

Alternative Models

1. BC817-16 / BC817-40 (Same Series, Different Gain)
2. 2N3904 (Parameters Close, but Packaging/Pin Need Verification)
3. MMBT3904 (SOT-23 Packaging)

The differences between BC817-25, 215 and 2N3904

The parameters of 2N3904 and BC817-25, 215 are similar, and they can be used as alternative models. However, before using them, the package needs to be checked. The following explains in detail the differences between BC817-25, 215 and 2N3904, making it easier to select.

1. Drive capability

• BC817-25: 500 mA
• 2N3904: 200 mA

For driving relays, buzzers, and LED strings, BC817 is more stable.

2. Gain stability

• BC817-25 is a stepped model (-25), with a clear hFE range of 160-400
• 2N3904 is usually not stepped, and there is greater batch variation

For gain-sensitive designs, BC817-25 is more controllable

3. Packaging and heat dissipation

BC817-25: SOT-23

• Small in size, suitable for mass production PCB
• Heat dissipation relies on copper foil

2N3904: TO-92

• Single tube heat dissipation capacity is stronger

SMD assembly can choose BC817, while experiments or maintenance can choose 2N3904

4. Application focus is different

BC817-25 is suitable for: MCU IO port driving load, low-end switch of power/control board, industrial control, consumer electronics
2N3904 is suitable for: small signal amplification in audio/radio frequency, pre-amplification, bias analog circuits, teaching, prototype design

---

Notes: In the following situations, the two models cannot be directly replaced

1. Current > 200 mA → 2N3904 is unsafe
2. It is necessary to clarify hFE → 2N3904 is unstable
3. Different packages → Pins & PCB are incompatible

Overall, if the circuit involves large currents or is used as a driver, 2N3904 cannot fully replace BC817-25. It is recommended to use BC817-25 or the same-level SMD model first.
