Understanding the value of W29N01HVSINA during the rising trend of storage chips

Globally, the demand side is mainly driven by the rapid expansion of AI, data centers, cloud computing, and high-performance storage, while the supply side is constrained by cautious production capacity layout and the migration of advanced processes. Together, these factors have led to a persistent supply-demand imbalance in NAND Flash. In such a market context, industrial-grade NAND Flash devices like Winbond's W29N01HVSINA are particularly important.

W29N01HVSINA is a 1Gb NAND Flash memory specifically designed for embedded systems with limited space, pins, and power. This device is suitable for code mapping to RAM, solid-state applications, and storing media data such as voice, video, text, and photos. The device operates under a single 2.7V to 3.6V power supply, with a working current as low as 25 milliamperes and a CMOS standby current as low as 10 microamperes.

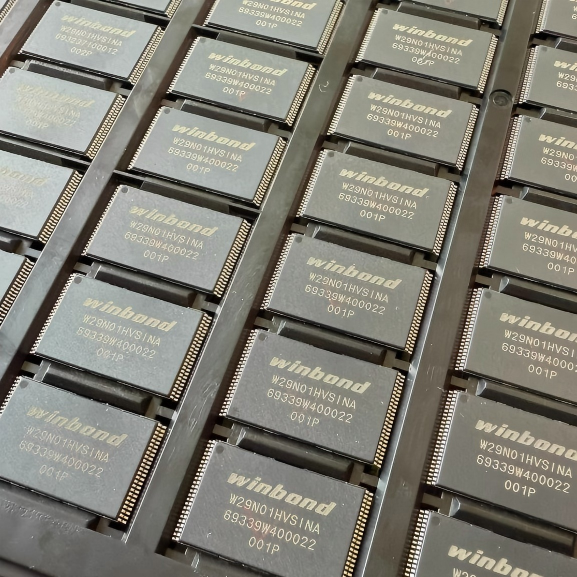

Get to know W29N01HVSINA

Basic Information

• Storage type: SLC NAND Flash
• Capacity: 1Gb (128MB)
• Interface: Parallel NAND interface
• Operating voltage: 2.7V ~ 3.6V
• Package: TSOP-48
• Temperature rating: Industrial grade (-40°C ~ +85°C)

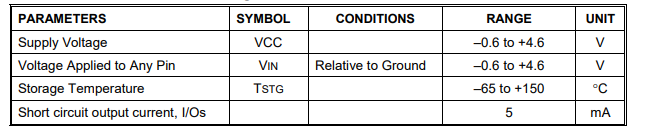

Absolute Maximum Ratings

Core Features and Advantages

• Low Voltage and Low Power Design: Supports single power supply of 2.7V - 3.6V, with a working current as low as 25 mA and a standby current of only 10 µA.
• Structured Storage Organization: A total of approximately 138,412,032 bytes of storage space, divided into 1024 erase blocks, each 64 pages, with each page containing 2048 bytes of data + 64 bytes of backup area (for error correction and maintenance).
• Standard NAND Interface: Utilizes a multiplexed 8-bit bus and communicates efficiently with the host controller device through control signals such as CLE, ALE, #CE, #RE, #WE, #WP, and RY/#BY, enabling data reading and writing as well as status monitoring.

Notes: These features make the W29N01HVSINA perform exceptionally well in code mapping to RAM, in solid-state storage applications, and in the storage of medium-capacity data such as voice, video, text, and images. Compared to traditional NOR Flash, it is more competitive in terms of capacity cost, erase life, and other aspects.

Use W29N01HVSINA
Working principle

W29N01HVSINA is a NAND Flash memory based on the SLC architecture. It stores data through the NAND Flash mechanism of page reading and block erasing. It cooperates with the main controller to complete ECC and bad block management, providing a stable, low-power, and highly reliable storage solution in embedded systems. It is mainly divided into the following parts:

1. Storage and Organization Principles
2. Interface and Control Principles
3. Read Operation Principles
4. Write Operation Principles
5. Erase Principles
6. Error Management and Reliability Mechanisms
7. Typical Working Modes in the System

Typical Applications

• Industrial Control Equipment
• Embedded System / Expansion Storage for MCU
• Intelligent Instruments
• Communication Equipment
• Printers, Scanning Devices
• IoT Gateways / Industrial HMI

Why Does the Value of Industrial Storage Solutions Stand Out During the Price Increase Trend?

The impact of storage costs on end products is very direct:

• Embedded equipment manufacturers are under pressure from rising NAND Flash costs, and the order placement cost will increase.
• For projects with large-scale production, it is necessary to lock in long-term supply in advance to stabilize costs and avoid risks.
• Industrial-grade NAND Flash outperforms high-density QLC/TLC devices in data reliability and has long-term value in key applications. Even during the price increase cycle, it is particularly important.

FAQ

Q1: Is W29N01HVSINA suitable for running code directly?
No, NAND is generally used for data storage and requires the cooperation of RAM/controller.
Q2: Is W29N01HVSINA NOR or NAND?
It is NAND Flash (SLC), not NOR.
