W25R256JWEIQ: High-performance SPI NOR Flash for Low-Power Embedded Systems

With the rapid development of IoT, industrial control, smart terminals, and in-vehicle electronic devices, systems have placed higher demands on memory: not only do they require faster data reading speeds, but also lower power consumption, smaller packaging, and higher security. Under such market demands, Winbond's W25R256JWEIQ has become a popular choice in the low-power SPI NOR Flash field.

Description

W25R256JW is a 256Mbit low-power SPI NOR Flash designed for systems with limited space, pins, and power consumption.

• Operating voltage: 1.7V – 1.95V (1.8V low voltage)
• Supports SPI / Dual / Quad I/O, up to 104MHz
• Supports XIP (directly executable code)
• Ultra-low power consumption: Standby current as low as 1µA
• Built-in unique ID, security registers, and RPMC security mechanism

Main features

• Supports Standard / Dual / Quad SPI
• Supports 3-byte/4-byte address mode
• Supports software reset
• Quad SPI equivalent rate up to 416MHz
• Erasing life over 100,000 times
• Data retention time over 20 years
• Operating temperature: -40°C ~ +85°C
• Supports 4KB / 32KB / 64KB erasing
• Up to 256 Bytes per page can be programmed
• Supports erase suspension and recovery functions

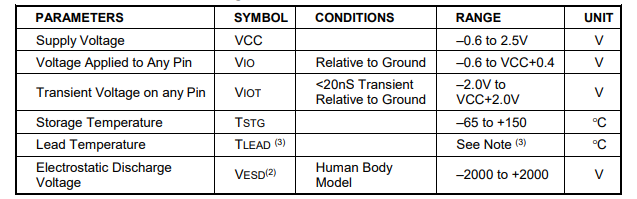

Absolute Maximum Ratings

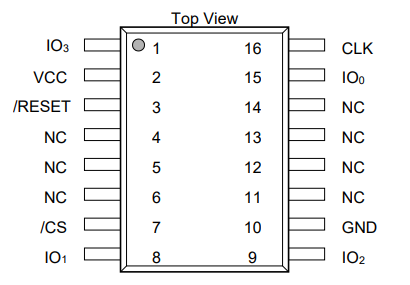

pin configuration

The W25R256JWEIQ adopts a small-sized WSON-8 package, which is highly suitable for high-density PCB designs.
Its advantages include:

• Saving PCB space
• Reducing system power consumption
• Increasing data reading speed
• Enhancing system security
• Lowering overall design complexity

Working principle

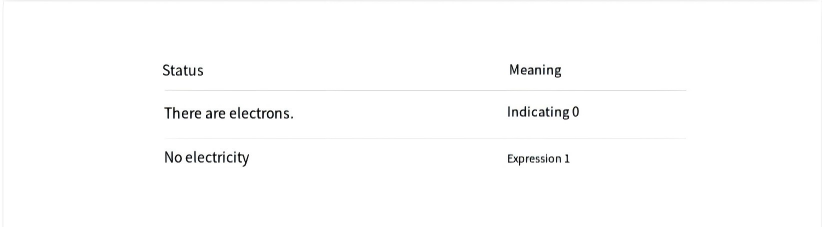

The W25R256JWEIQ is mainly used for storing program codes, configuration parameters, and various data. It communicates with MCUs, MPUs, or SoCs via SPI to achieve data reading, writing, and erasing. The Flash is composed of a large number of floating-gate transistors, and each storage unit represents 0 or 1 by whether it stores electrons.

Typical application

The W25R256JWEIQ is widely used in:

• IoT modules Industrial Automation
• Smart Home
• Routers and communication equipment
• Vehicle-mounted electronics
• HMI human-machine interface
• MCU/MPU boot memory
• AI edge devices

Summary

For applications that need to balance performance, power consumption and cost, the W25R256JWEIQ is a reliable and scalable SPI NOR Flash solution. As embedded systems evolve towards lower power consumption, higher speed and greater security, the W25R256JWEIQ, with its 1.8V low-voltage design, high-speed Quad SPI performance and enhanced security mechanism, is becoming an important choice for many electronic design engineers.
