    Microchip Technology MAQ5300-1.8YML-T5VAO

    Part No.:
    MAQ5300-1.8YML-T5VAO
    Manufacturer:
    Microchip Technology
    Category:
    Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
    Package:

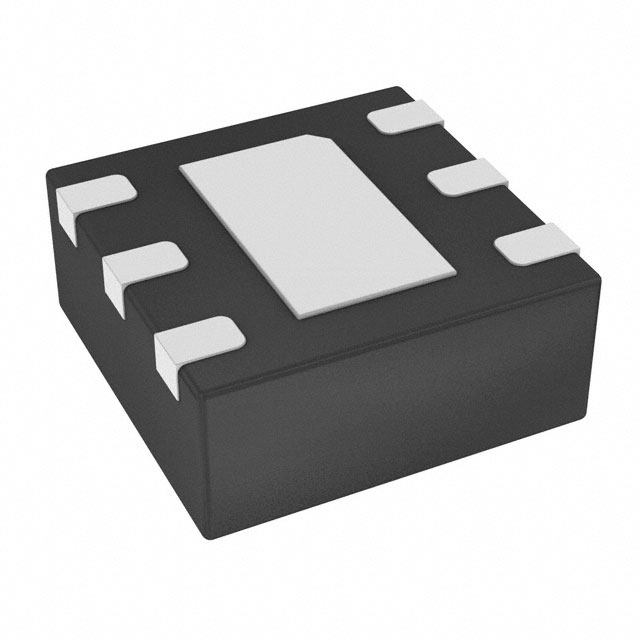

    6-VDFN Exposed Pad, 6-MLF®
    Datasheet:
    KATY Electronic Technology Co., LTDMAQ5300-1.8YML-T5VAO.pdf
    Description:
    IC REG LINEAR 1.8V 300MA 6DFN
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Microchip Technology
    Series:
    -
    Package/Case:
    6-VDFN Exposed Pad, 6-MLF®
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    Output Configuration:
    Positive
    Output Type:
    Fixed
    Number of Regulators:
    1
    Voltage - Input (Max):
    5.5V
    Voltage - Output (Min/Fixed):
    1.8V
    Voltage - Output (Max):
    -
    Voltage Dropout (Max):
    0.2V @ 300mA
    Current - Output:
    300mA
    Current - Quiescent (Iq):
    120 µA
    Current - Supply (Max):
    -
    PSRR:
    65dB ~ 42dB (1kHz ~ 20kHz)
    Control Features:
    Enable
    Protection Features:
    Over Current, Over Temperature
    Operating Temperature:
    -40°C ~ 125°C
    Grade:
    Automotive
    Qualification:
    AEC-Q100
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    6-DFN (2x2)

    1. How to order MAQ5300-1.8YML-T5VAO on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that MAQ5300-1.8YML-T5VAO is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the MAQ5300-1.8YML-T5VAO. All suppliers must pass our qualification reviews before they can publish their products including MAQ5300-1.8YML-T5VAO on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of MAQ5300-1.8YML-T5VAO products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the MAQ5300-1.8YML-T5VAO price and inventory displayed accurate?

    The price and inventory of MAQ5300-1.8YML-T5VAO fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of MAQ5300-1.8YML-T5VAO?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MAQ5300-1.8YML-T5VAO we delivered, we will accept the replacement or return of the MAQ5300-1.8YML-T5VAO only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of MAQ5300-1.8YML-T5VAO.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as MAQ5300-1.8YML-T5VAO pin diagram, MAQ5300-1.8YML-T5VAO datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image MAQ5300-3.0YML-TRVAO MAQ5300-1.8YML-TRVAO MAQ5300-2.85YML-TRVAO MAQ5300-3.3YML-TRVAO MAQ5300-1.5YML-TRVAO
    Part Number MAQ5300-3.0YML-TRVAO MAQ5300-1.8YML-TRVAO MAQ5300-2.85YML-TRVAO MAQ5300-3.3YML-TRVAO MAQ5300-1.5YML-TRVAO
    Manufacturer Microchip Technology Microchip Technology Microchip Technology Microchip Technology Microchip Technology
    Series - - - - -
    Package/Case 6-VDFN Exposed Pad, 6-MLF® 6-VDFN Exposed Pad, 6-MLF® 6-VDFN Exposed Pad, 6-MLF® 6-VDFN Exposed Pad, 6-MLF® 6-VDFN Exposed Pad, 6-MLF®
    Packaging Tape & Reel (TR) Cut Tape (CT) Cut Tape (CT) Tape & Reel (TR) Tape & Reel (TR)
    Product Status Active Active Active Active Active
    Output Configuration Positive Positive Positive Positive Positive
    Output Type Fixed Fixed Fixed Fixed Fixed
    Number of Regulators 1 1 1 1 1
    Voltage - Input (Max) 5.5V 5.5V 5.5V 5.5V 5.5V
    Voltage - Output (Min/Fixed) 3V 1.8V 2.85V 3.3V 1.5V
    Voltage - Output (Max) - - - - -
    Voltage Dropout (Max) 0.2V @ 300mA 0.2V @ 300mA 0.2V @ 300mA 0.2V @ 300mA 0.2V @ 300mA
    Current - Output 300mA 300mA 300mA 300mA 300mA
    Current - Quiescent (Iq) 120 µA 120 µA 120 µA 120 µA 120 µA
    Current - Supply (Max) - - - - -
    PSRR 65dB ~ 42dB (1kHz ~ 20kHz) 65dB ~ 42dB (1kHz ~ 20kHz) 65dB ~ 42dB (1kHz ~ 20kHz) 65dB ~ 42dB (1kHz ~ 20kHz) 65dB ~ 42dB (1kHz ~ 20kHz)
    Control Features Enable Enable Enable Enable Enable
    Protection Features Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature
    Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
    Grade Automotive Automotive Automotive Automotive Automotive
    Qualification AEC-Q100 AEC-Q100 AEC-Q100 AEC-Q100 AEC-Q100
    Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
    Supplier Device Package 6-DFN (2x2) 6-DFN (2x2) 6-DFN (2x2) 6-DFN (2x2) 6-DFN (2x2)
