    NKK Switches P2012

    Part No.:
    P2012
    Manufacturer:
    NKK Switches
    Category:
    Toggle Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDP2012.pdf
    Description:
    SWITCH TOGGLE SPDT 10A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    NKK Switches
    Series:
    P
    Packaging:
    Bulk
    Product Status:
    Obsolete
    Mounting Type:
    Panel Mount
    Circuit:
    SPDT
    Switch Function:
    On-On
    Current Rating (Amps):
    10A (AC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    -
    Actuator Type:
    Standard Round with Cap
    Actuator Length:
    13.00mm
    Illumination:
    Non-Illuminated
    Illumination Type, Color:
    -
    Illumination Voltage (Nominal):
    -
    Termination Style:
    Solder Lug
    Panel Cutout Dimensions:
    Circular - 6.35mm Dia
    Bushing Thread:
    M6 x 0.75
    Ingress Protection:
    -
    Features:
    White Cap
    Operating Temperature:
    -10°C ~ 85°C

    1. How to order P2012 on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that P2012 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the P2012. All suppliers must pass our qualification reviews before they can publish their products including P2012 on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of P2012 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the P2012 price and inventory displayed accurate?

    The price and inventory of P2012 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of P2012?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the P2012 we delivered, we will accept the replacement or return of the P2012 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of P2012.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as P2012 pin diagram, P2012 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

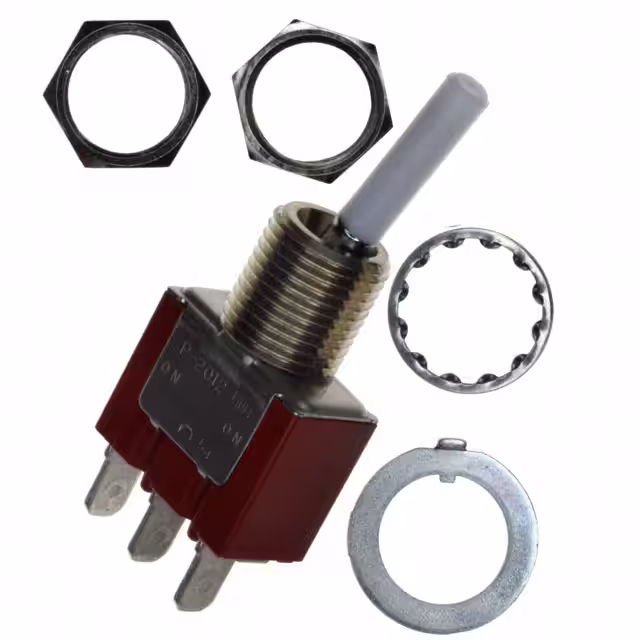

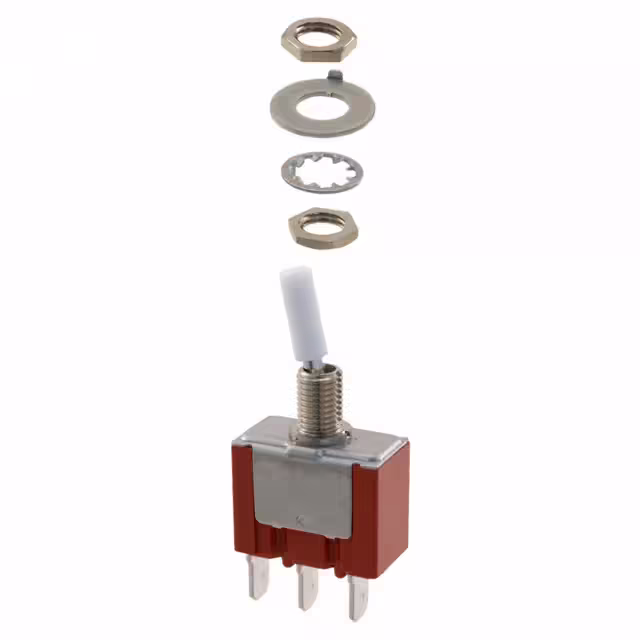

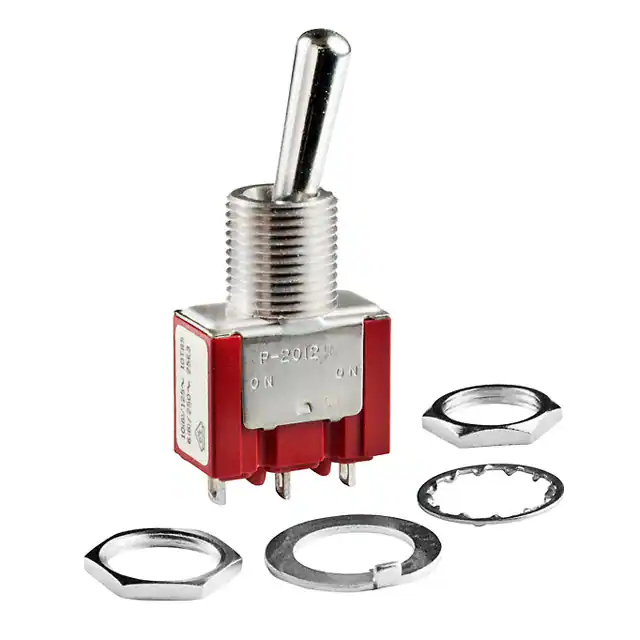

    Image P2012P P2012B P2012BZ P2012Z P2012DZ
    Part Number P2012P P2012B P2012BZ P2012Z P2012DZ
    Manufacturer NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches
    Series P P P P P
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
    Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
    Circuit SPDT SPDT SPDT SPDT SPDT
    Switch Function On-On On-On On-On On-On On-On
    Current Rating (Amps) 10A (AC) 10A (AC) 10A (AC) 10A (AC) 10A (AC)
    Voltage Rating - AC 125 V 125 V 125 V 125 V 125 V
    Voltage Rating - DC - - - - -
    Actuator Type Standard Round with Cap Standard Round Standard Round Standard Round with Cap Standard Round with Cap
    Actuator Length 13.00mm 17.50mm 17.50mm 13.00mm 19.00mm
    Illumination Non-Illuminated Non-Illuminated Non-Illuminated Non-Illuminated Non-Illuminated
    Illumination Type, Color - - - - -
    Illumination Voltage (Nominal) - - - - -
    Termination Style PC Pin Solder Lug Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm)
    Panel Cutout Dimensions Circular - 6.35mm Dia Circular - 12.50mm Dia Circular - 12.50mm Dia Circular - 6.35mm Dia Circular - 12.50mm Dia
    Bushing Thread M6 x 0.75 M12 x 1 M12 x 1 M6 x 0.75 M12 x 1
    Ingress Protection - - - - -
    Features White Cap - - White Cap White Cap
    Operating Temperature -10°C ~ 85°C -10°C ~ 85°C -10°C ~ 85°C -10°C ~ 85°C -10°C ~ 85°C
