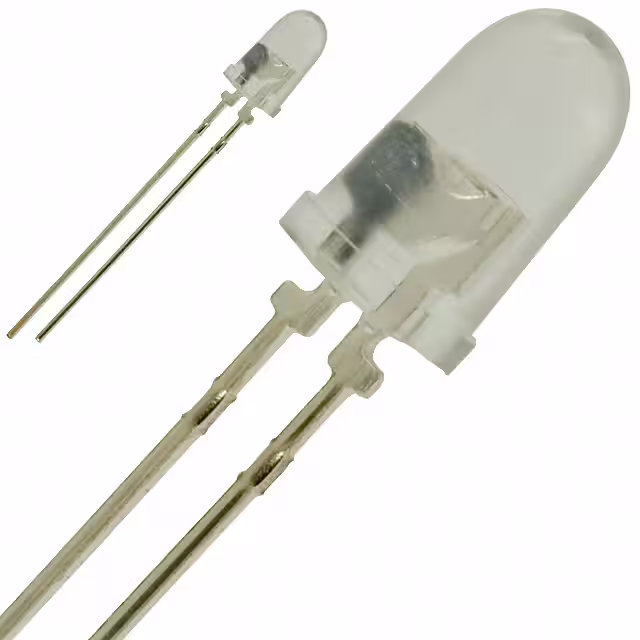

    Stanley Electric Co H-1000L

    Part No.:
    H-1000L
    Manufacturer:
    Stanley Electric Co
    Category:
    LED Indication - Discrete
    Package:
    Radial
    Datasheet:
    KATY Electronic Technology Co., LTDH-1000L.pdf
    Description:
    LED RED CLEAR 5MM ROUND T/H
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Stanley Electric Co
    Series:
    -
    Package/Case:
    Radial
    Packaging:
    Bulk
    Product Status:
    Obsolete
    Color:
    Red
    Configuration:
    Standard
    Lens Color:
    Colorless
    Lens Transparency:
    Clear
    Millicandela Rating:
    1000mcd
    Lens Style:
    Round with Domed Top
    Lens Size:
    5mm, T-1 3/4
    Voltage - Forward (Vf) (Typ):
    1.8V
    Current - Test:
    20mA
    Viewing Angle:
    10°
    Mounting Type:
    Through Hole
    Wavelength - Dominant:
    647nm
    Wavelength - Peak:
    660nm
    Features:
    -
    Grade:
    -
    Qualification:
    -
    Supplier Device Package:
    5mm Round
    Size / Dimension:
    -

    1. How to order H-1000L on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that H-1000L is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the H-1000L. All suppliers must pass our qualification reviews before they can publish their products including H-1000L on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of H-1000L products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the H-1000L price and inventory displayed accurate?

    The price and inventory of H-1000L fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of H-1000L?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the H-1000L we delivered, we will accept the replacement or return of the H-1000L only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of H-1000L.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as H-1000L pin diagram, H-1000L datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

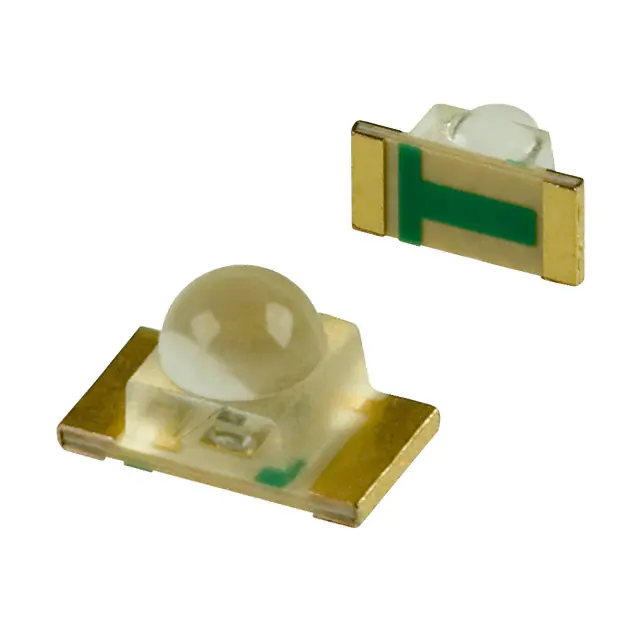

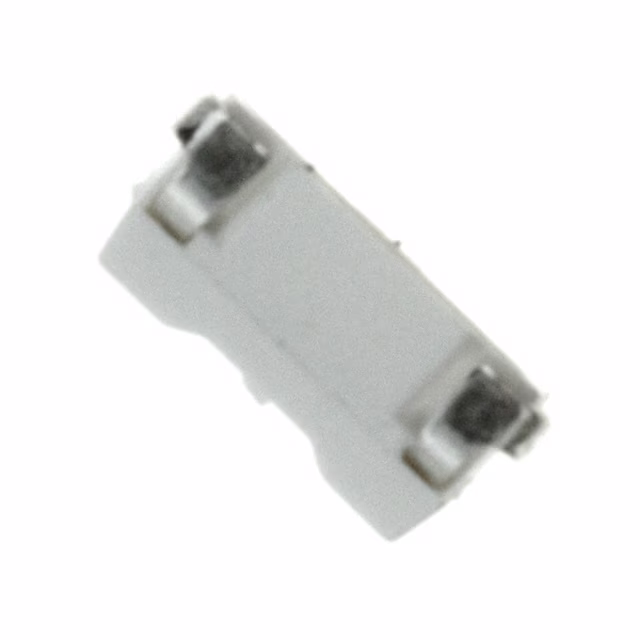

    Image HPG1105W-TR HKW1142LT-TR HAY1105W-TR HDB1105W-TR HDG1105W-TR
    Part Number HPG1105W-TR HKW1142LT-TR HAY1105W-TR HDB1105W-TR HDG1105W-TR
    Manufacturer Stanley Electric Co Stanley Electric Co Stanley Electric Co Stanley Electric Co Stanley Electric Co
    Series 1105W - 1105W 1105W 1105W
    Package/Case 1206 (3216 Metric) 2-SMD, No Lead 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric)
    Packaging Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
    Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
    Color Green White Yellow Blue Green
    Configuration Standard Standard Standard Standard Standard
    Lens Color Colorless Yellow Colorless Colorless Colorless
    Lens Transparency Clear Diffused Clear Clear Clear
    Millicandela Rating 30mcd 1720mcd 20mcd 70mcd 140mcd
    Lens Style Round with Domed Top Rectangle with Flat Top Round with Domed Top Round with Domed Top Round with Domed Top
    Lens Size 1.60mm Dia 2.15mm x 0.60mm 1.60mm Dia 1.60mm Dia 1.60mm Dia
    Voltage - Forward (Vf) (Typ) 2.1V 3.2V 2.2V 3.3V 3.3V
    Current - Test 20mA 20mA 20mA 10mA 10mA
    Viewing Angle 40° 110°, 105° 40° 40° 40°
    Mounting Type Surface Mount Surface Mount, Right Angle Surface Mount Surface Mount Surface Mount
    Wavelength - Dominant 567nm - 590nm 470nm 525nm
    Wavelength - Peak 560nm - 580nm 467nm 522nm
    Features - - - - -
    Grade - - - - -
    Qualification - - - - -
    Supplier Device Package 3216 Type - 3216 Type - SMD
    Size / Dimension 3.20mm L x 1.60mm W 2.50mm L x 1.20mm W 3.20mm L x 1.60mm W 3.20mm L x 1.60mm W 3.20mm L x 1.60mm W
