Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
FSP250-H24-A54AC/DC CONVERTER 54V 150W |
63 |
|
![]() Datasheet |
FSP250-H24 A (250W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 4.63 A | - | - | - | - | - | 150W (250W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (101.6mm x 50.8mm x 32.5mm) |
![]() |
FSP250-H24-A24AC/DC CONVERTER 24V 150W |
55 |
|
![]() Datasheet |
FSP250-H24 A (250W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 10.42 A | - | - | - | - | - | 150W (250W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (101.6mm x 50.8mm x 32.5mm) |
![]() |
GSM11-24AAGAC/DC CONVERTER 24V 11W |
167 |
|
![]() Datasheet |
GSM11 (11W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 460 mA | - | - | - | - | - | 11W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.56" H (57.9mm x 50.8mm x 14.3mm) |
![]() |
LFMWLP75-1304AC/DC CONVERTER 48V 75W |
63 |
|
![]() Datasheet |
MWLP75 (75W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 1.56 A | - | - | - | - | - | 75W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
![]() |
FSP350-F35-A54AC/DC CONVERTER 54V 200W |
303 |
|
![]() Datasheet |
FSP350-F35 A (350W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 200W (351W Forced Air) | ITE (Commercial) | 500 V | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.4mm) |
![]() |
OPS3X5-350-12-A-1-CUAC/DC CONVERTER 12V 200W |
250 |
|
![]() Datasheet |
OPS3X5-350 (350W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 29.17 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 2.00" W x 1.16" H (127.0mm x 50.8mm x 29.4mm) |
![]() |

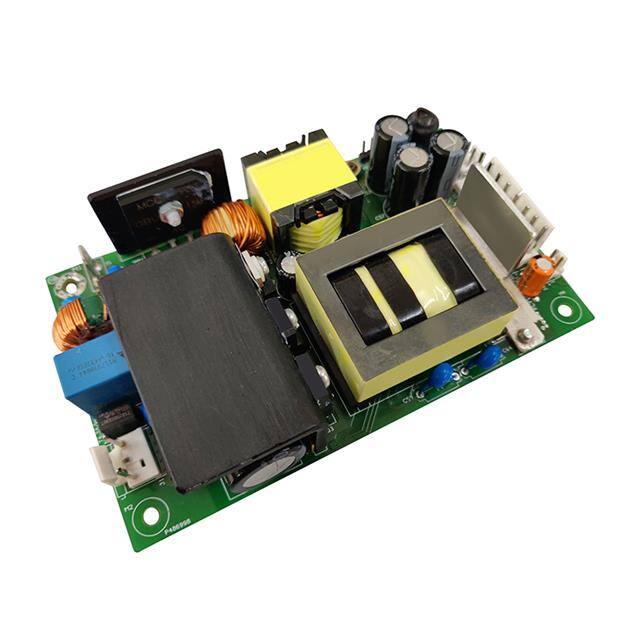

OPS3X5-350-48-A-1-CUAC/DC CONVERTER 48V 200W |
250 |
|
![]() Datasheet |
OPS3X5-350 (350W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 7.29 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 2.00" W x 1.16" H (127.0mm x 50.8mm x 29.4mm) |
![]() |
MB120S15C01AC/DC CONVERTER 15V 99W |
81 |
|
![]() Datasheet |
MB120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 6.6 A | - | - | - | - | - | 99W (120W Forced Air) | Medical | 4 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
![]() |
MB120S18C01AC/DC CONVERTER 18V 99W |
68 |
|
![]() Datasheet |
MB120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 99W (119W Forced Air) | Medical | 4 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
![]() |
OPS3X5-350-24-A-1-CUAC/DC CONVERTER 24V 200W |
250 |
|
![]() Datasheet |
OPS3X5-350 (350W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 14.58 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 2.00" W x 1.16" H (127.0mm x 50.8mm x 29.4mm) |
![]() |
ULP275-1312AC/DC CONVERTER 12V 160W |
28 |
|
![]() Datasheet |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
![]() |

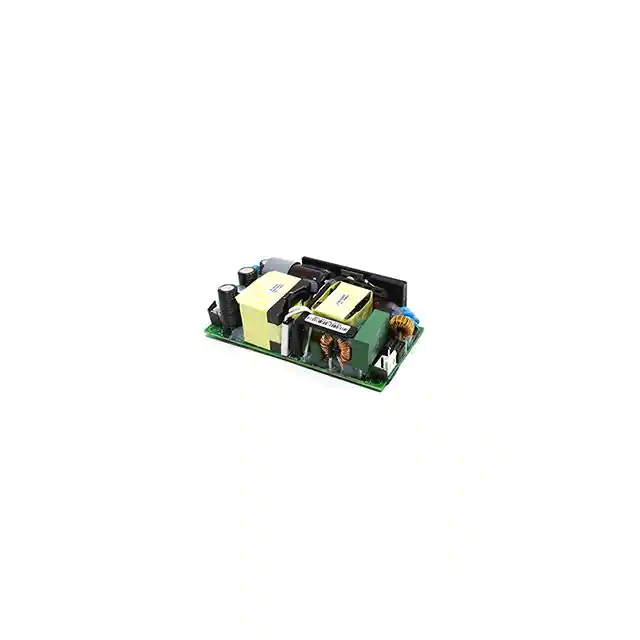

PDAM240-12A-HAC/DC CONVERTER 12V 160W |
41 |
|
![]() Datasheet |
PDAM240 (240W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 20 A | - | - | - | - | - | 160W (240W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 4.10" L x 2.05" W x 1.09" H (104.1mm x 52.1mm x 27.6mm) |
![]() |
GTM962251P22524-FLRAC/DC CONVERTER 24V 19W |
48 |
|
![]() Datasheet |
GTM962251P22524-FLR | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | 19W (29W Forced Air) | ITE (Commercial), Medical | 5.656 kV | -25°C ~ 80°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.45" W x 1.57" H (103.5mm x 62.3mm x 40.0mm) |
|

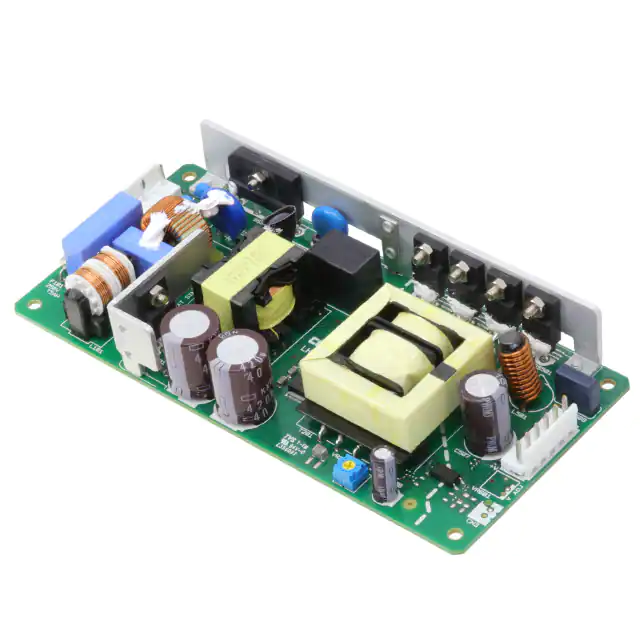

LHA150F-12AC/DC CONVERTER 12V 150W |
128 |
|
![]() Datasheet |
LHA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) |
![]() |
LFMWLT150-1003AC/DC CONVERTER 24V 100W |
72 |
|
![]() Datasheet |
MWLT150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 390 VDC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 5.9 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
![]() |
LFMWLP350-1302AC/DC CONVERTER 15V 180W |
30 |
|
![]() Datasheet |
MWLP350 (350W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 180W (270W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
![]() |
ULP180-0024AC/DC CONVERTER 24V 120W |
73 |
|
![]() Datasheet |
ULP180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 0.75" H (101.6mm x 63.5mm x 19.1mm) |
![]() |
ULP180-1330AC/DC CONVERTER 30V 120W |
67 |
|
![]() Datasheet |
ULP180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) |
![]() |

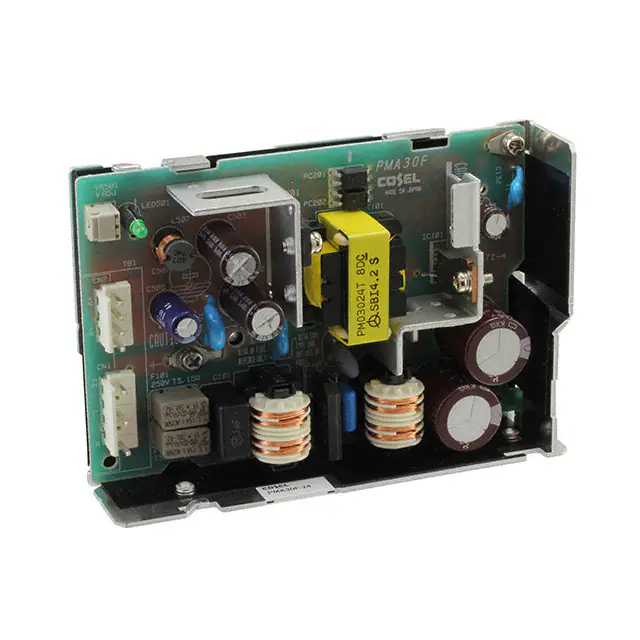

PMA30F-24AC/DC CONVERTER 24V |
102 |
|
![]() Datasheet |
PMA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
![]() |
GTM962252P22524-FAC/DC CONVERTER 24V 19W |
40 |
|
![]() Datasheet |
GTM962252P22524-F | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | 19W (29W Forced Air) | Medical | 5.656 kV | -25°C ~ 80°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.45" W x 1.57" H (103.5mm x 62.3mm x 40.0mm) |
