Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

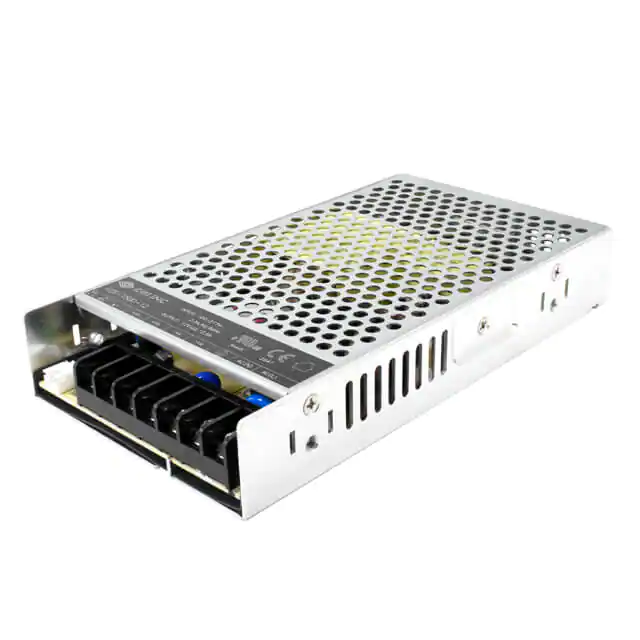

VGS-150D-24-BAC/DC CONVERTER 24V 151W |
168 |
|
![]() Datasheet |
VGS-150D | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
MVA100018AAC/DC CONVERTER 18V 100W |
345 |
|
![]() Datasheet |
MVA100 (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 5.6 A | - | - | - | - | - | 100W (120W Forced Air) | Medical | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.10" H (114.3mm x 63.1mm x 28.5mm) |
![]() |
LMF200-23B24AC/DC CONVERTER 24V 202W |
310 |
|
![]() Datasheet |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
LMF200-23B12AC/DC CONVERTER 12V 200W |
279 |
|
![]() Datasheet |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
LOF225-20B24AC/DC CONVERTER 24V 140W |
1,345 |
|
![]() Datasheet |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 5.83 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
![]() |
LOF225-20B12AC/DC CONVERTER 12V 140W |
1,090 |
|
![]() Datasheet |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 11.67 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
![]() |
LOF225-20B48AC/DC CONVERTER 48V 140W |
212 |
|
![]() Datasheet |
LOF225-20Bxx (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.91 A | - | - | - | - | - | 140W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
![]() |

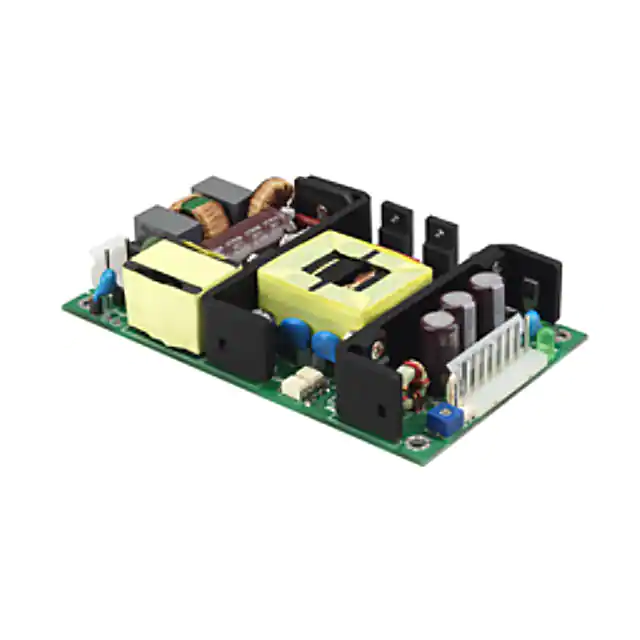

CFM100M090AC/DC CONVERTER 9V 101W |
204 |
|
![]() Datasheet |
CFM100M (100W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 11.2 A | - | - | - | - | - | 101W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
![]() |
CFM100M120AC/DC CONVERTER 12V 101W |
301 |
|
![]() Datasheet |
CFM100M (100W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 101W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
![]() |
LMF350-23B05UHAC/DC CONVERTER 5V 300W |
164 |
|
![]() Datasheet |
LMF350-23BxxUH (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
![]() |
ASM65-240-BNH-0F0AC/DC CONVERTER 24V 65W |
439 |
|
![]() Datasheet |
ASM30 | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C | - | - | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
![]() |
ASM65-150-BNH-0F0AC/DC CONVERTER 15V 65W |
157 |
|
![]() Datasheet |
ASM30 | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4.33 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C | - | - | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
![]() |
MBC40-3000GAC/DC CNVRTR 5.2V 12.5V -12.8V |
0 |
|
![]() Datasheet |
MBC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 6 A | 1 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
MBC40-3003GAC/DC CONVERTER 3.3V 5.2V -12.8V |
0 |
|
![]() Datasheet |
MBC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5.2V | -12.8V | - | - | - | 6 A | 3 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|

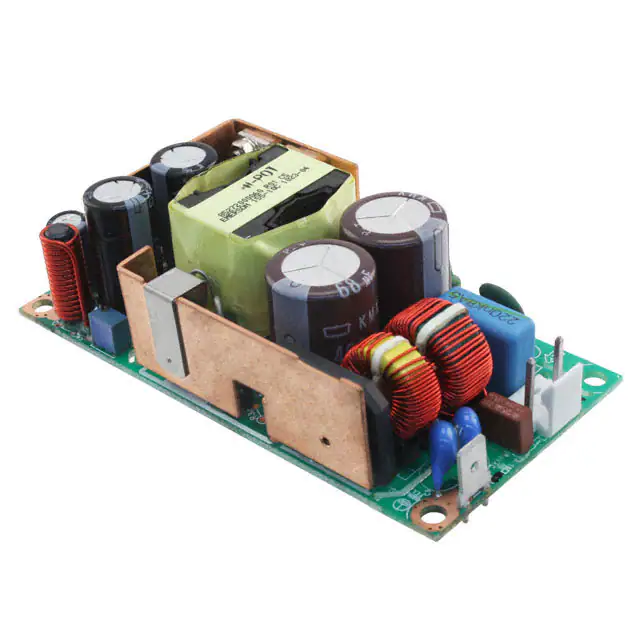

LPS58AC/DC CONVERTER 48V 60W |
208 |
|
![]() Datasheet |
LPS50 (60W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) |
![]() |

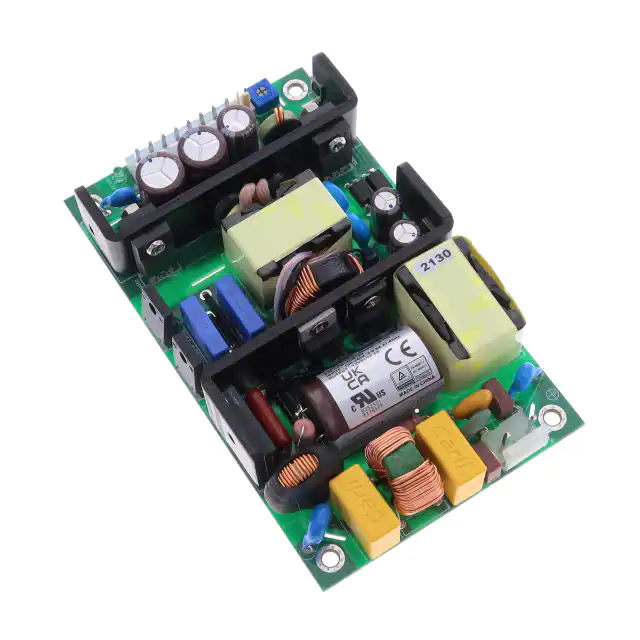

CFM150M480AC/DC CONVERTER 48V 150W |
142 |
|
![]() Datasheet |
CFM150M (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
|
BLP55-1005GAC/DC CONVERTER 5V 55W |
0 |
|
![]() Datasheet |
BLP55 (55W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 55W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.23" H (127.0mm x 76.2mm x 31.2mm) |
![]() |
LDA30F-12-SNAC/DC CONVERTER 12V 30W |
236 |
|
![]() Datasheet |
LDA (30W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.42" L x 2.56" W x 1.42" H (163.0mm x 65.0mm x 36.0mm) |
|
FSA150018AAC/DC CONVERTER 18V 150W |
31 |
|
![]() Datasheet |
FSA150 (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 30.9mm) |
![]() |

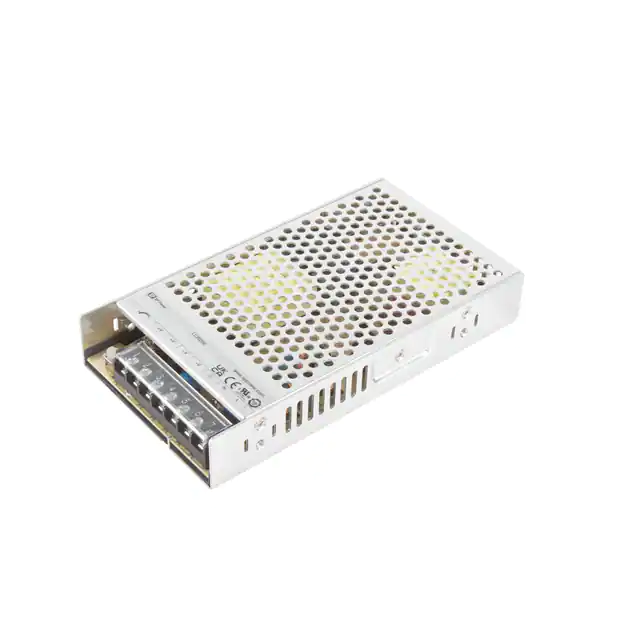

LCW200PS05AC/DC CONVERTER 5V 200W |
29 |
|
![]() Datasheet |
LCW200 (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
