Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGL2W391MELB40CAP ALUM 390UF 20% 450V SNAP TH Nichicon |
2,705 |
|
![]() Datasheet |
LGL | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.8304 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
![]() |
LNT1E223MSECAP ALUM 22000UF 20% 25V SCREW Nichicon |
2,830 |
|
![]() Datasheet |
LNT | Bulk | Active | 22000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 5.635 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |
LNR1V333MSECAP ALUM 33000UF 20% 35V SCREW Nichicon |
4,519 |
|
![]() Datasheet |
LNR | Bulk | Active | 33000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 7.13 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |
LNT2V331MSECCAP ALUM 330UF 20% 350V SCREW CH Nichicon |
4 |
|
![]() Datasheet |
LNT | Bulk | Active | 330 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |
LQR2V102MSECCAP ALUM 1000UF 20% 350V SCREW Nichicon |
3,510 |
|
![]() Datasheet |
LQR | Bulk | Active | 1000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 6.02 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNT1H223MSECAP ALUM 22000UF 20% 50V SCREW Nichicon |
2,265 |
|
![]() Datasheet |
LNT | Bulk | Active | 22000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 7.245 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |
LNT2H331MSEFCAP ALUM 330UF 20% 500V SCREW CH Nichicon |
3 |
|
![]() Datasheet |
LNT | Bulk | Active | 330 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |
LNT1K103MSECAP ALUM 10000UF 20% 80V SCREW Nichicon |
2,226 |
|
![]() Datasheet |
LNT | Bulk | Active | 10000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 6.21 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |

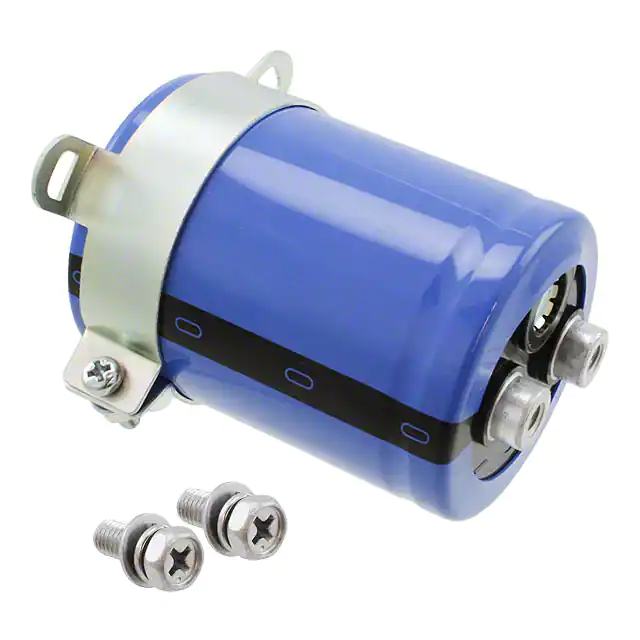

LNR1H333MSECAP ALUM 33000UF 20% 50V SCREW Nichicon |
2,336 |
|
![]() Datasheet |
LNR | Bulk | Active | 33000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 A @ 120 Hz | 8.05 A @ 10 kHz | - | 0.500" (12.70mm) | 2.008" Dia (51.00mm) | 2.874" (73.00mm) | - | Chassis Mount | |
![]() |
LNT2D222MSECAP ALUM 2200UF 20% 200V SCREW Nichicon |
3,000 |
|
![]() Datasheet |
LNT | Bulk | Active | 2200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.48 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount |
