Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LNR1H683MSECAP ALUM 68000UF 20% 50V SCREW Nichicon |
2,213 |
|
![]() Datasheet |
LNR | Bulk | Active | 68000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |

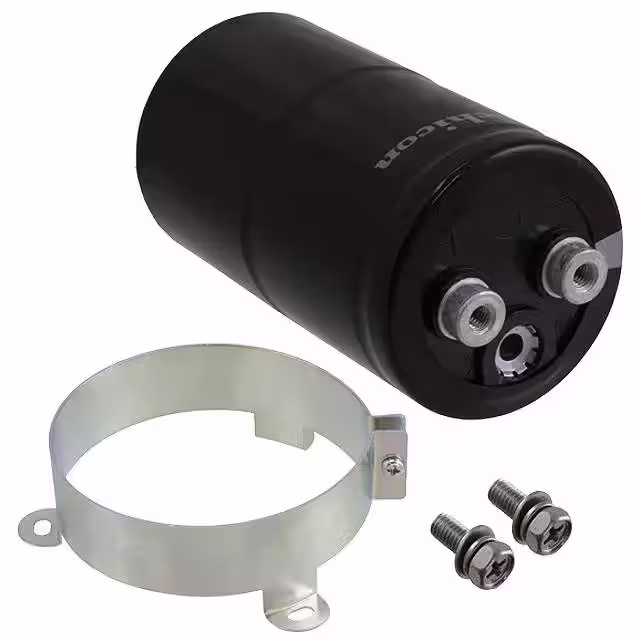

LQR2G182MSEFCAP ALUM 1800UF 20% 400V SCREW Nichicon |
3,170 |
|
![]() Datasheet |
LQR | Bulk | Active | 1800 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 12.74 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.661" (93.00mm) | - | Chassis Mount | |
![]() |

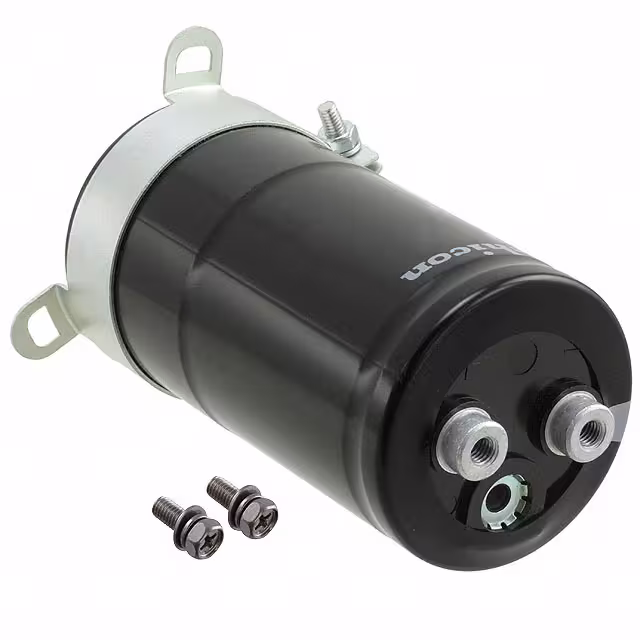

LNX2W122MSEFCAP ALUM 1200UF 20% 450V SCREW Nichicon |
3,536 |
|
![]() Datasheet |
LNX | Bulk | Active | 1200 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 8.82 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNT2V222MSEFCAP ALUM 2200UF 20% 350V SCREW Nichicon |
2 |
|
![]() Datasheet |
LNT | Bulk | Active | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 11 A @ 120 Hz | 15.4 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
LNY2W182MSEFCAP ALUM 1800UF 20% 450V SCREW Nichicon |
2 |
|
![]() Datasheet |
LNY | Bulk | Active | 1800 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 11.06 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.740" (95.00mm) | - | Chassis Mount | |
![]() |
LNR1E154MSECAP ALUM 150000UF 20% 25V SCREW Nichicon |
2,652 |
|
![]() Datasheet |
LNR | Bulk | Active | 150000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 120 Hz | 17.595 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |
LNT2A153MSECAP ALUM 15000UF 20% 100V SCREW Nichicon |
3 |
|
![]() Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | 8.97 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
LNY2W222MSEGCAP ALUM 2200UF 20% 450V SCREW Nichicon |
1 |
|
![]() Datasheet |
LNY | Bulk | Active | 2200 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 13.72 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
LNY2W272MSEGCAP ALUM 2700UF 20% 450V SCREW Nichicon |
3,532 |
|
![]() Datasheet |
LNY | Bulk | Active | 2700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.543" (90.00mm) | - | Chassis Mount | |
![]() |

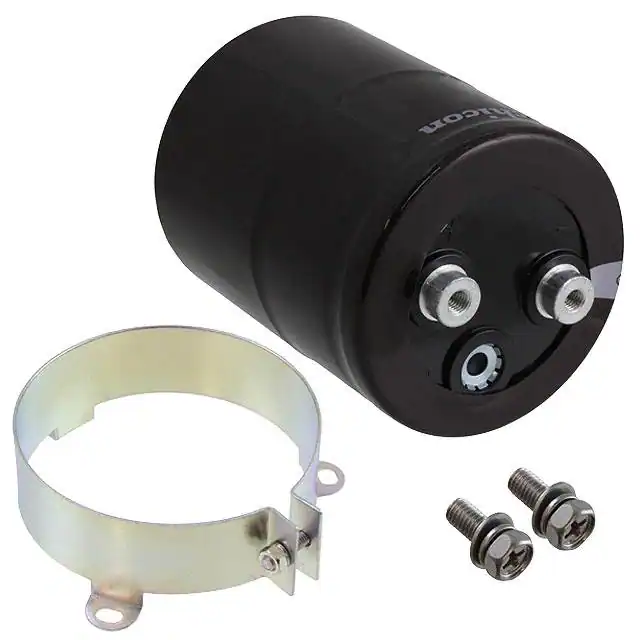

LQR2W182MSEGCAP ALUM 1800UF 20% 450V SCREW Nichicon |
4,952 |
|
![]() Datasheet |
LQR | Bulk | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 10.64 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount |
