Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

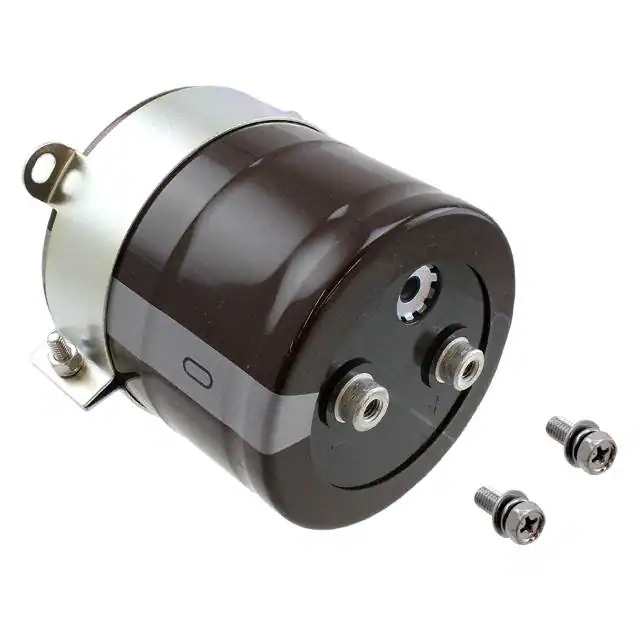

LQR2W272MSEHCAP ALUM 2700UF 20% 450V SCREW Nichicon |
2,739 |
|
![]() Datasheet |
LQR | Bulk | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 120 Hz | 14 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.268" (83.00mm) | - | Chassis Mount | |
![]() |

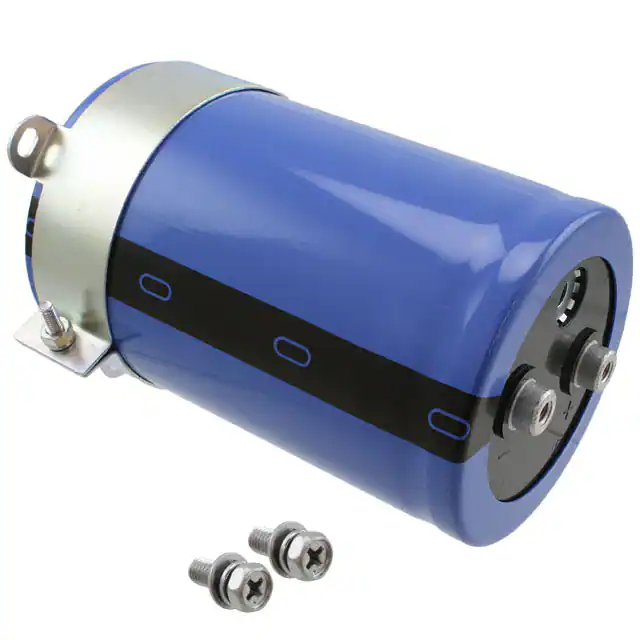

LNR2E103MSECAP ALUM 10000UF 20% 250V SCREW Nichicon |
2,702 |
|
![]() Datasheet |
LNR | Bulk | Active | 10000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 14.16 A @ 10 kHz | - | 0.500" (12.70mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |
LNT1H104MSECAP ALUM 100000UF 20% 50V SCREW Nichicon |
3,350 |
|
![]() Datasheet |
LNT | Bulk | Active | 100000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.8 A @ 120 Hz | 19.32 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |
LNR1E334MSECAP ALUM 330000UF 20% 25V SCREW Nichicon |
3,326 |
|
![]() Datasheet |
LNR | Bulk | Active | 330000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 28.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |
LNC2W332MSEGCAP ALUM 3300UF 20% 450V SCREW Nichicon |
3,004 |
|
![]() Datasheet |
LNC | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
![]() |
LNT2C153MSECAP ALUM 15000UF 20% 160V SCREW Nichicon |
3,043 |
|
![]() Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 11.76 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |

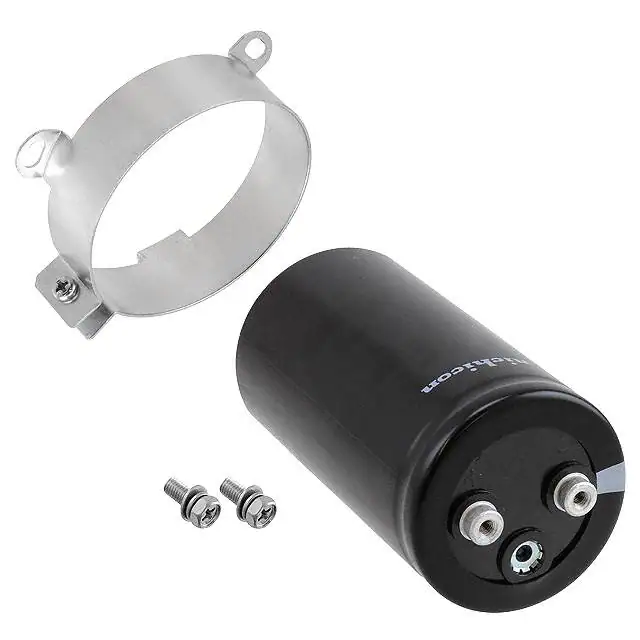

LNK2H222MSEGCAP ALUM 2200UF 20% 500V SCREW Nichicon |
1 |
|
![]() Datasheet |
LNK | Bulk | Active | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.724" (120.00mm) | - | Chassis Mount | |
![]() |
LNR1K104MSECAP ALUM 100000UF 20% 80V SCREW Nichicon |
3,893 |
|
![]() Datasheet |
LNR | Bulk | Active | 100000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 24.495 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
![]() |
LNX2G472MSEHCAP ALUM 4700UF 20% 400V SCREW Nichicon |
4,851 |
|
![]() Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.236" (133.00mm) | - | Chassis Mount | |
![]() |

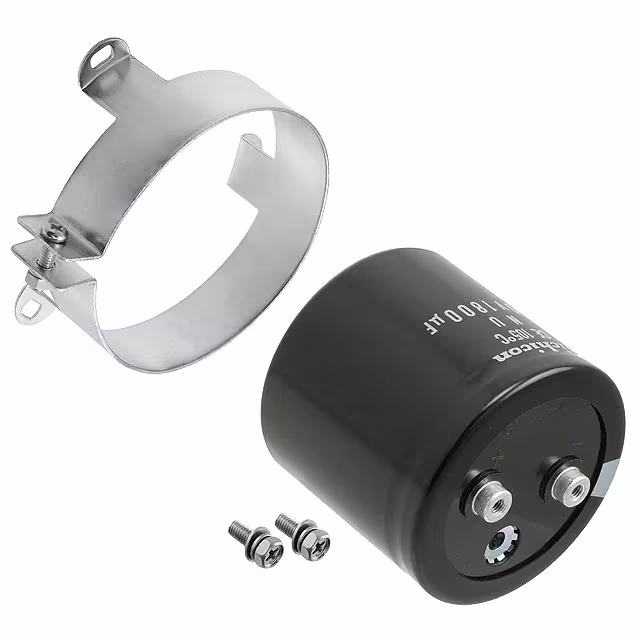

LNU2H182MSEHCAP ALUM 1800UF 20% 500V SCREW Nichicon |
4,572 |
|
![]() Datasheet |
LNU | Bulk | Active | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 2.874" (73.00mm) | - | Chassis Mount |
