Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LNR1J154MSECAP ALUM 150000UF 20% 63V SCREW Nichicon |
4,246 |
|
![]() Datasheet |
LNR | Bulk | Active | 150000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 29.9 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
LNC2V103MSEJCAP ALUM 10000UF 20% 350V SCREW Nichicon |
4,722 |
|
![]() Datasheet |
LNC | Bulk | Active | 10000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.1 A @ 120 Hz | 37.94 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNK2H272MSEHCAP ALUM 2700UF 20% 500V SCREW Nichicon |
2,870 |
|
![]() Datasheet |
LNK | Bulk | Active | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | 14.98 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.331" (110.00mm) | - | Chassis Mount | |
|
LNC2W562MSEJCAP ALUM 5600UF 20% 450V SCREW Nichicon |
4,188 |
|
![]() Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.2 A @ 120 Hz | 33.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.858" (98.00mm) | - | Chassis Mount | |
![]() |
LNX2L272MSEHCAP ALUM 2700UF 20% 550V SCREW Nichicon |
4,328 |
|
![]() Datasheet |
LNX | Bulk | Active | 2700 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.024" (153.00mm) | - | Chassis Mount | |
![]() |

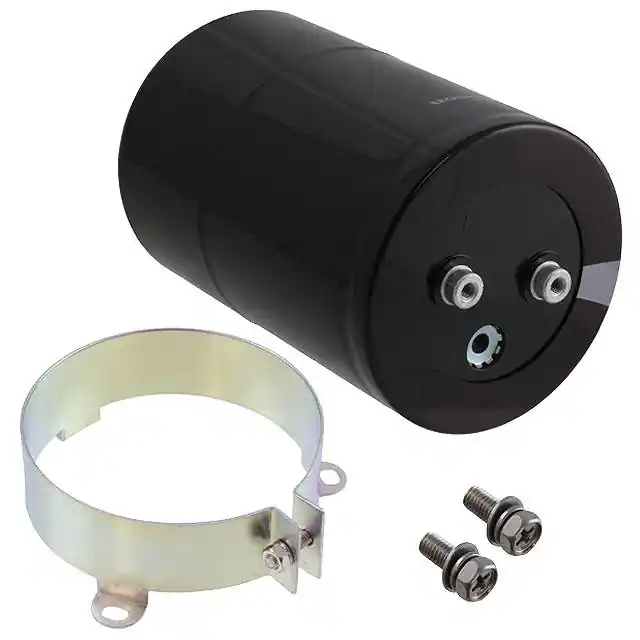

LQR2V103MSEJCAP ALUM 10000UF 20% 350V SCREW Nichicon |
3,706 |
|
![]() Datasheet |
LQR | Bulk | Active | 10000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 30.2 A @ 120 Hz | 42.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
![]() |
LNK2G123MSEJCAP ALUM 12000UF 20% 400V SCREW Nichicon |
3,748 |
|
![]() Datasheet |
LNK | Bulk | Active | 12000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 28.5 A @ 120 Hz | 39.9 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.102" (155.00mm) | - | Chassis Mount | |
![]() |
LNT2E333MSECAP ALUM 33000UF 20% 250V SCREW Nichicon |
1 |
|
![]() Datasheet |
LNT | Bulk | Active | 33000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 20.4 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 10.000" (254.00mm) | - | Chassis Mount | |
![]() |
LNT2C683MSECAP ALUM 68000UF 20% 160V SCREW Nichicon |
4,856 |
|
![]() Datasheet |
LNT | Bulk | Active | 68000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 19.2 A @ 120 Hz | 23.04 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 10.000" (254.00mm) | - | Chassis Mount | |
![]() |

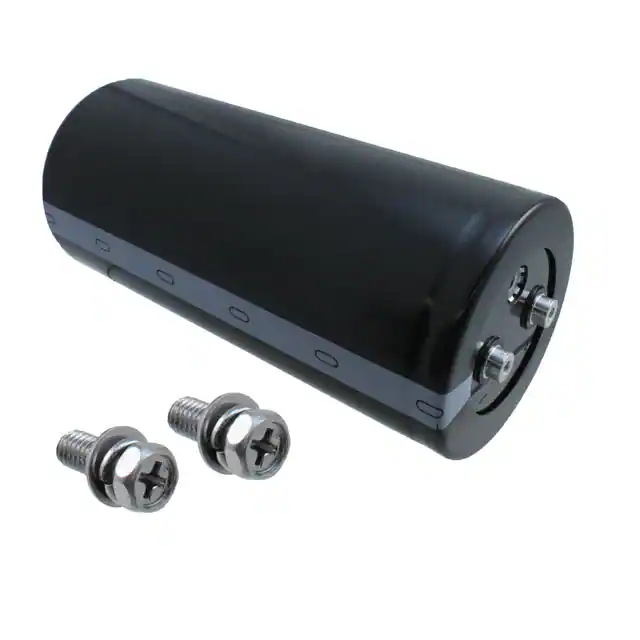

LNU2G153MSEJCAP ALUM 15000UF 20% 400V SCREW Nichicon |
2,417 |
|
![]() Datasheet |
LNU | Bulk | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33.5 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.795" (198.00mm) | - | Chassis Mount |
