Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

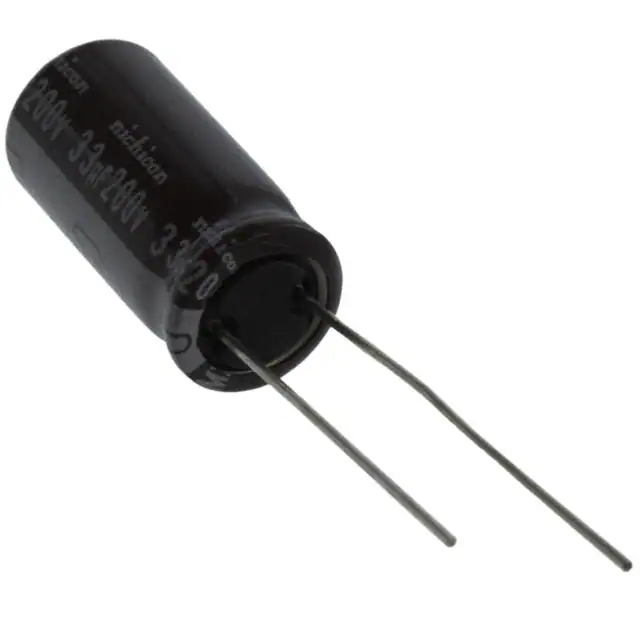

UCS2D330MPDCAP ALUM 33UF 20% 200V RADIAL TH Nichicon |
2,170 |
|
![]() Datasheet |
UCS | Bulk | Active | 33 µF | ±20% | 200 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
UHW2A820MPDCAP ALUM 82UF 20% 100V RADIAL TH Nichicon |
4,378 |
|
![]() Datasheet |
UHW | Bulk | Active | 82 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 416 mA @ 120 Hz | 1.04 A @ 100 kHz | 115 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPJ1K151MPDCAP ALUM 150UF 20% 80V RADIAL TH Nichicon |
2,786 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 150 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 459 mA @ 120 Hz | - | 150 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole | |
![]() |
URS1V471MHDCAP ALUM 470UF 20% 35V RADIAL TH Nichicon |
4,800 |
|
![]() Datasheet |
URS | Bulk | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 885 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPM1K560MPD6CAP ALUM 56UF 20% 80V RADIAL TH Nichicon |
28 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 56 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 305 mA @ 120 Hz | 500 mA @ 10 kHz | 360 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
![]() |
UBW1K101MPDCAP ALUM 100UF 20% 80V RADIAL TH Nichicon |
3,007 |
|
![]() Datasheet |
UBW | Bulk | Active | 100 µF | ±20% | 80 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | AEC-Q200 | Automotive | 395 mA @ 120 Hz | 790 mA @ 100 kHz | 390 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM0J821MPD6CAP ALUM 820UF 20% 6.3V RADIAL Nichicon |
69 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 840 mA @ 10 kHz | 95 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
UWZ1H4R7MCL1GBCAP ALUM 4.7UF 20% 50V SMD Nichicon |
4,687 |
|
![]() Datasheet |
UWZ | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 19 mA @ 120 Hz | 28.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
![]() |
UUD1A270MCL1GSCAP ALUM 27UF 20% 10V SMD Nichicon |
35 |
|
![]() Datasheet |
UUD | Tape & Reel (TR) | Active | 27 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UUX0J221MCL6GSCAP ALUM 220UF 20% 6.3V SMD Nichicon |
4,005 |
|
![]() Datasheet |
UUX | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 121 mA @ 120 Hz | 157.3 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
