Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVK2A331MHDCAP ALUM 330UF 20% 100V RADIAL Nichicon |
2,042 |
|
![]() Datasheet |
UVK | Bulk | Active | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPJ1C182MHD6CAP ALUM 1800UF 20% 16V RADIAL Nichicon |
3,117 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.7 A @ 10 kHz | 54 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
UWD1A330MCL1GSCAP ALUM 33UF 20% 10V SMD Nichicon |
2,303 |
|
![]() Datasheet |
UWD | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UPJ2A330MPD6CAP ALUM 33UF 20% 100V RADIAL TH Nichicon |
2 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 33 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 166 mA @ 120 Hz | 293 mA @ 10 kHz | 420 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPM1A122MPDCAP ALUM 1200UF 20% 10V RADIAL Nichicon |
3,848 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 1200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.12 A @ 120 Hz | 1.26 A @ 10 kHz | 50 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UVP1V471MHDCAP ALUM 470UF 20% 35V RADIAL TH Nichicon |
4,331 |
|
![]() Datasheet |
UVP | Bulk | Not For New Designs | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 655 mA @ 120 Hz | 982.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

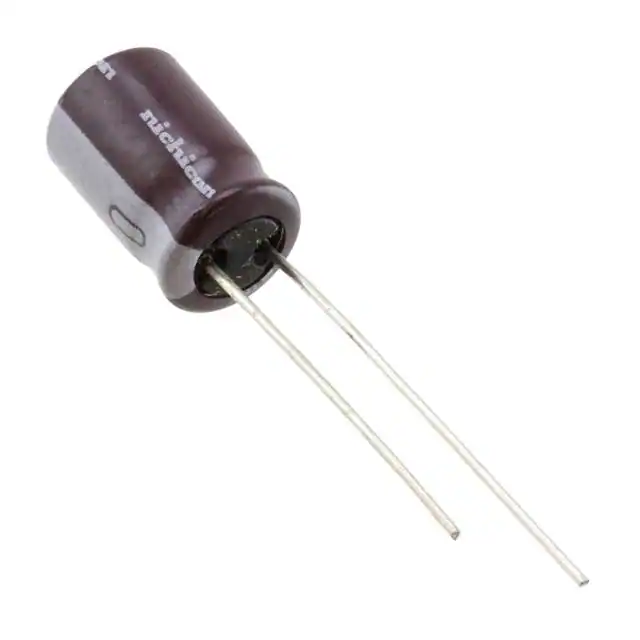

UPW2FR47MPD1TDCAP ALUM 0.47UF 20% 315V RADIAL Nichicon |
5 |
|
![]() Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 0.47 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 mA @ 120 Hz | 17.6 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UWD1C330MCL1GSCAP ALUM 33UF 20% 16V SMD Nichicon |
4,554 |
|
![]() Datasheet |
UWD | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
![]() |

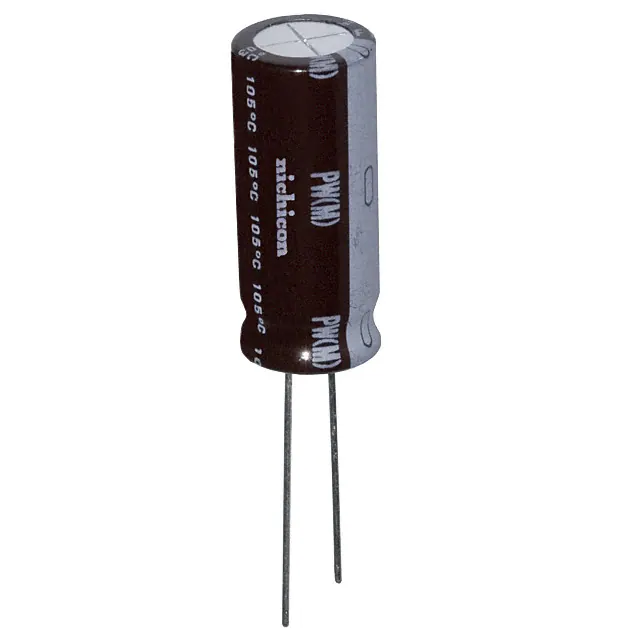

UPW2A181MHDCAP ALUM 180UF 20% 100V RADIAL Nichicon |
2,440 |
|
![]() Datasheet |
UPW | Bulk | Not For New Designs | 180 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 513.5 mA @ 120 Hz | 790 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UWG0J680MCL1GBCAP ALUM 68UF 20% 6.3V SMD Nichicon |
3,385 |
|
![]() Datasheet |
UWG | Tape & Reel (TR) | Active | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 70 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
