Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHW1H391MPDCAP ALUM 390UF 20% 50V RADIAL TH Nichicon |
4,302 |
|
![]() Datasheet |
UHW | Bulk | Active | 390 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 2.42 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVY2V3R3MPD1TDCAP ALUM 3.3UF 20% 350V RADIAL Nichicon |
2,823 |
|
![]() Datasheet |
UVY | Cut Tape (CT) | Active | 3.3 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVK2D100MPD1TDCAP ALUM 10UF 20% 200V RADIAL TH Nichicon |
2,253 |
|
![]() Datasheet |
UVK | Cut Tape (CT) | Active | 10 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 128 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
![]() |
URZ2C470MHDCAP ALUM 47UF 20% 160V RADIAL TH Nichicon |
3,800 |
|
![]() Datasheet |
URZ | Bulk | Active | 47 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHW1E182MHDCAP ALUM 1800UF 20% 25V RADIAL Nichicon |
3,210 |
|
![]() Datasheet |
UHW | Bulk | Active | 1800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UWZ1E470MCL1GSCAP ALUM 47UF 20% 25V SMD Nichicon |
4,857 |
|
![]() Datasheet |
UWZ | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 66 mA @ 120 Hz | 99 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UHW1J391MPDCAP ALUM 390UF 20% 63V RADIAL TH Nichicon |
3,756 |
|
![]() Datasheet |
UHW | Bulk | Active | 390 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 2.05 A @ 100 kHz | 63 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UPW2F3R3MPD1TDCAP ALUM 3.3UF 20% 315V RADIAL Nichicon |
25 |
|
![]() Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

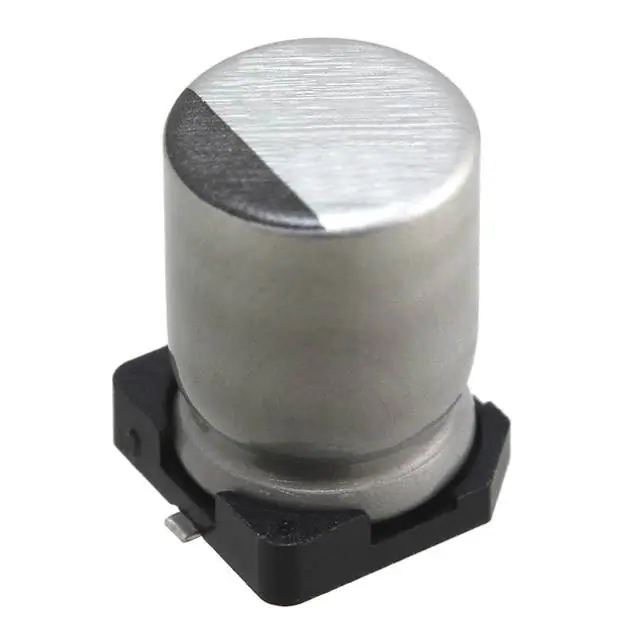

UCB0J221MCL1GSCAP ALUM 220UF 20% 6.3V SMD Nichicon |
2,289 |
|
![]() Datasheet |
UCB | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 101 mA @ 120 Hz | 151.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
![]() |

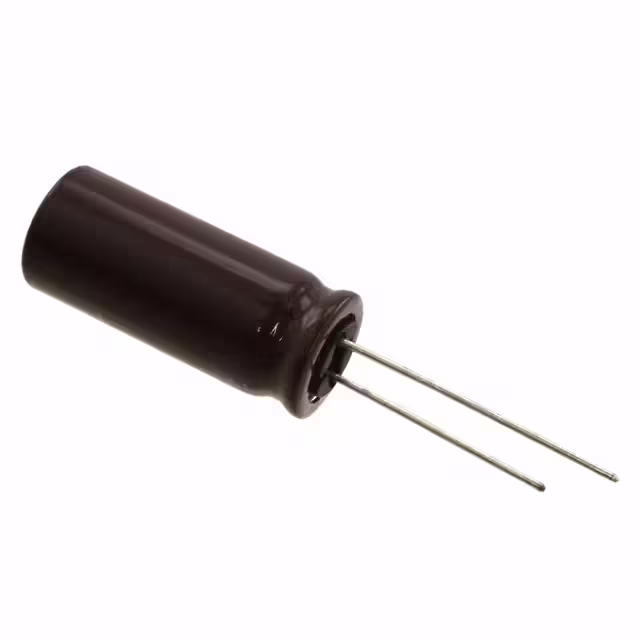

UPM1C182MHDCAP ALUM 1800UF 20% 16V RADIAL Nichicon |
3,707 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.69 A @ 120 Hz | 1.88 A @ 10 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | - | Through Hole |
