DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KG09RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,755 |
|
Datasheet |
KG | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
1825057-2SWITCH STANDARD DIP SPST |
2,278 |
|
Datasheet |
ADE | Tube | Active | SPST | 3 | - | Standard | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
|
KG10RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,130 |
|
Datasheet |
KG | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KG12RSWITCH SLIDE DIP SPST 0.025A 24V |
2,812 |
|
Datasheet |
KG | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KG12RTSWITCH SLIDE DIP SPST 0.025A 24V |
2,673 |
|
Datasheet |
KG | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

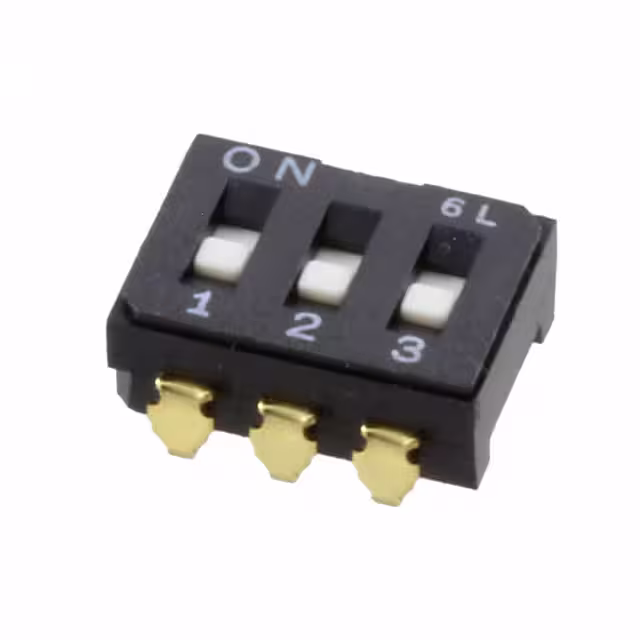

CFS-0301MASWITCH SLIDE DIP SPST 0.1A 6V |
7 |
|
Datasheet |
CFS | Tube | Active | SPST | 3 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.154" (3.90mm) | Surface Mount | -40°C ~ 85°C | J Lead | - | 0.100" (2.54mm), Full | No |
|

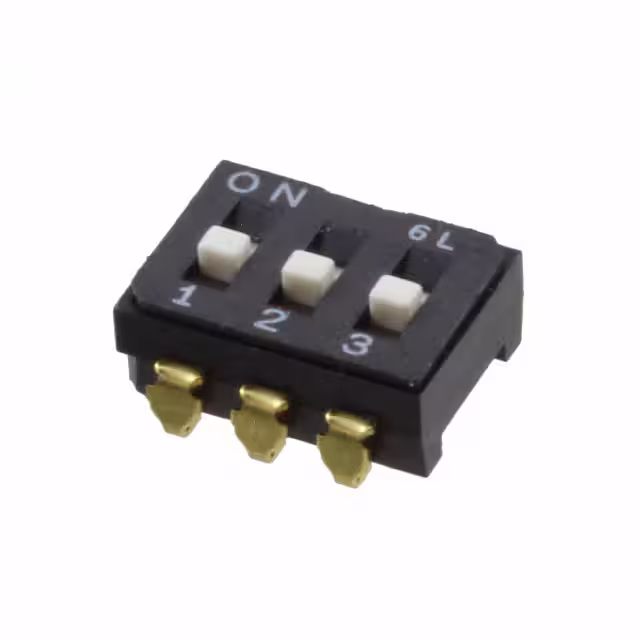

CFS-0302MASWITCH SLIDE DIP SPST 0.1A 6V |
4 |
|
Datasheet |
CFS | Tube | Active | SPST | 3 | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 100mA | 0.178" (4.52mm) | Surface Mount | -40°C ~ 85°C | J Lead | - | 0.100" (2.54mm), Full | No |
|
BPA01SBSWITCH PIANO DIP SPST 0.1A 5V |
2,927 |
|
Datasheet |
BPA | Tube | Active | SPST | 1 | 5VDC | Piano | Raised | Beryllium Copper | Gold | 100mA | 0.274" (6.95mm) | Surface Mount, Right Angle | -20°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|

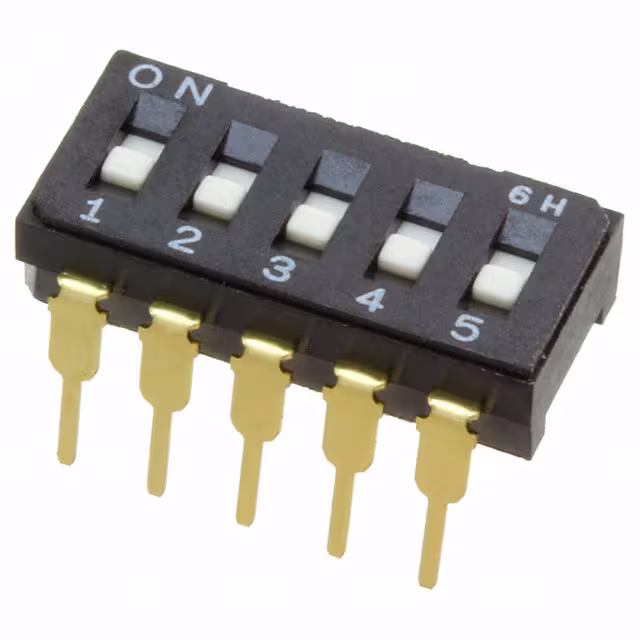

CFS-0501MCSWITCH SLIDE DIP SPST 0.1A 6V |
6 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.177" (4.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
CFS-0601MBSWITCH SLIDE DIP SPST 0.1A 6V |
5 |
|
Datasheet |
CFS | Tube | Active | SPST | 6 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.146" (3.70mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
A6SN-3102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
4,619 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 25mA | 0.175" (4.45mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
KAD10LHGTSWITCH SLIDE DIP SPST 0.1A 50V |
3,310 |
|
Datasheet |
KAD | Tube | Active | SPST | 10 | 50VDC | Slide (Standard) | Raised | - | Gold | 100mA | 0.146" (3.70mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
SBS 1010DIP SWITCH 26.34 MM |
3,696 |
|
Datasheet |
SBS | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | Nickel | Gold | 25mA | 0.149" (3.78mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|

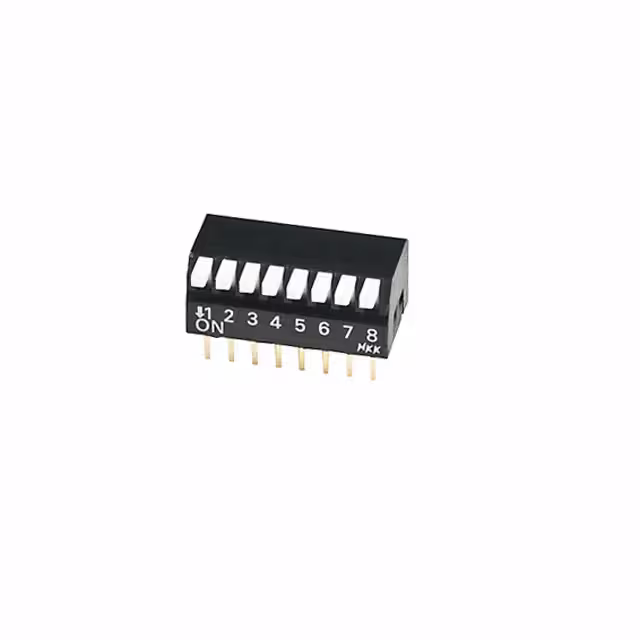

JS0308PP4-SSWITCH PIANO DIP SPST 0.025A 24V |
23 |
|
Datasheet |
JS | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 25mA | 0.362" (9.20mm) | Through Hole, Right Angle | -25°C ~ 70°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

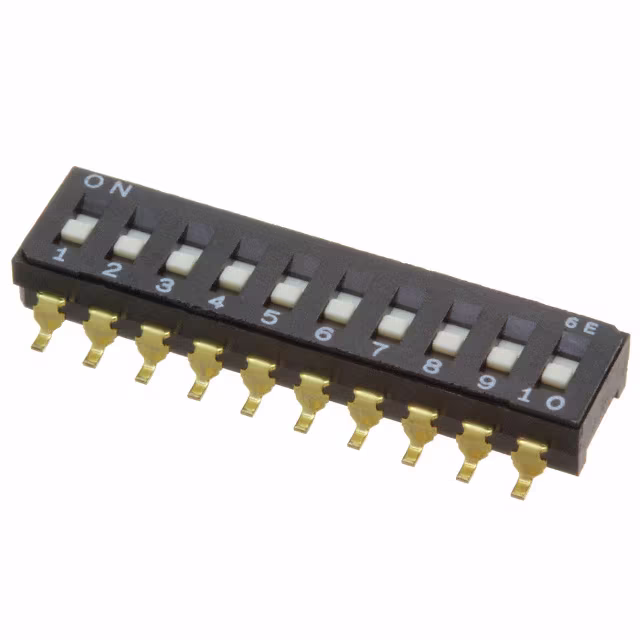

CFS-1001MBSWITCH SLIDE DIP SPST 0.1A 6V |
11 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.146" (3.70mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

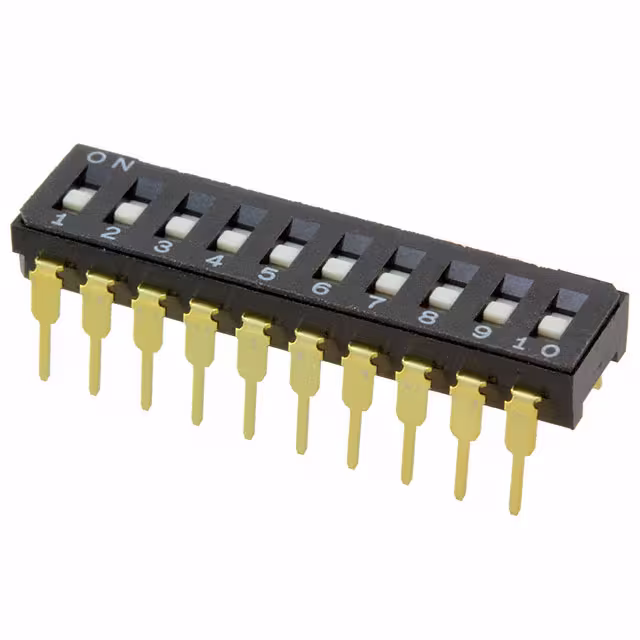

CFS-1001MCSWITCH SLIDE DIP SPST 0.1A 6V |
11 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.177" (4.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

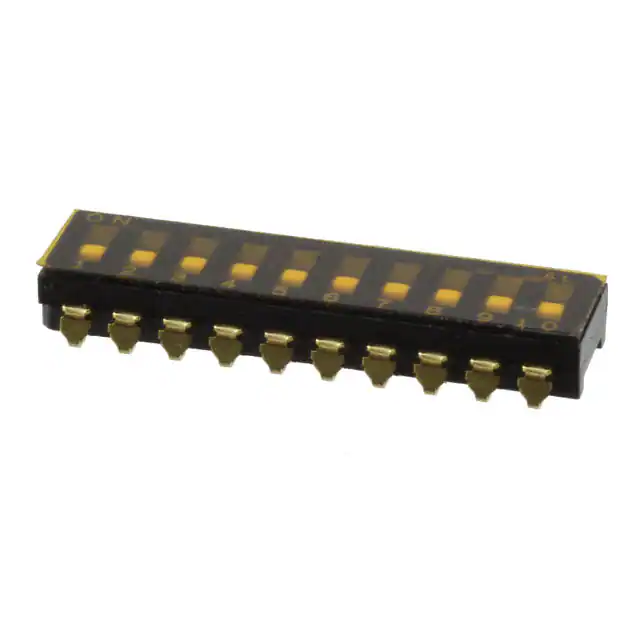

CFS-1000MASWITCH SLIDE DIP SPST 0.1A 6V |
3,548 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.154" (3.90mm) | Surface Mount | -40°C ~ 85°C | J Lead | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
DRS 61110SWITCH ROTARY BCD INVERSE |
4,655 |
|
Datasheet |
DRS | Tube | Active | BCD Complement | 10 | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 150mA | 0.543" (13.80mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
DRS 60116SWITCH ROTARY HEXADECIMAL INV |
25 |
|
Datasheet |
DRS | Tube | Active | Hexadecimal Complement | 16 | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 150mA | 0.256" (6.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
DRS 61010SWITCH ROTARY BCD |
21 |
|
Datasheet |
DRS | Tube | Active | BCD | 10 | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 150mA | 0.543" (13.80mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
