DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

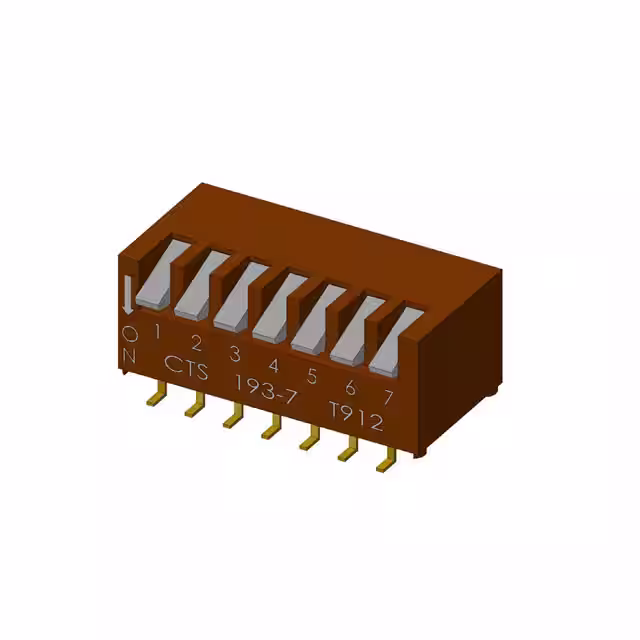

193-7MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,036 |
|
Datasheet |
193 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
2-1825059-5SWITCH STANDARD DIP SPST |
2,178 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 6 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|

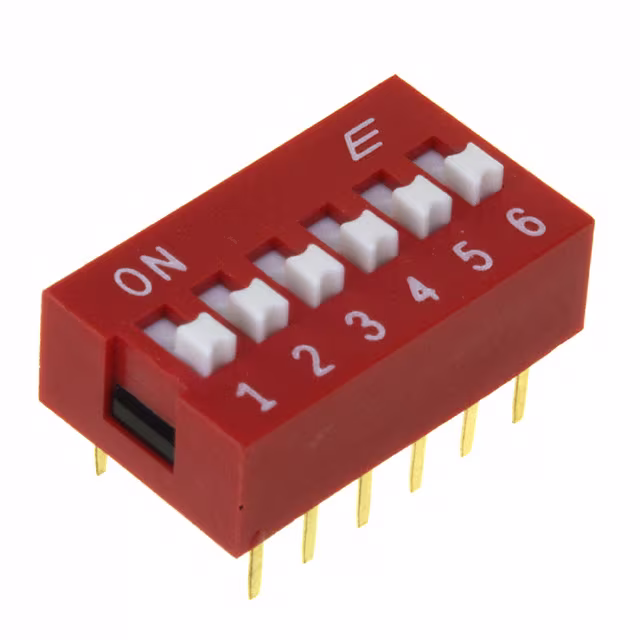

KAS1106ESWITCH SLIDE DIP SPST 0.025A 24V |
2,780 |
|
Datasheet |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAS1106RSWITCH SLIDE DIP SPST 0.025A 24V |
2,365 |
|
Datasheet |
KAS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAE08LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,488 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.174" (4.41mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
219-12ESJSWITCH SLIDE DIP SPST 0.1A 20V |
4,343 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
3,251 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
4,228 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
3,384 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12MSJSWITCH SLIDE DIP SPST 0.1A 20V |
2,238 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,040 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
161390-7SWITCH SLIDE DIP SPST |
4,486 |
|
Datasheet |
- | Bulk | Obsolete | SPST | 7 | - | - | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|

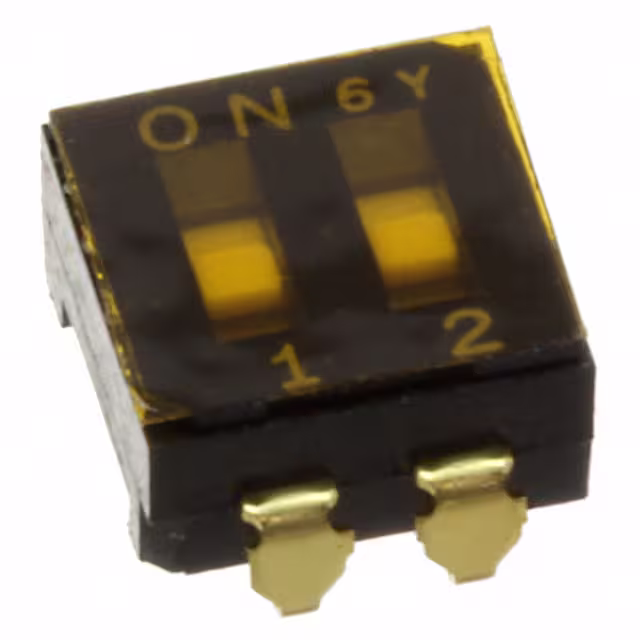

CFS-0200MASWITCH SLIDE DIP SPST 0.1A 6V |
2,309 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KJ08EXRSWITCH SLIDE DIP SPST 0.025A 24V |
2,086 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ08RXRSWITCH SLIDE DIP SPST 0.025A 24V |
4,506 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR07RTSWITCH SLIDE DIP SPST 0.025A 24V |
2,268 |
|
Datasheet |
KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6S-6102-PSWITCH SLIDE DIP SPST 0.025A 24V |
4,825 |
|
Datasheet |
A6S | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
6-1825059-2SWITCH SLIDE DIP SPST 0.025A 24V |
3,320 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825002-4SWITCH SLIDE DIP SPST 0.025A 24V |
3,124 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
218-8LPSSWITCH SLIDE DIP SPST 0.025A 24V |
3,659 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
