DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-8LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,592 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.106" (2.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|
218-8LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
4,216 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.106" (2.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|
97C08SRSWITCH SLIDE DIP SPST 0.025A 24V |
2,301 |
|
Datasheet |
97 | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.063" (1.60mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.050" (1.27mm), Half | Yes |
|
97R08SRSWITCH SLIDE DIP SPST 0.025A 24V |
2,861 |
|
Datasheet |
97 | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.061" (1.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.050" (1.27mm), Half | Yes |
|
206-123RASWITCH SLIDE DIP SPDT 0.05A 24V |
2,400 |
|
Datasheet |
206RA | Tube | Active | SPDT | 3 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

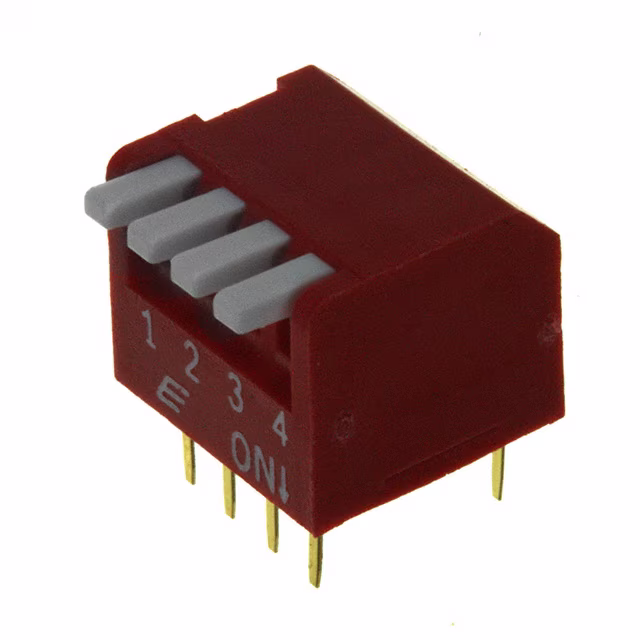

KAP1104ESWITCH PIANO DIP SPST 0.025A 24V |
4,419 |
|
Datasheet |
KAP | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 25mA | 0.402" (10.20mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
ADF03TSWITCH SLIDE DIP SPST 0.025A 24V |
3,894 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.189" (4.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
ADF02SSWITCH SLIDE DIP SPST 0.025A 24V |
4,213 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.177" (4.50mm) | Surface Mount | -30°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
CJS-1201A2SWITCH SLIDE SPDT 0.1A 6V |
4,381 |
|
- |
CJS | Bulk | Active | SPDT | - | - | Flush | - | Copper Alloy | Gold | 100mA | - | Surface Mount | -40°C ~ 85°C | J Lead | - | - | - |
|
|
CJS-1201B2SWITCH SLIDE SPDT 0.1A 6V |
4,267 |
|
- |
CJS | Bulk | Active | SPDT | - | - | Flush | - | Copper Alloy | Gold | 100mA | - | Surface Mount | -40°C ~ 85°C | Gull Wing | - | - | - |
|
KJ07RTRSWITCH SLIDE DIP SPST 0.025A 24V |
3,192 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.140" (3.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
KJ08RXTSWITCH SLIDE DIP SPST 0.025A 24V |
4,162 |
|
Datasheet |
KJ | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KP08RTSWITCH PIANO DIP SPST 0.025A 24V |
3,229 |
|
Datasheet |
KP | Tube | Active | SPST | 8 | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.374" (9.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KJ08EXTSWITCH SLIDE DIP SPST 0.025A 24V |
4,663 |
|
Datasheet |
KJ | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KP08ETSWITCH PIANO DIP SPST 0.025A 24V |
2,626 |
|
Datasheet |
KP | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 25mA | 0.374" (9.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
206-213RASSWITCH SLIDE DIP DPST 0.05A 24V |
3,144 |
|
Datasheet |
206RA | Tube | Active | DPST | 3 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
KAR06LHGTSWITCH PIANO DIP SPST 0.025A 24V |
2,838 |
|
Datasheet |
KAR | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Raised | Copper Alloy | Gold | 25mA | 0.293" (7.45mm) | Through Hole, Right Angle | -30°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
204-12SSWITCH SLIDE DIP SPST 0.05A 24V |
2,762 |
|
Datasheet |
204 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.01mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
KAE06TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,295 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 25mA | 0.148" (3.75mm) | Surface Mount | -20°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
KAJ09TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,189 |
|
Datasheet |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 25mA | 0.140" (3.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | Tape Seal | 0.100" (2.54mm), Full | Yes |
