DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
194-9MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
KR08RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KR | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

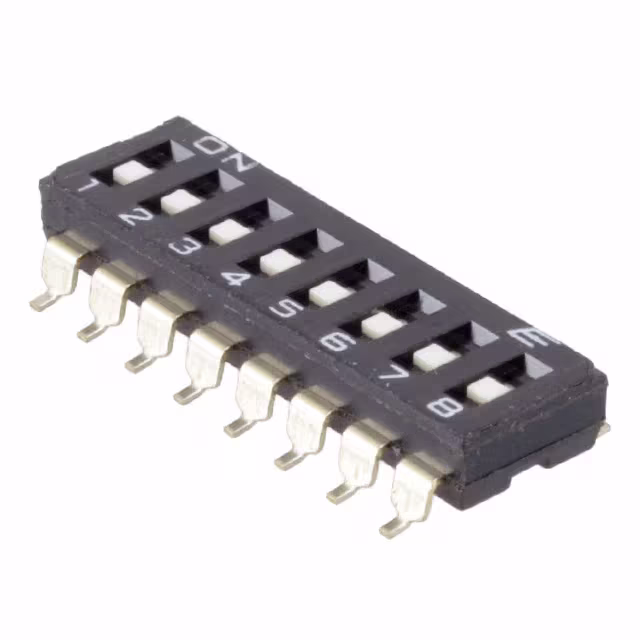

KAE08SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAE | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE08LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAE | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE08SHGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAE | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
218-8LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS04-254-2-12BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
218-10LPSRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-10LPSRFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-123RASSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-213RASTSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | DPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
3-1825059-6SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
204-215STSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
DMR05TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
DM | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
NDI06HSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NDI | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
DMR04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
