DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

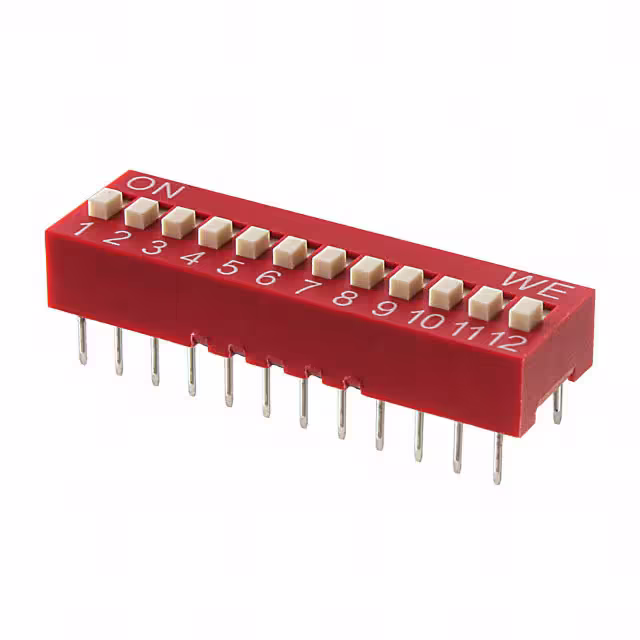

418117270912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.189" (4.80mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

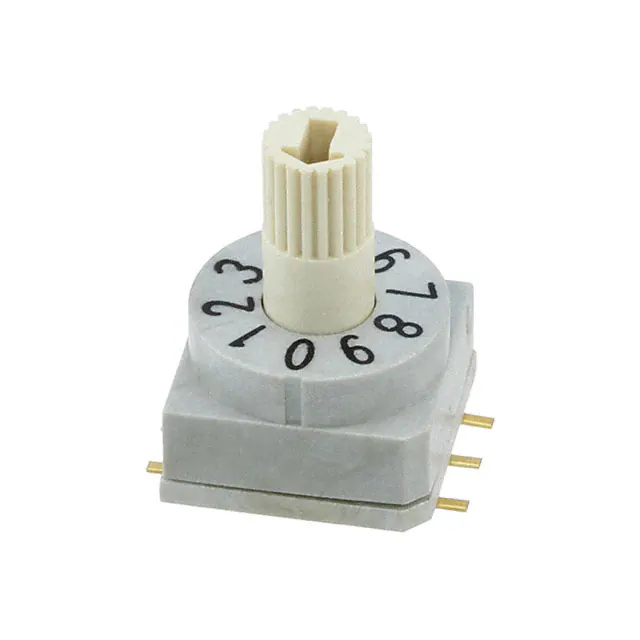

428521420910SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik |
15 |
|
Datasheet |
WS-ROSV | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | - | Gold | 150mA | 0.555" (14.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | IP67 - Dust Tight, Waterproof | 0.100" (2.54mm), Full | Yes |
|

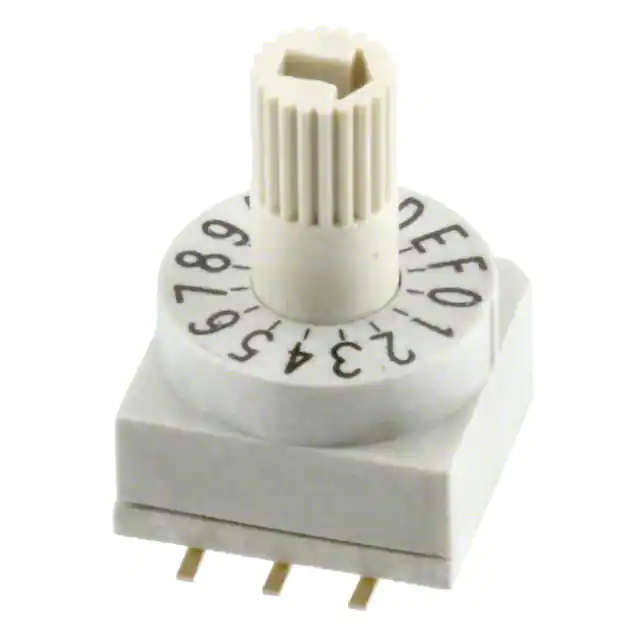

428521420916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
4,394 |
|
Datasheet |
WS-ROSV | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | - | Gold | 150mA | 0.555" (14.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | IP67 - Dust Tight, Waterproof | 0.100" (2.54mm), Full | Yes |
|
418217270910ASWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3 |
|
Datasheet |
WS-DITU | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 25mA | 0.390" (9.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
418127270910SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
19 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.173" (4.40mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

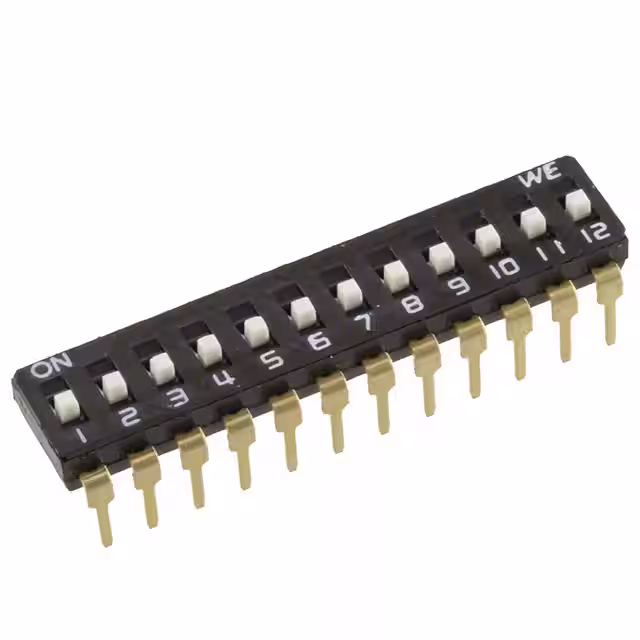

418127270912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.173" (4.40mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

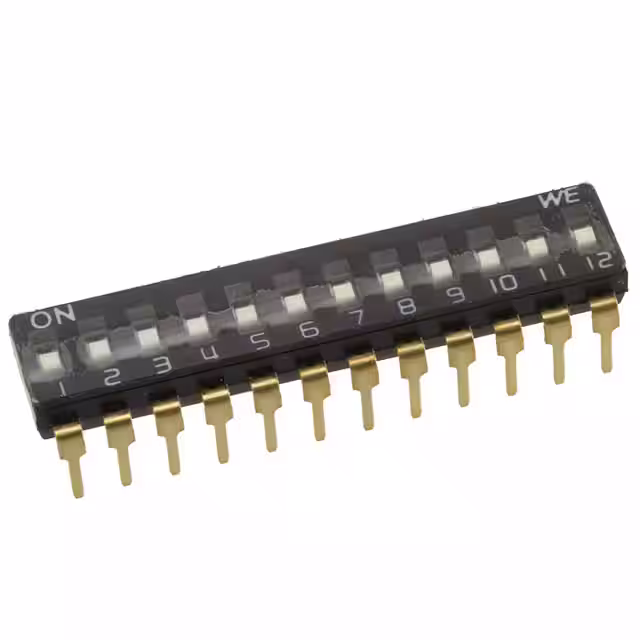

418127160912SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
16 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.146" (3.70mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|

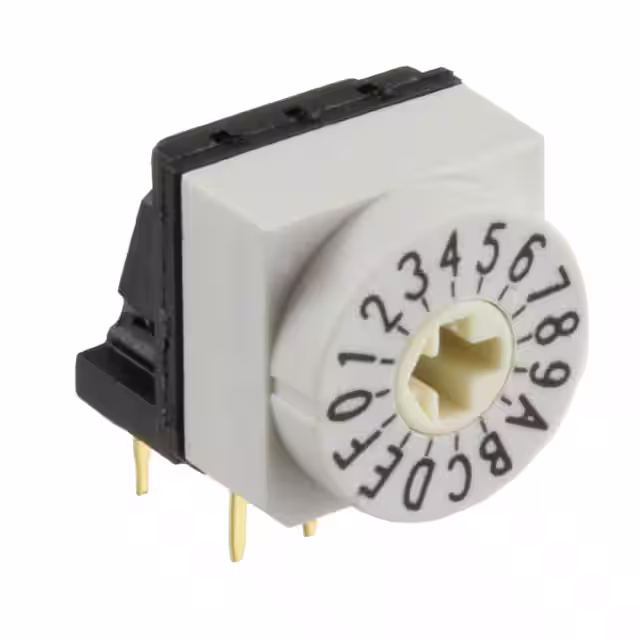

429427520917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
15 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

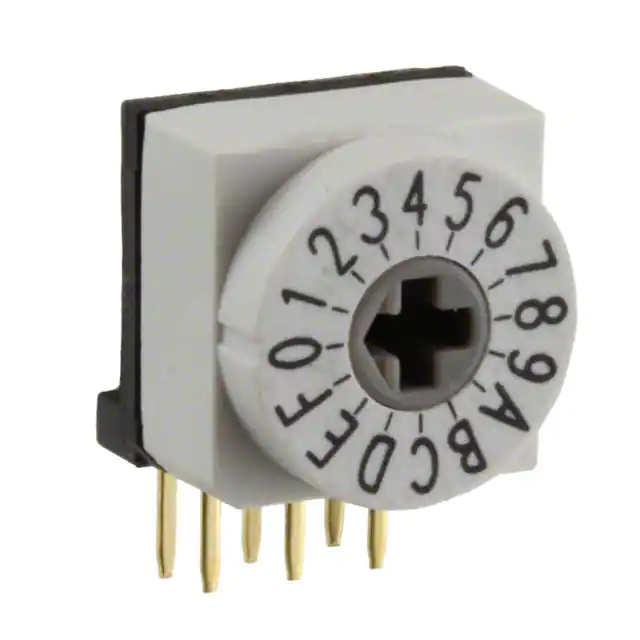

428427520916SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik |
24 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 150mA | 0.394" (10.00mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
428527520917SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik |
4 |
|
Datasheet |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 150mA | 0.256" (6.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | IP67 - Dust Tight, Waterproof | 0.100" (2.54mm), Full | Yes |
