DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

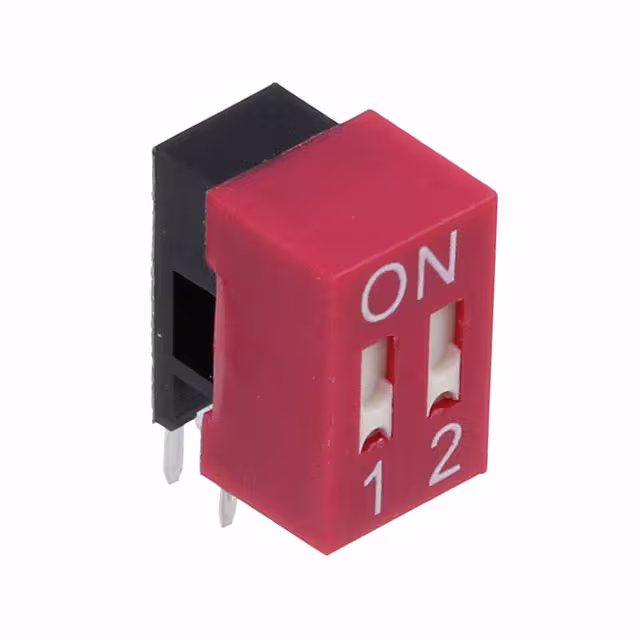

418217170902SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
2,741 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

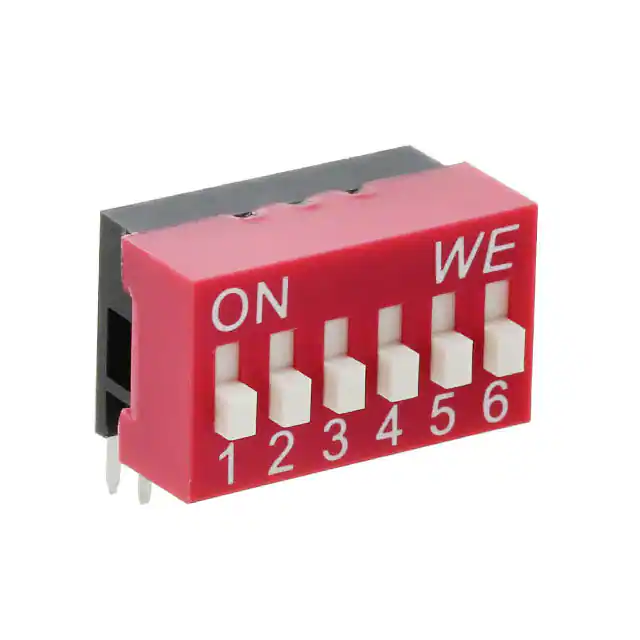

418217270906SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,100 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
418317270904SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
3,709 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 4 | 24VDC | Piano | Raised | - | Gold | 25mA | 0.272" (6.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

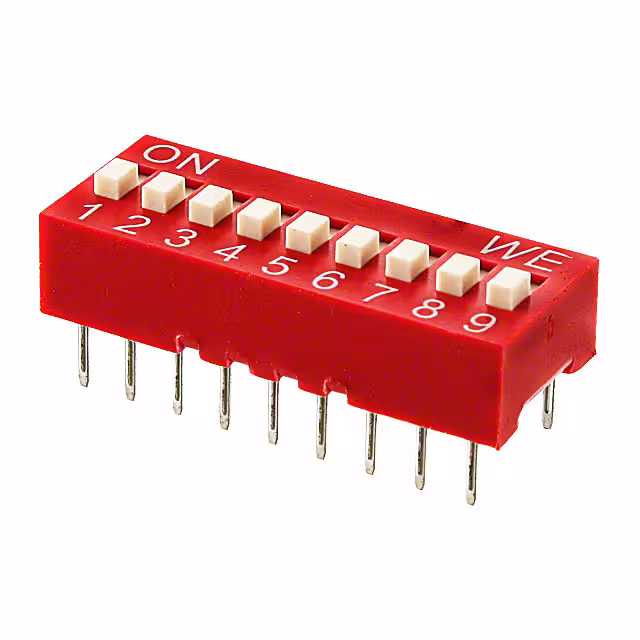

418117270909SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,945 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | - | Gold | 25mA | 0.189" (4.80mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

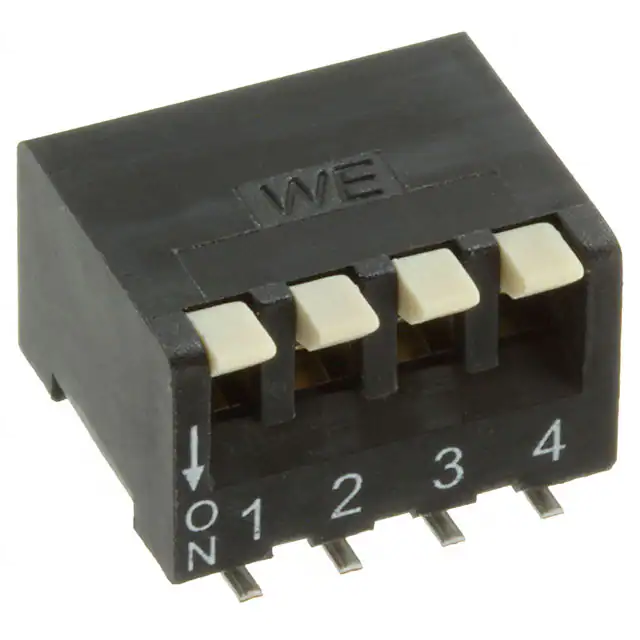

418311170804SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
3,566 |
|
Datasheet |
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 4 | 24VDC | Piano | Flush, Recessed | - | Gold | 25mA | 0.275" (6.99mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

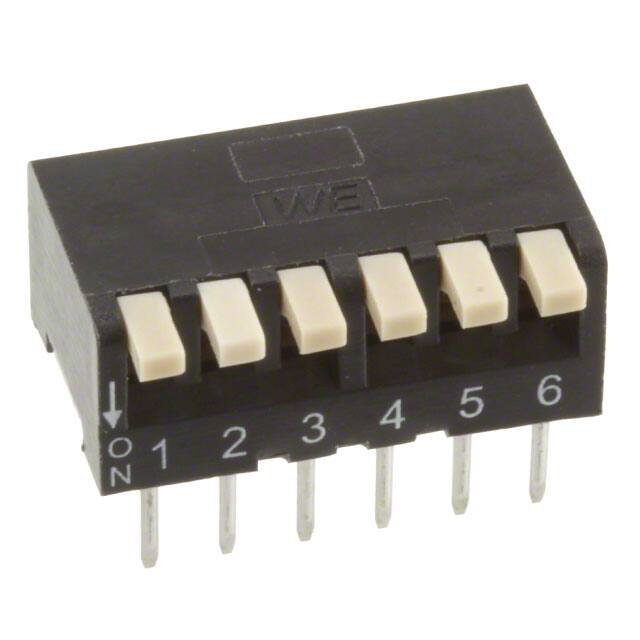

418317270906SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
4,518 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Raised | - | Gold | 25mA | 0.272" (6.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

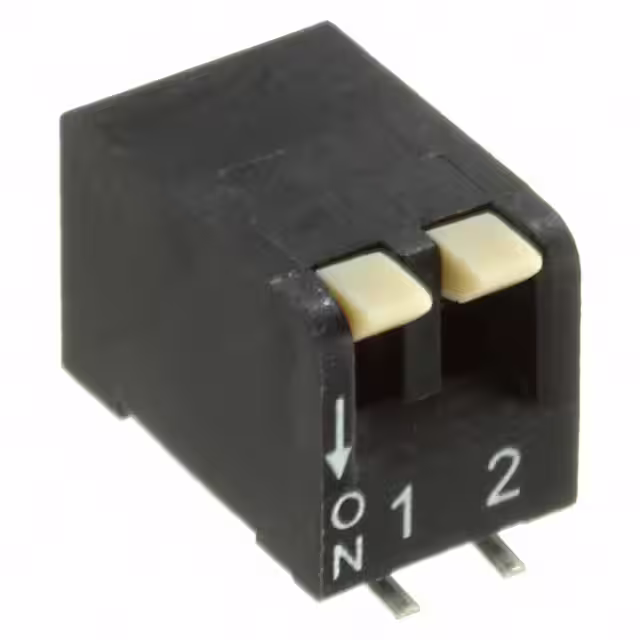

418311170802SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,929 |
|
Datasheet |
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Piano | Flush, Recessed | - | Gold | 25mA | 0.275" (6.99mm) | Surface Mount, Right Angle | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

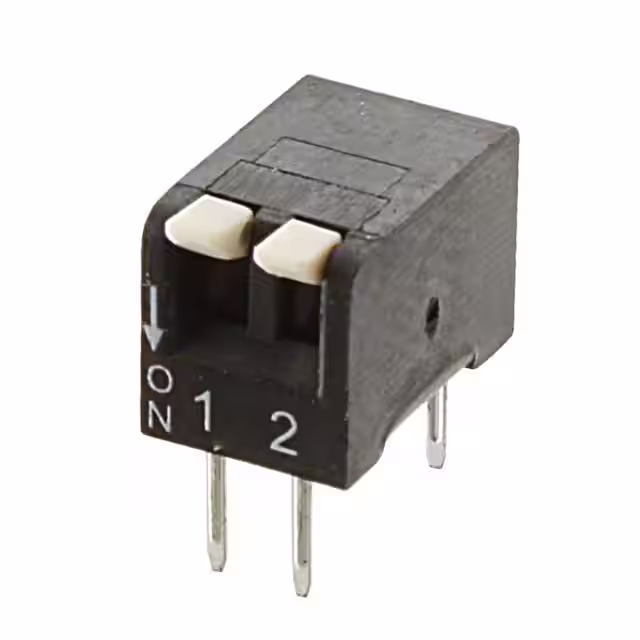

418317170902SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,745 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 2 | 24VDC | Piano | Flush, Recessed | - | Gold | 25mA | 0.272" (6.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
418317170903SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
4,581 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 3 | 24VDC | Piano | Flush, Recessed | - | Gold | 25mA | 0.272" (6.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

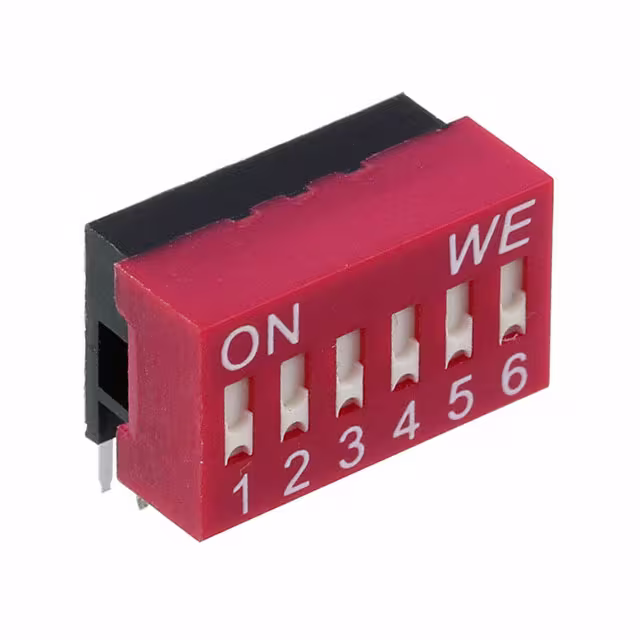

418217170906SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,276 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
