DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

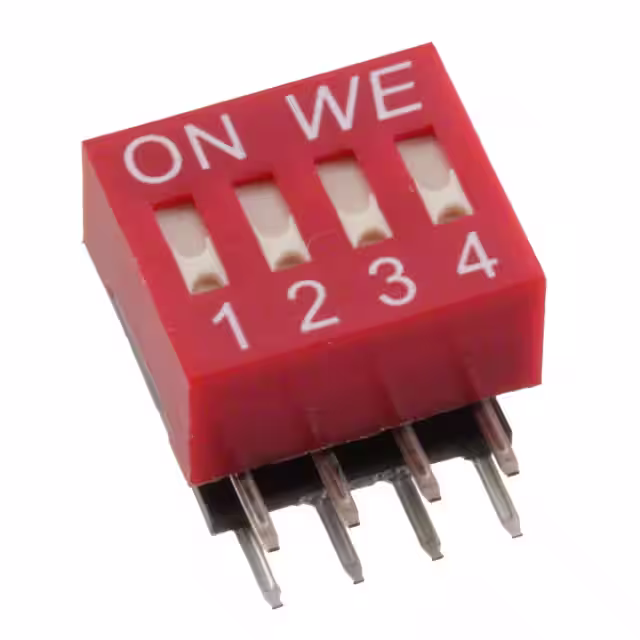

418217170904SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
2,214 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

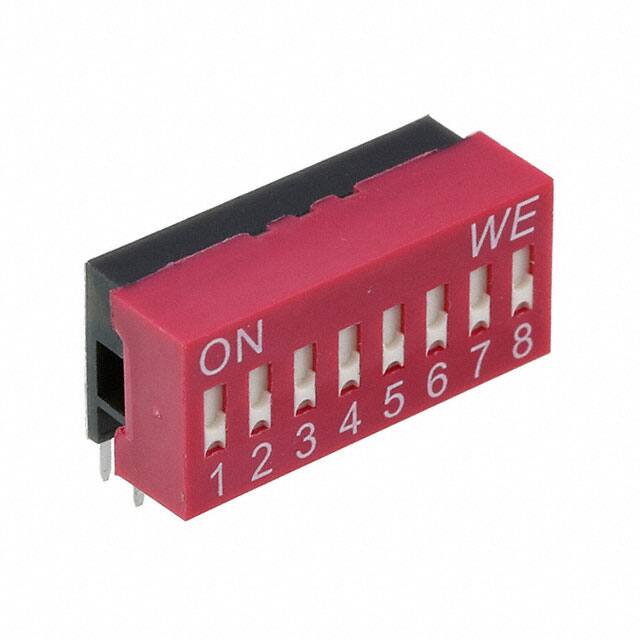

418217170908SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,264 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217270902SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,677 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

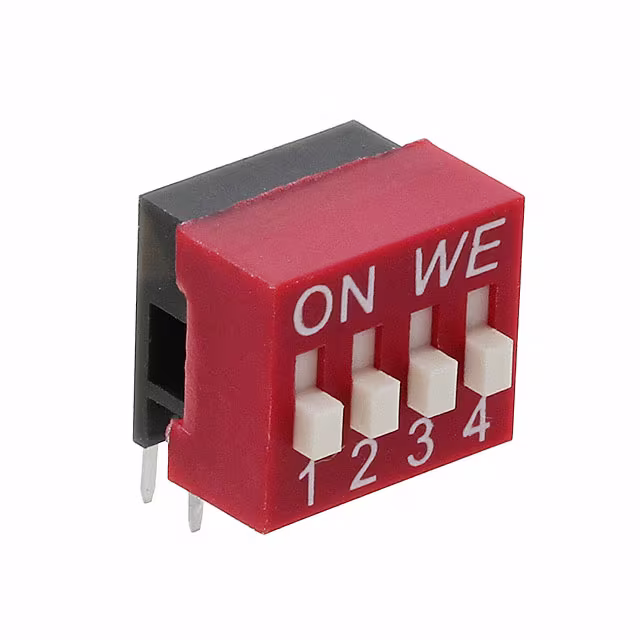

418217270904SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
3,594 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418217270908SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,941 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

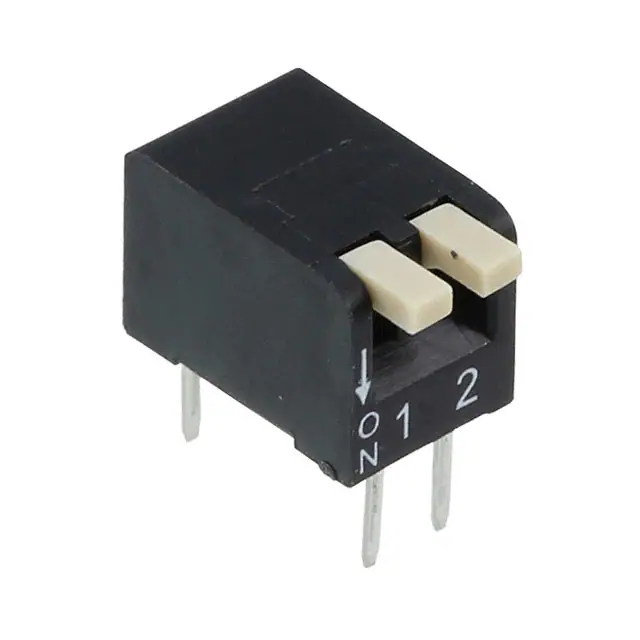

418317270902SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
2,918 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

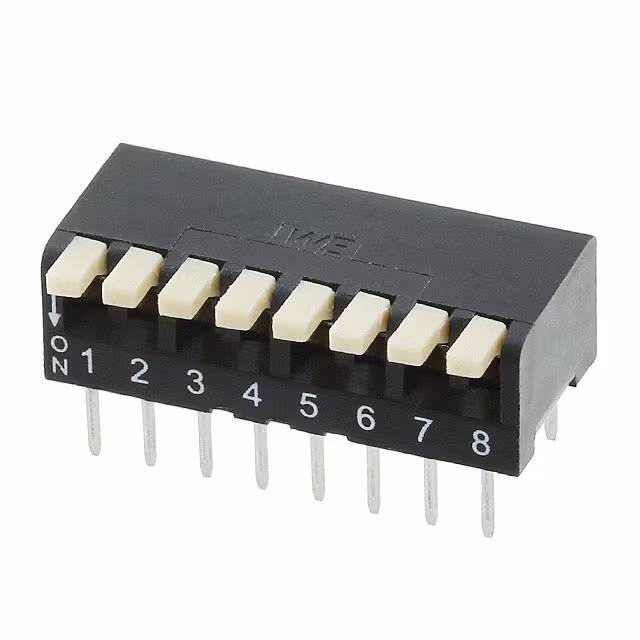

418317270908SWITCH PIANO DIP SPST 0.025A 24V Würth Elektronik |
3,768 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217270903SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,817 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418217170903SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,209 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418217170905SWITCH SLIDE DIP SPST 0.025A 24V Würth Elektronik |
4,594 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
