DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

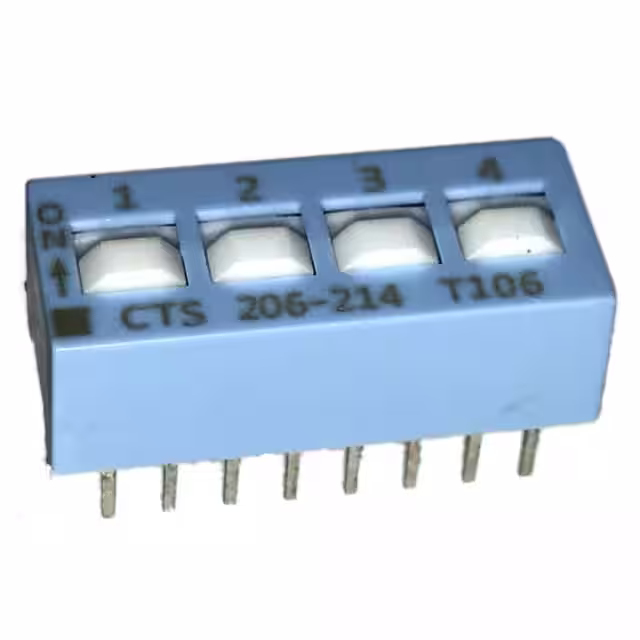

206-214SSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,390 |
|
Datasheet |
206 | Tube | Active | DPST | 4 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
206-123SSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,789 |
|
Datasheet |
206 | Tube | Active | SPDT | 3 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
204-121SWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,883 |
|
Datasheet |
204 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.00mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
206-8RASSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,048 |
|
Datasheet |
206RA | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

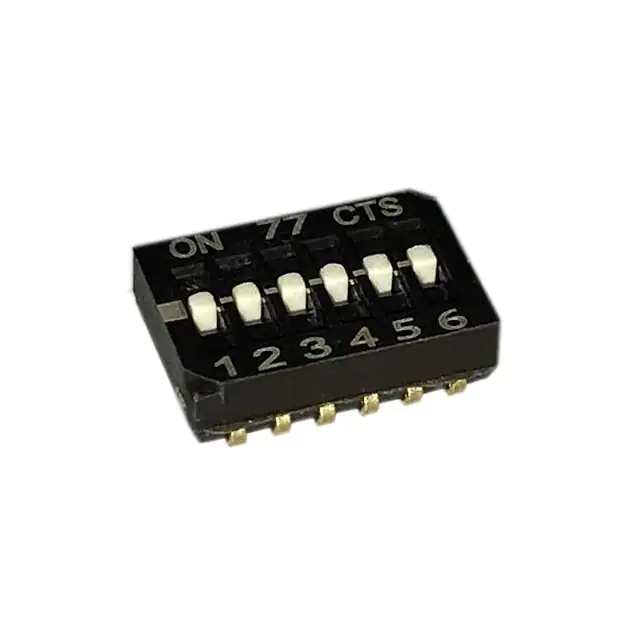

218-6LPSJSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,592 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.106" (2.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|

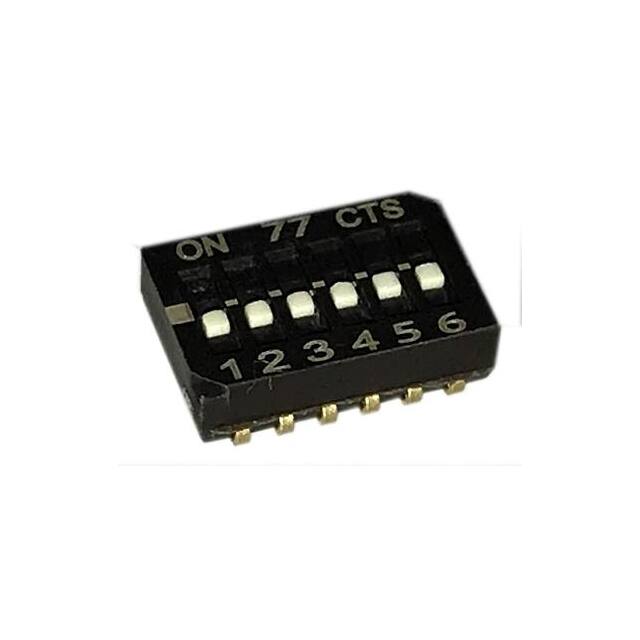

218-6LPSJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,814 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.106" (2.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|

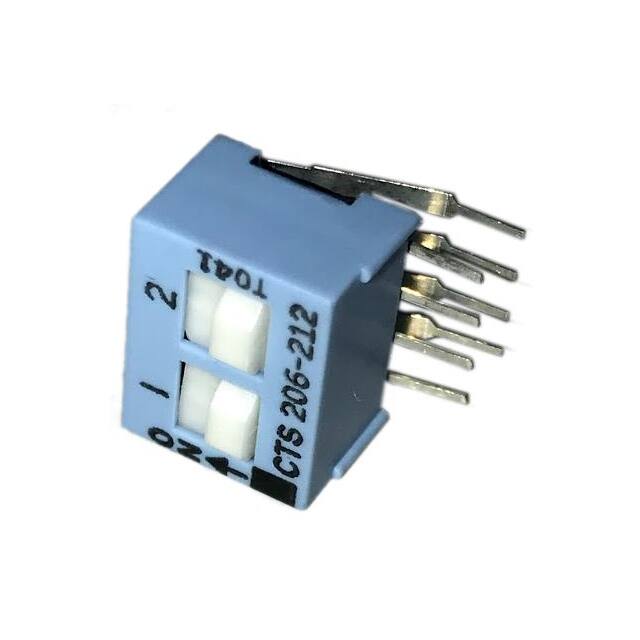

206-212RASSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,294 |
|
Datasheet |
206RA | Tube | Active | DPST | 2 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-12LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,029 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
219-12MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,264 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
206-4RALPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,962 |
|
Datasheet |
206RA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 50mA | 0.400" (10.16mm) | Through Hole, Right Angle | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
