DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

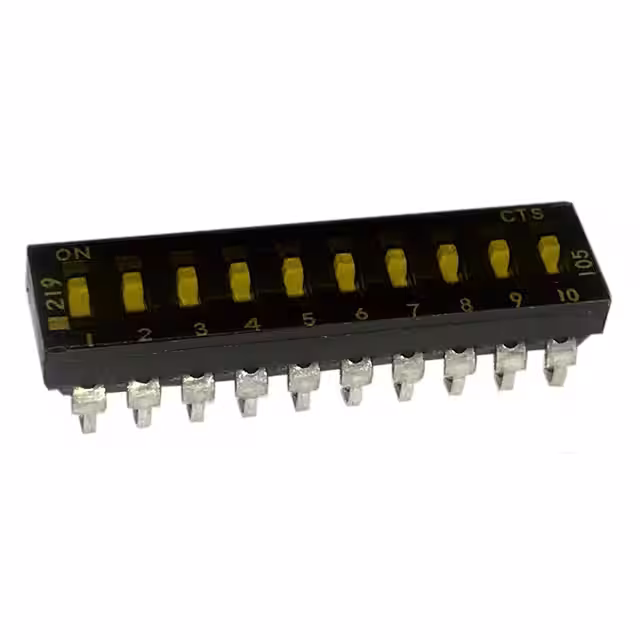

219-10MSTJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,379 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|

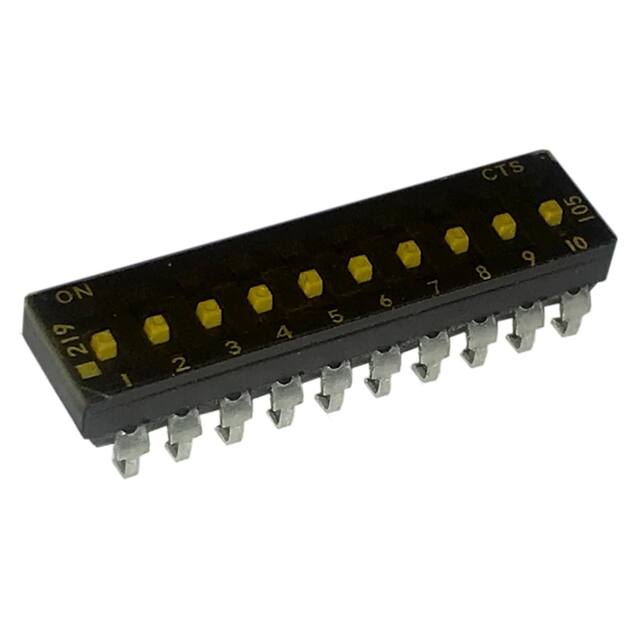

219-10MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,122 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
|

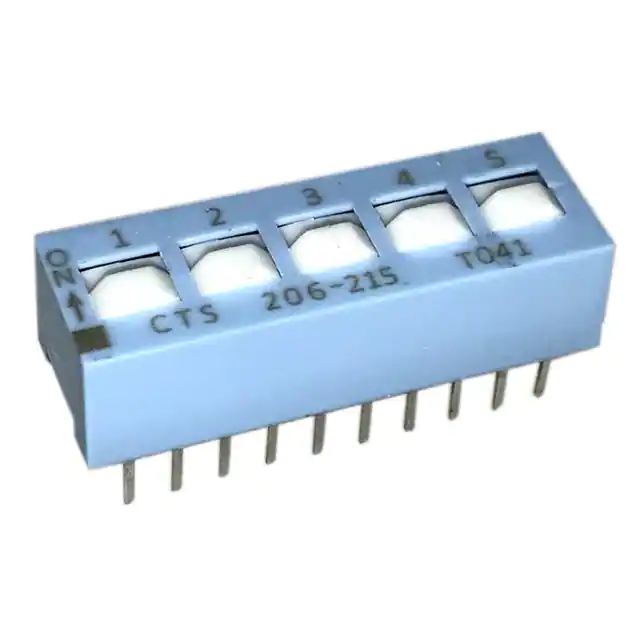

206-215SWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,007 |
|
Datasheet |
206 | Tube | Active | DPST | 5 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
218-8LPSRSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,029 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.104" (2.65mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|
218-8LPSRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,316 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.104" (2.65mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|

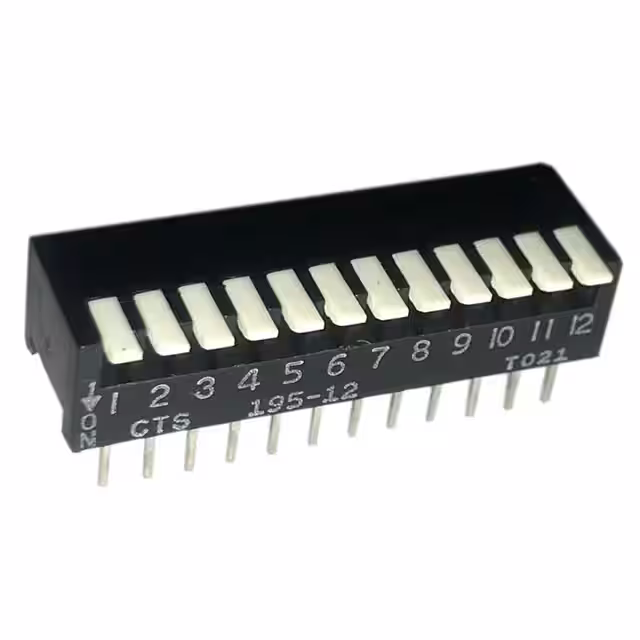

195-12MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
3,513 |
|
Datasheet |
195 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | - | Tin | 50mA | 0.311" (7.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

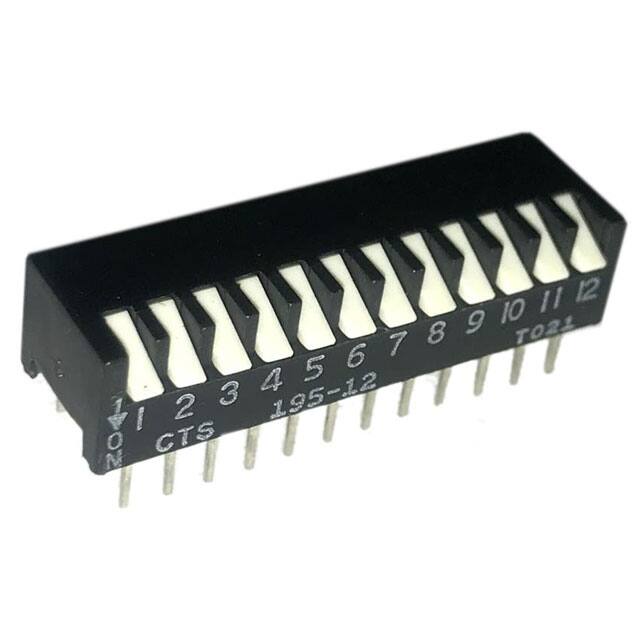

195-12MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,086 |
|
Datasheet |
195 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | - | Tin | 50mA | 0.311" (7.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
204-9STRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,075 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.01mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
204-10SRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,099 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.394" (10.01mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

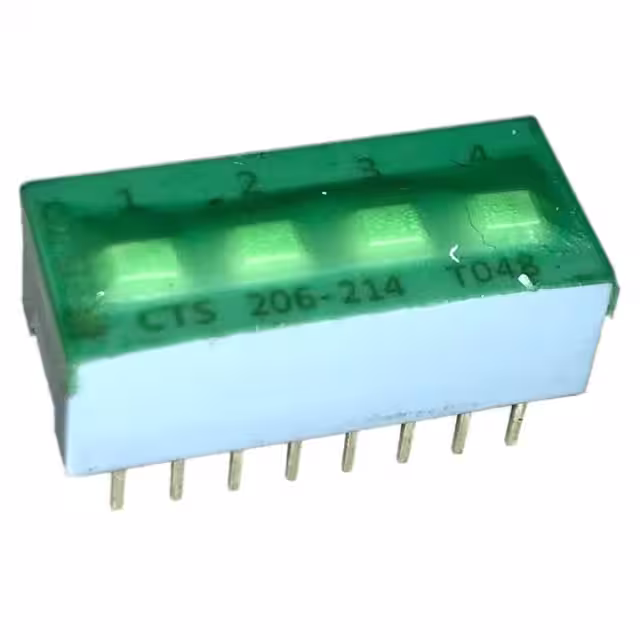

206-214STSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
3,948 |
|
Datasheet |
206 | Tube | Active | DPST | 4 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals, Tape Seal | 0.100" (2.54mm), Full | Yes |
