DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

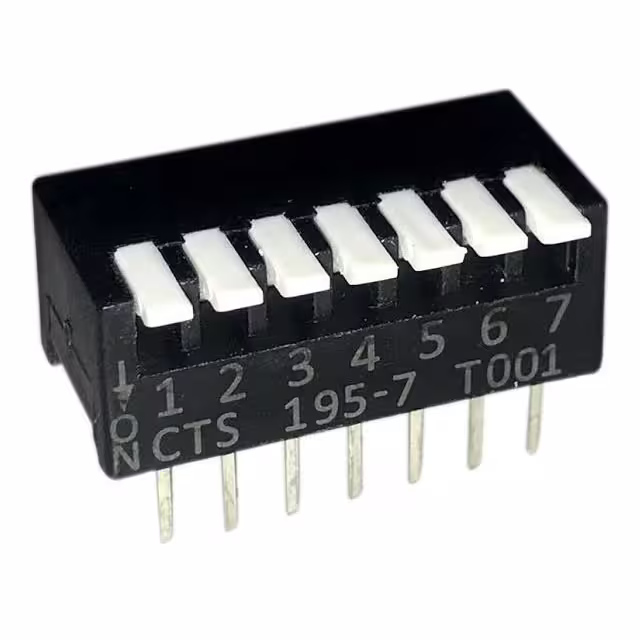

195-7MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
3,039 |
|
Datasheet |
195 | Tube | Active | SPST | 7 | 24VDC | Piano | Raised | - | Tin | 50mA | 0.311" (7.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
195-7MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
3,382 |
|
Datasheet |
195 | Tube | Active | SPST | 7 | 24VDC | Piano | Raised | - | Tin | 50mA | 0.311" (7.90mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

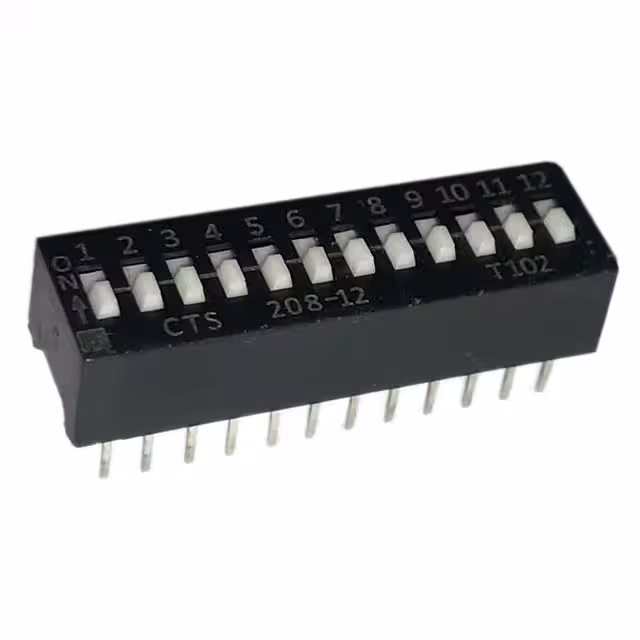

208-12SSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,790 |
|
Datasheet |
208 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | - | Tin | 50mA | 0.334" (8.48mm) | Through Hole | -55°C ~ 85°C | PC Pin | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
206-8ESWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,808 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.434" (11.02mm) | Through Hole | -55°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
219-9ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,667 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.184" (4.67mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
|
219-9ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,910 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.184" (4.67mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-9LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,551 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-9LPSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,023 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.160" (4.06mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-9MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,462 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-9MSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,241 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.170" (4.33mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
