DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8ESJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,302 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.224" (5.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-8ESJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,530 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.224" (5.70mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-8LPSJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,747 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.200" (5.08mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-8LPSJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,144 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.200" (5.08mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-8MSJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,477 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|
219-8MSJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,955 |
|
Datasheet |
219 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 100mA | 0.210" (5.33mm) | Surface Mount | -55°C ~ 85°C | J Lead | Epoxy Sealed Terminals | 0.100" (2.54mm), Full | No |
|

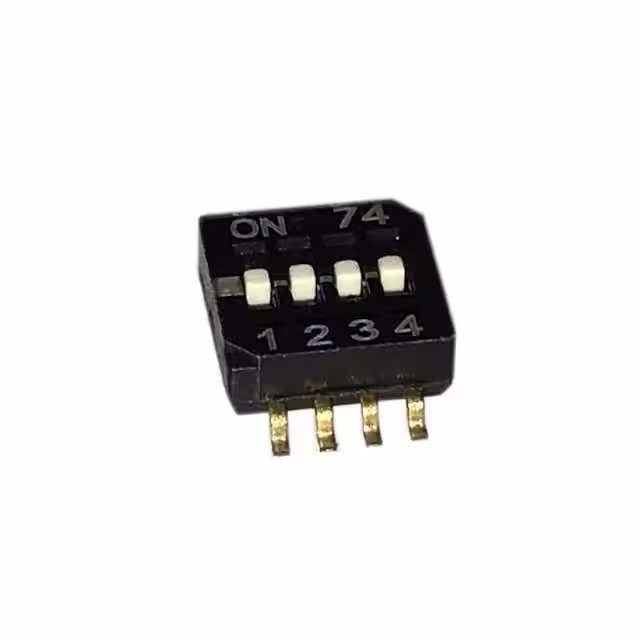

218-4LPSSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,205 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.104" (2.65mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|

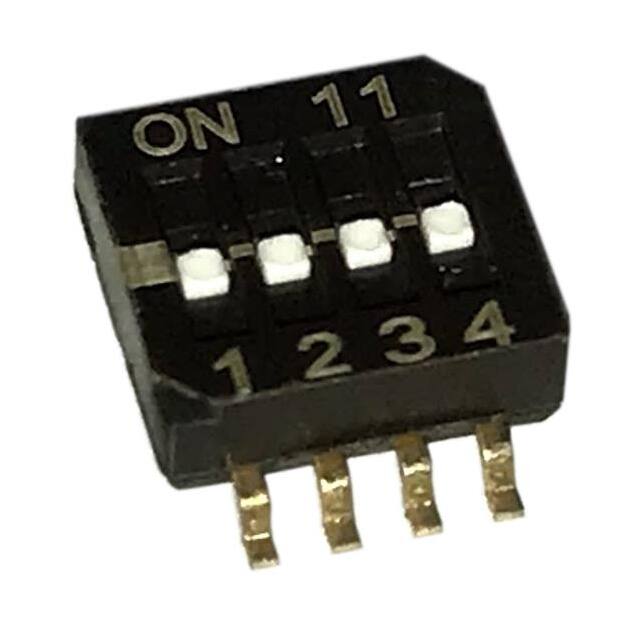

218-4LPSFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,488 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.104" (2.65mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals | 0.050" (1.27mm), Half | No |
|
218-4LPSTRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,823 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.104" (2.65mm) | Surface Mount | -55°C ~ 85°C | Gull Wing | Epoxy Sealed Terminals, Tape Seal | 0.050" (1.27mm), Half | Yes |
|
206-7ESWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,787 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | - | Gold | 50mA | 0.434" (11.02mm) | Through Hole | -55°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
