DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
94HAC08RATSW ROTARY DIP OCT COMP 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Octal Complement | 8 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
90HBW10TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
90HB | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

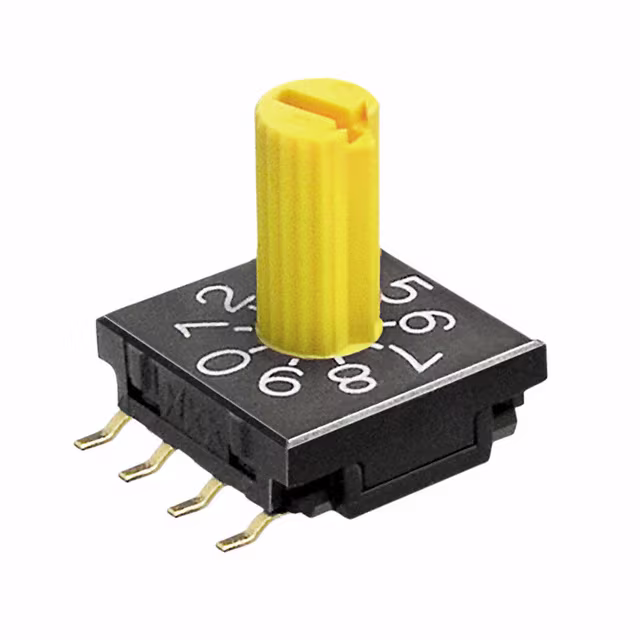

FR02KC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR02 | Tray | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR02KC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
FR02 | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

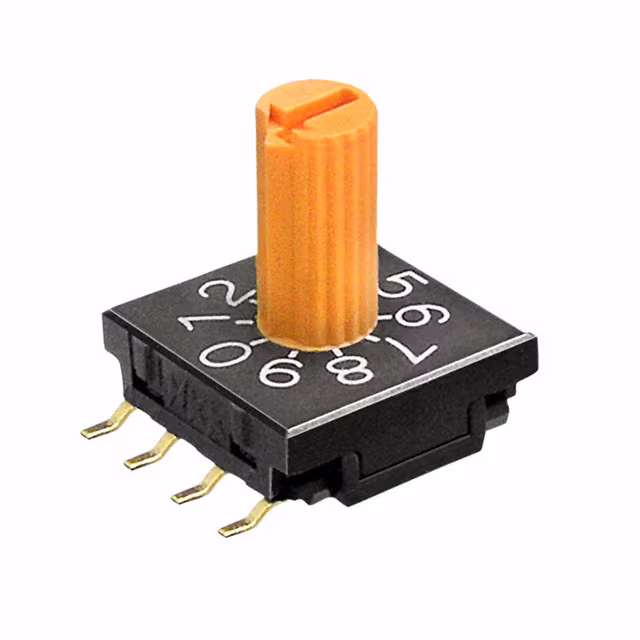

FR02KR10PSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Datasheet |
FR02 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
94HBB08JTSWITCH ROTARY DIP OCTAL 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.520" (13.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBB16JTSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.520" (13.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HCB16JTSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.420" (10.67mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HFC16JTSW ROTARY DIP HEX COMP 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBB10JTSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.520" (13.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
FR02FC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR02 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR02FC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
FR02 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
94HFC10JTSW ROTARY DIP BCD COMP 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
FR01KC10P-WSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01AR10HB-06XLSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
P65SMT101TRDIP ROTARY SWITCH P60 10MM |
0 |
|
- |
P65 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
IKN0804000SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Datasheet |
IKN | Tape & Reel (TR) | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
DHS8ADIPTRONICS HALF PITCH DIP |
0 |
|
Datasheet |
DHS | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
DHN08TDIP SWITCH IKH HALF PITCH |
0 |
|
- |
DHN | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
94HEB08TSWITCH ROTARY DIP OCTAL 0.1A 50V |
0 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
