DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-0103SWITCH SLIDE DIP SPST 0.03A 30V |
4,871 |
|
Datasheet |
A6D | Tray | Active | SPST | 10 | 30VDC | Slide (Standard) | Raised | - | Gold | 30mA | 0.213" (5.40mm) | Through Hole | -20°C ~ 70°C | PC Pin | IP64 - Dust Tight, Water Resistant | 0.100" (2.54mm), Full | Yes |
|
78H01RATSWITCH SLIDE DIP 4PST 0.15A 30V |
4,100 |
|
Datasheet |
78 | Tube | Active | 4PST | 1 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
CD10CM0SBRSW ROTARY DIP BCD COMP 0.4VA 20V |
3,888 |
|
Datasheet |
CD | Tape & Reel (TR) | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.4VA | 0.168" (4.27mm) | Surface Mount | -25°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
1977105-1SWITCH SLIDE DIP SPST 0.01A 5V |
2,140 |
|
Datasheet |
STR | Tube | Obsolete | SPST | 2 | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 10mA | 0.244" (6.20mm) | Through Hole, Right Angle | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
DHN10TVTRDIP SWITCH IKH HALF PITCH |
3,038 |
|
- |
DHN | Bulk | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 25mA | 0.059" (1.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.050" (1.27mm), Half | Yes |
|
435802-2SWITCH PIANO DIP SPST 0.025A 24V |
3,770 |
|
Datasheet |
7000 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | Copper Alloy | Gold | 25mA | 0.290" (7.37mm) | Through Hole, Right Angle | -55°C ~ 105°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
CRD16RL1CBSWITCH ROTARY DIP HEX 0.4VA 20V |
4,733 |
|
Datasheet |
CRD | Tray | Active | Hexadecimal | 16 | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.4VA | 0.543" (13.80mm) | Through Hole | -20°C ~ 85°C | PC Pin | Process Sealed | 0.100" (2.54mm), Full | Yes |
|
|
78J01RATSWITCH SLIDE DIP SPDT 0.15A 30V |
4,356 |
|
Datasheet |
78 | Tube | Active | SPDT | 1 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

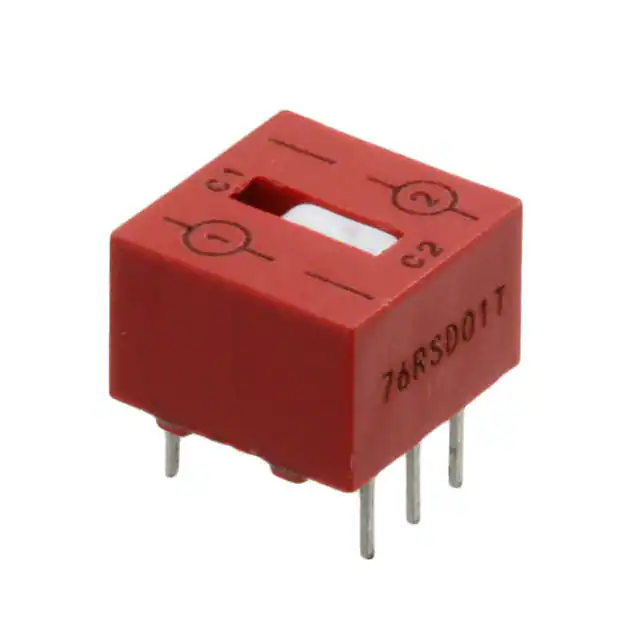

76RSD01TSWITCH ROCKER DIP DPDT 0.15A 30V |
2,581 |
|
Datasheet |
76 | Tube | Active | DPDT | 1 | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 150mA | 0.267" (6.78mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
IKN0200000SWITCH SLIDE DIP SPST 0.1A 24V |
3 |
|
Datasheet |
IKN | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 100mA | 0.157" (4.00mm) | Through Hole | -40°C ~ 100°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
ARE103.3KSWITCH SLIDE DIP SPST 0.1A 24V |
3,839 |
|
- |
ARE | Tube | Obsolete | SPST | 10 | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 100mA | 0.228" (5.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
78B05RATSWITCH SLIDE DIP SPST 0.15A 30V |
3,448 |
|
Datasheet |
78 | Tube | Active | SPST | 5 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
78HJ02GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
3,725 |
|
Datasheet |
78H | Tube | Active | SPDT | 2 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.327" (8.30mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
78RB04SRATSWITCH SLIDE DIP SPST 0.15A 30V |
3,282 |
|
Datasheet |
78 | Tube | Active | SPST | 4 | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 150mA | 0.380" (9.64mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|

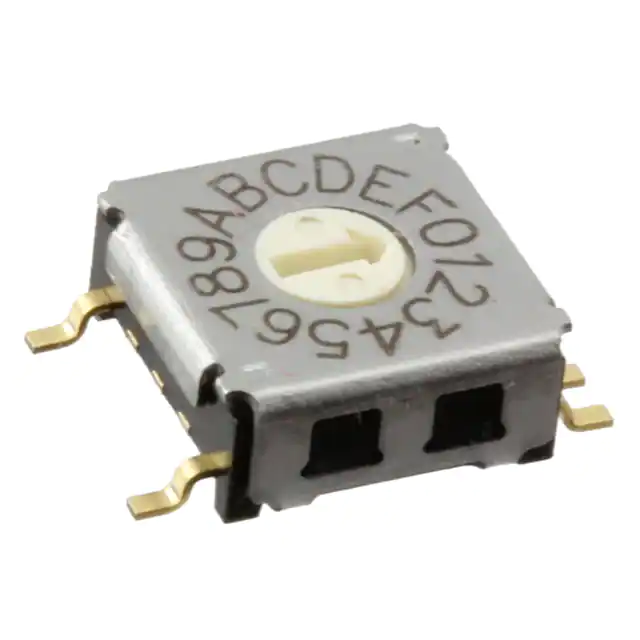

A6KS-164RF-R100SWITCH ROTARY DIP HEX 0.025A 24V |
3,236 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 25mA | 0.118" (3.00mm) | Surface Mount | -30°C ~ 80°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|
A6KS-164RS-R100SWITCH ROTARY DIP HEX 0.025A 24V |
4,334 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | - | Gold | 25mA | 0.236" (6.00mm) | Surface Mount | -30°C ~ 80°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|

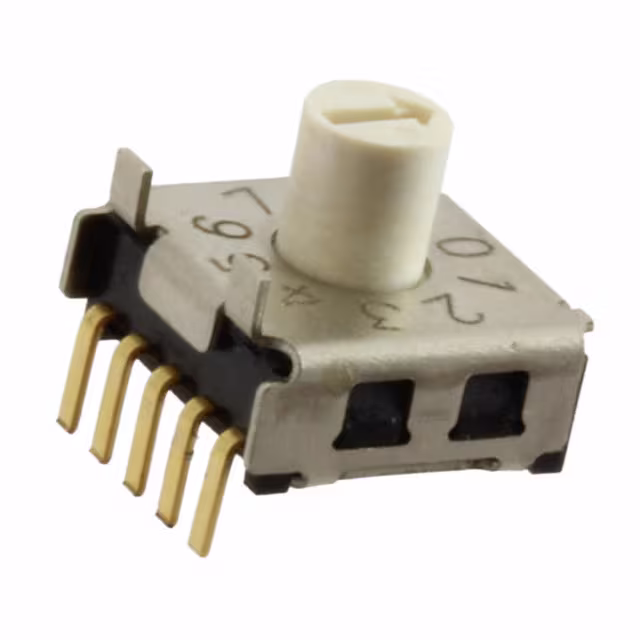

A6KSV-104RS-R100SWITCH ROTARY DIP BCD 0.025A 24V |
3,962 |
|
Datasheet |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | - | Gold | 25mA | 0.293" (7.45mm) | Surface Mount, Right Angle | -30°C ~ 80°C | Gull Wing | - | 0.050" (1.27mm), Half | No |
|
|
78J03STSWITCH SLIDE DIP SPDT 0.15A 30V |
4,806 |
|
Datasheet |
78 | Tube | Active | SPDT | 3 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
78F05STSWITCH SLIDE DIP DPST 0.15A 30V |
4,143 |
|
Datasheet |
78 | Tube | Active | DPST | 5 | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 150mA | 0.315" (8.00mm) | Through Hole | -40°C ~ 85°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
|
|
ARF0810KSWITCH SLIDE DIP SPST 0.1A 24V |
4,299 |
|
- |
ARF | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 100mA | 0.189" (4.80mm) | Through Hole | -30°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
