DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAR16PSWITCH ROTARY DIP HEX 0.1A 5V |
3,446 |
|
Datasheet |
DR | Tray | Obsolete | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 100mA | 1.104" (28.05mm) | Panel Mount | -25°C ~ 75°C | PC Pin | Sealed | 0.100" (2.54mm), Full | Yes |
|
|
DRKC10HSW ROTARY DIP BCD COMP 0.1A 5V |
3,197 |
|
Datasheet |
DR | Tray | Obsolete | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 100mA | 0.394" (10.00mm) | Through Hole, Right Angle | -25°C ~ 75°C | PC Pin | Sealed | 0.100" (2.54mm), Full | Yes |
|
|
DRKR10HSWITCH ROTARY DIP BCD 0.1A 5V |
3,650 |
|
Datasheet |
DR | Tray | Obsolete | BCD | 10 | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 100mA | 0.394" (10.00mm) | Through Hole, Right Angle | -25°C ~ 75°C | PC Pin | Sealed | 0.100" (2.54mm), Full | Yes |
|

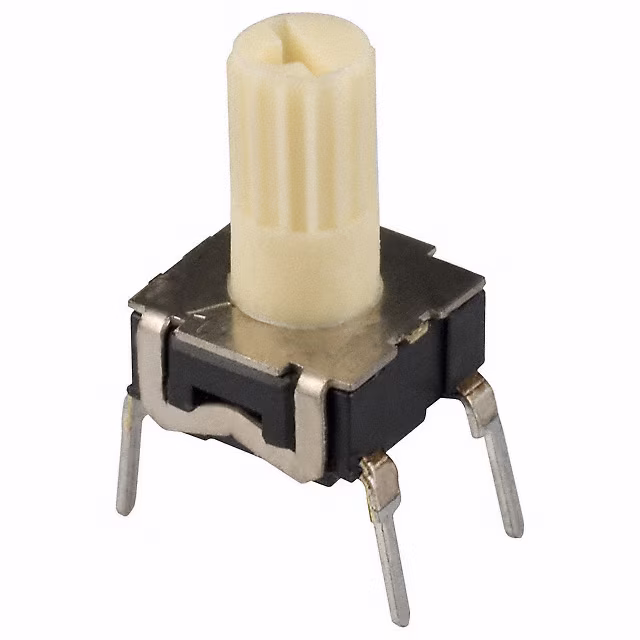

RTE0201N04SWITCH ROTARY DIP SPDT 0.1A 30V |
3,658 |
|
Datasheet |
RTE | Tube | Obsolete | SPDT | 2 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | 0.463" (11.75mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

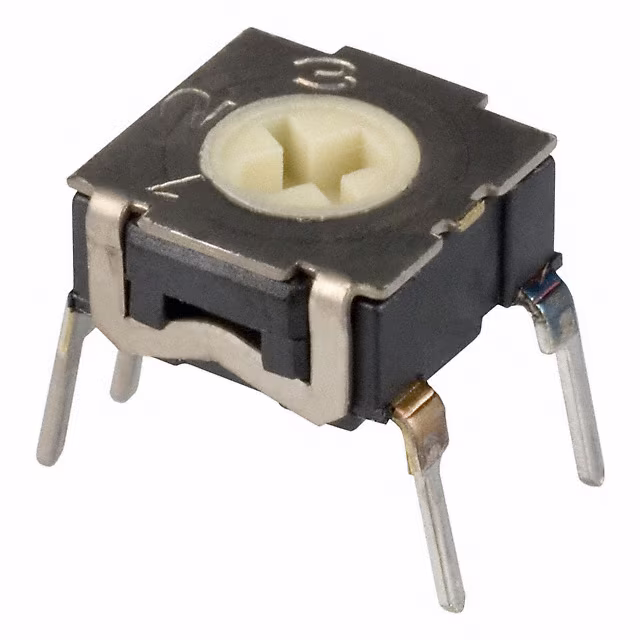

RTE0300N04SWITCH ROTARY DIP SP3T 0.1A 30V |
2,337 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 100mA | 0.167" (4.25mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

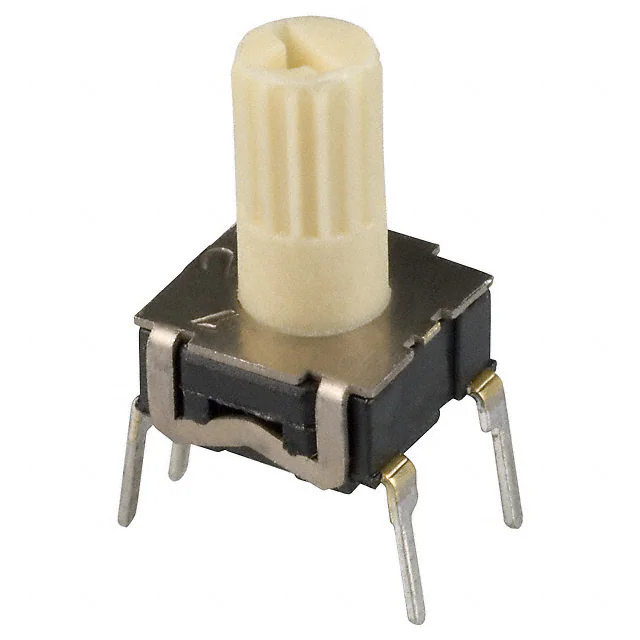

RTE0301N04SWITCH ROTARY DIP SP3T 0.1A 30V |
4,716 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 100mA | 0.463" (11.75mm) | Through Hole | -25°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

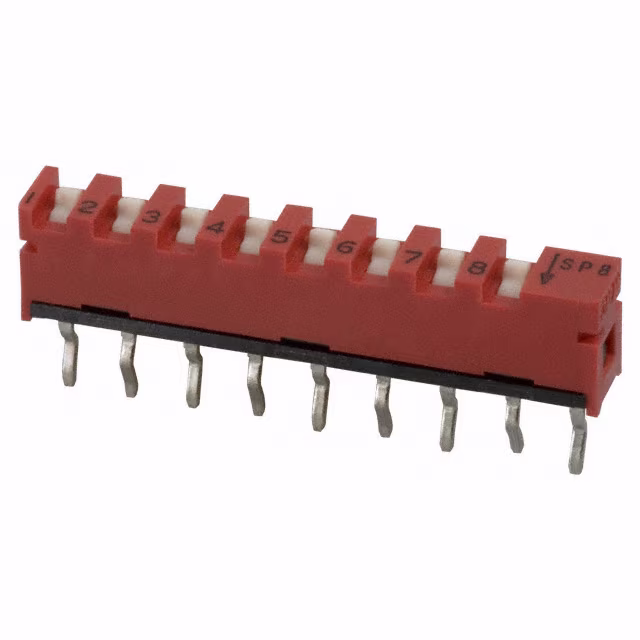

SP08BSWITCH SLIDE DIP SPST 0.01A 20V |
2,566 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.196" (4.99mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

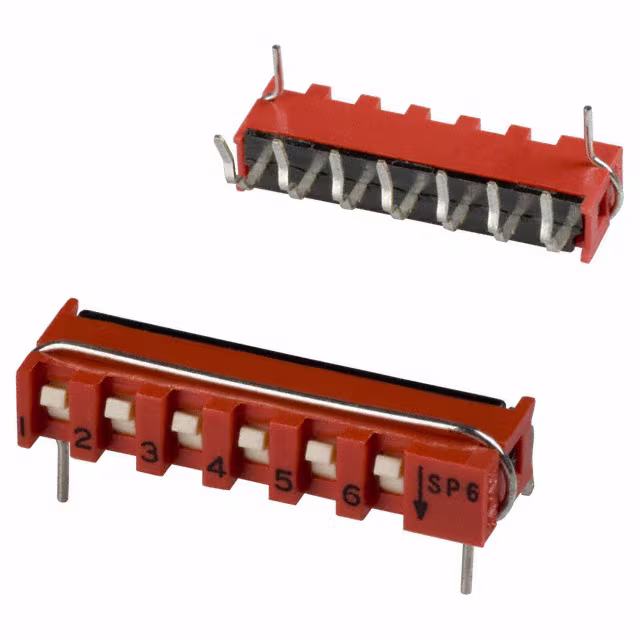

SP06ABSWITCH SLIDE DIP SPST 0.01A 20V |
2,684 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.169" (4.30mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

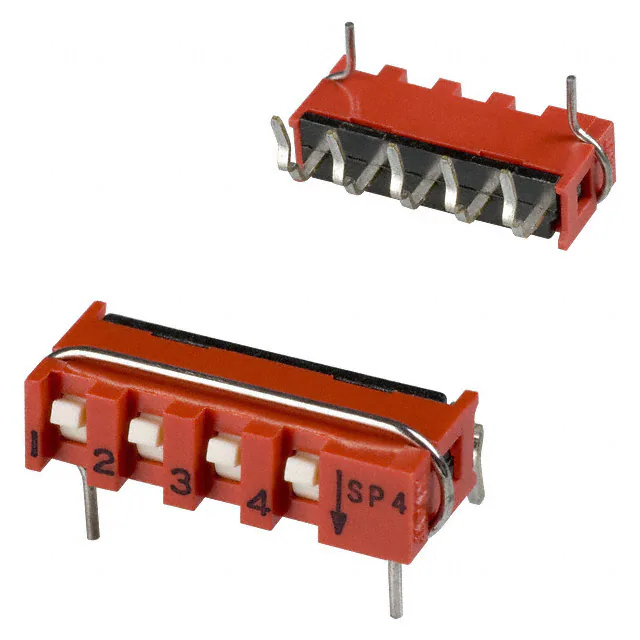

SP04ABSWITCH SLIDE DIP SPST 0.01A 20V |
3,723 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.169" (4.30mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

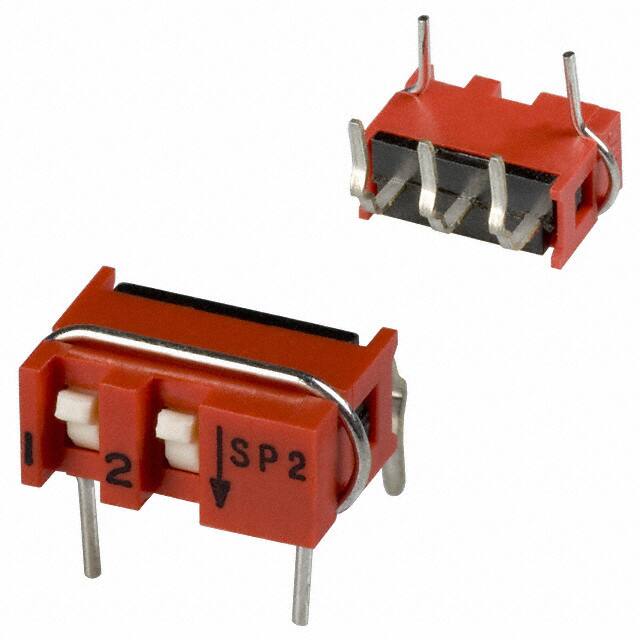

SP02ABSWITCH SLIDE DIP SPST 0.01A 20V |
2,561 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.169" (4.30mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

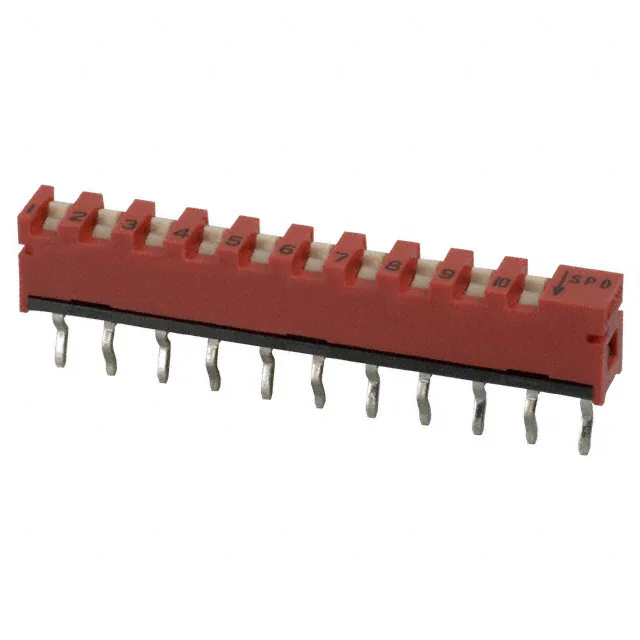

SP10BSWITCH SLIDE DIP SPST 0.01A 20V |
2,636 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.196" (4.99mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

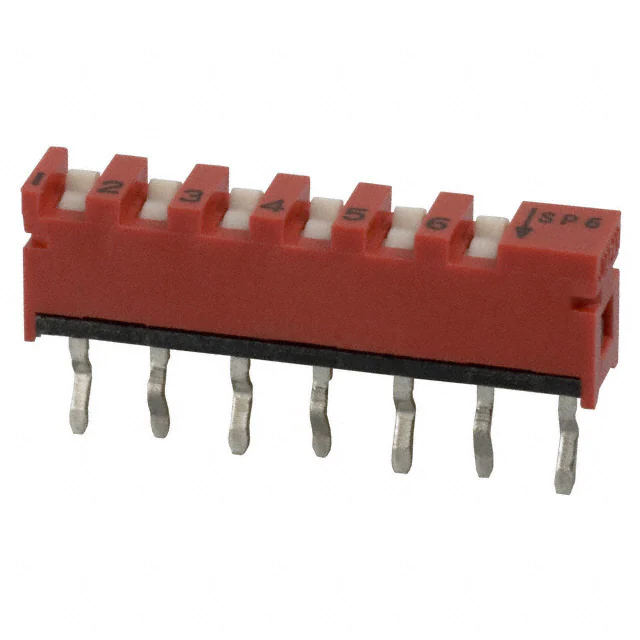

SP06BSWITCH SLIDE DIP SPST 0.01A 20V |
3,499 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.196" (4.99mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

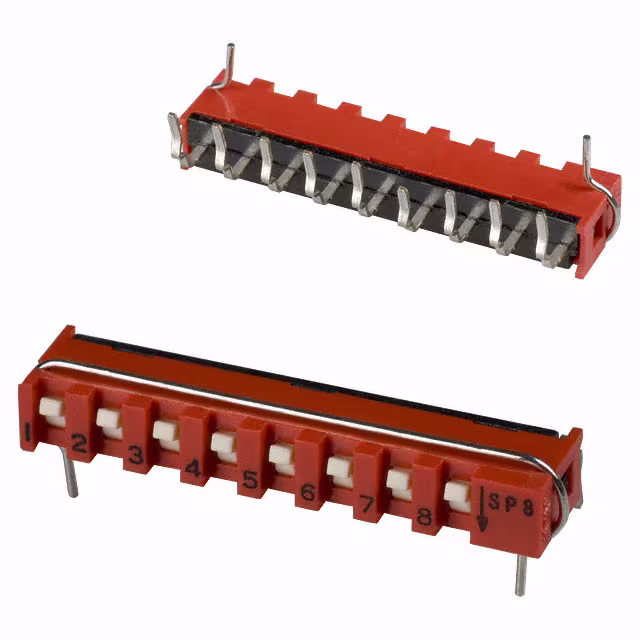

SP08ABSWITCH SLIDE DIP SPST 0.01A 20V |
4,585 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.169" (4.30mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

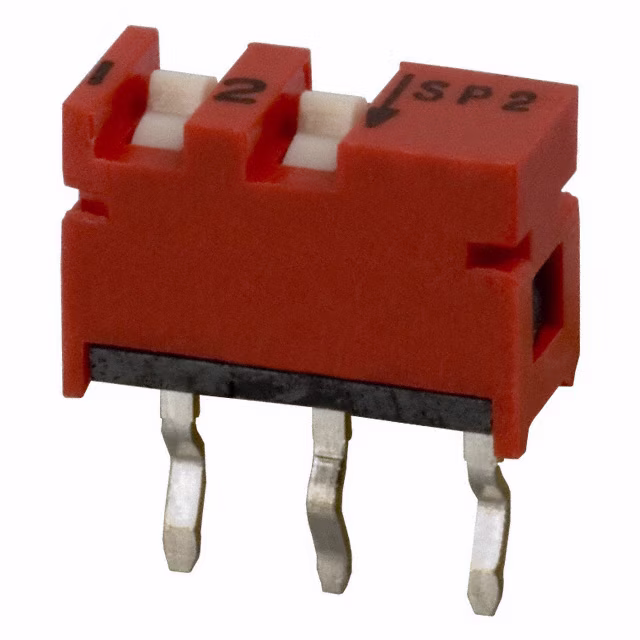

SP02BSWITCH SLIDE DIP SPST 0.01A 20V |
4,428 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.196" (4.99mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

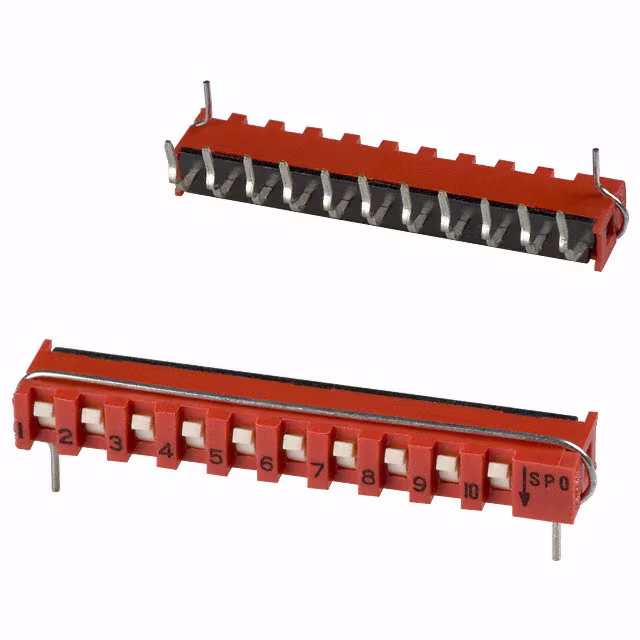

SP10ABSWITCH SLIDE DIP SPST 0.01A 20V |
3,383 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.169" (4.30mm) | Through Hole, Right Angle | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

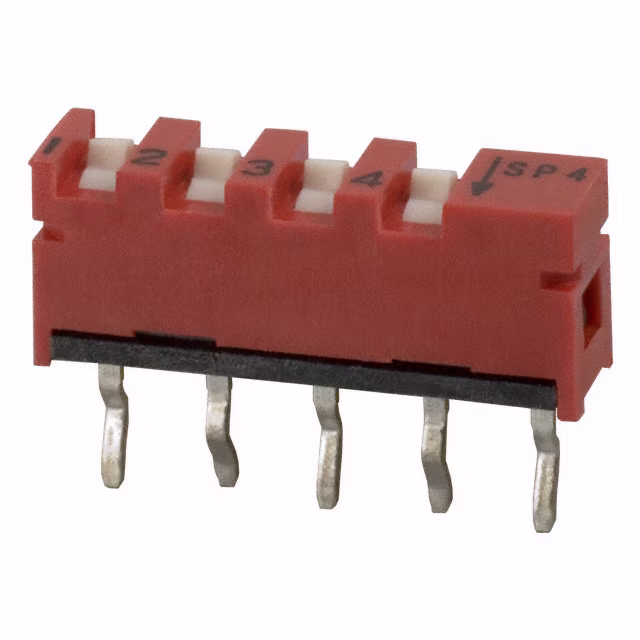

SP04BSWITCH SLIDE DIP SPST 0.01A 20V |
4,634 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 10mA | 0.196" (4.99mm) | Through Hole | -20°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

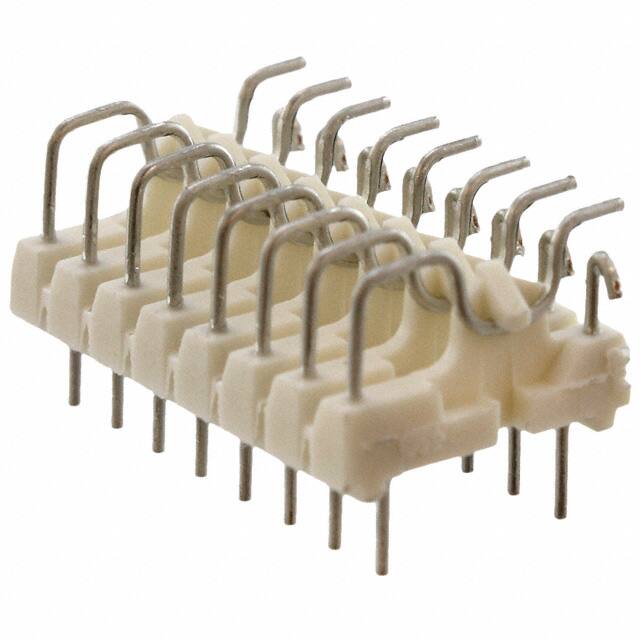

1393546-8SWITCH DIP SPST |
2,018 |
|
Datasheet |
DIP-FIX | Tray | Obsolete | SPST | 8 | - | - | Raised | - | - | - | 0.319" (8.10mm) | Through Hole | - | PC Pin | - | 0.100" (2.54mm), Full | No |
|
2-1393546-0SWITCH DIP SPDT |
3,189 |
|
Datasheet |
DIP-FIX | Tray | Obsolete | SPDT | 12 | - | - | Raised | - | - | - | 0.319" (8.10mm) | Through Hole | - | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
2-435166-9SWITCH ROCKER DIP SPST |
4,894 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 2 | - | Rocker | Raised | - | - | - | - | Through Hole | - | - | - | - | No |
|

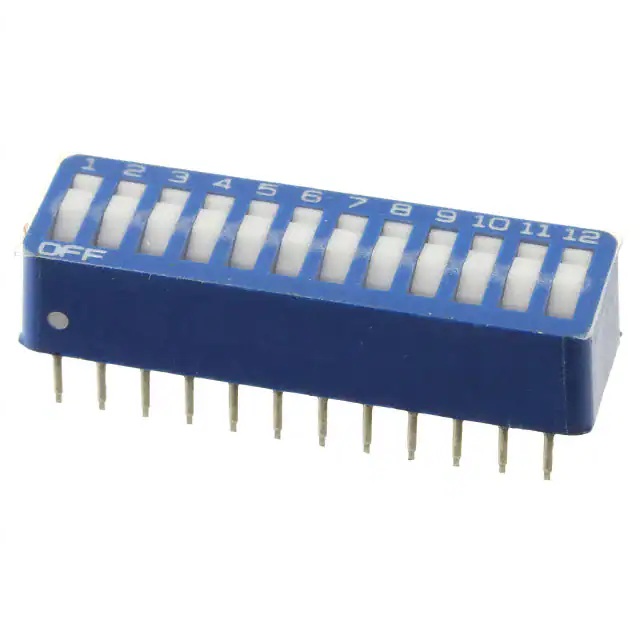

3-435668-2SWITCH ROCKER DIP SPST 0.06A 5V |
3,898 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 12 | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 60mA | 0.290" (7.37mm) | Through Hole | -55°C ~ 105°C | PC Pin | Tape Seal | 0.100" (2.54mm), Full | Yes |
