DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
2,807 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 12 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
435469-7SW ROCKER DIP 4PST 0.025A 24V |
3,346 |
|
Datasheet |
7000 | Tube | Obsolete | 4PST | 1 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
435470-3SW ROCKER DIP SPDT 0.025A 24V |
3,307 |
|
Datasheet |
7000 | Bulk | Obsolete | SPDT | 4 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
435470-9SW ROCKER DIP DPDT 0.025A 24V |
4,498 |
|
Datasheet |
7000 | Tube | Obsolete | DPDT | 2 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

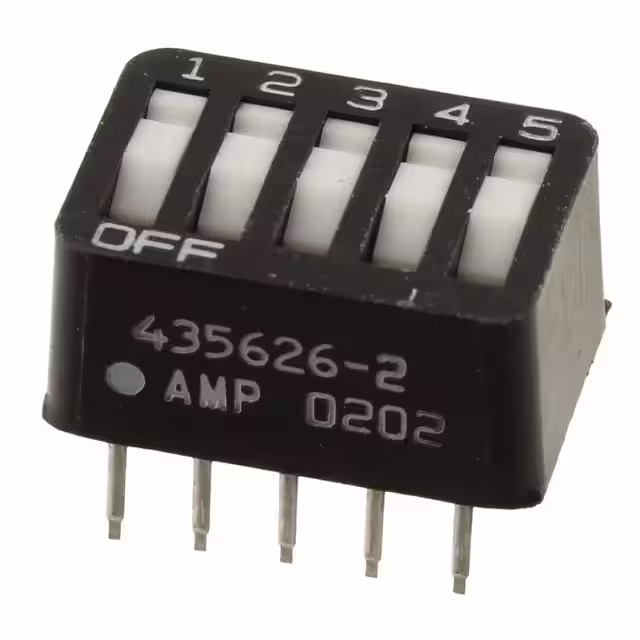

435626-2SW ROCKER DIP SPST 0.025A 24V |
4,568 |
|
Datasheet |
7000 | Bulk | Obsolete | SPST | 5 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
3-435469-1SW TOGGLE DIP 4PST 0.025A 24V |
4,343 |
|
Datasheet |
7000 | Tube | Obsolete | 4PST | 1 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
1-1825008-0SWITCH ROTARY DIP BCD |
3,012 |
|
Datasheet |
DR | Bulk | Obsolete | BCD | 10 | - | - | Rotary with Shaft | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
1-1825008-1SWITCH ROTARY DIP HEX COMP |
3,032 |
|
Datasheet |
DR | Bulk | Obsolete | Hexadecimal Complement | 16 | - | - | Rotary with Shaft | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
1-1825013-1SWITCH ROTARY DIP HEX 0.4VA 20V |
4,125 |
|
Datasheet |
MRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1-1825033-1SWITCH ROTARY DIP HEX 0.4VA 20V |
3,527 |
|
Datasheet |
DR | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
1825008-7SW ROTARY DIP HEX COMP 0.4VA 20V |
3,262 |
|
Datasheet |
DR | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
1825033-1SWITCH ROTARY DIP BCD 0.4VA 20V |
3,727 |
|
Datasheet |
DR | Bulk | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
1825428-1SWITCH SLIDE DIP SPST 0.1A 24V |
3,848 |
|
Datasheet |
ARE | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825444-3SWITCH ROTARY DIP HEX 0.4VA 20V |
3,061 |
|
Datasheet |
RRD | Bulk | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825444-5SW ROTARY DIP HEX COMP 0.4VA 20V |
4,760 |
|
Datasheet |
RRD | Bulk | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
2-1825033-1SWITCH ROTARY DIP BCD 0.4VA 20V |
3,615 |
|
Datasheet |
DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
2-1825033-6SW ROTARY DIP BCD COMP 0.4VA 20V |
4,797 |
|
Datasheet |
DR | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
2-5435802-9SWITCH PIANO DIP SPST |
2,138 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 4 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
3-1825033-6SW ROTARY DIP HEX COMP 0.4VA 20V |
3,301 |
|
Datasheet |
DR | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
4-1825033-1SWITCH ROTARY DIP BCD |
2,089 |
|
Datasheet |
DR | Bulk | Obsolete | BCD | 10 | - | - | Rotary with Shaft | Raised | - | - | - | Through Hole | - | - | No | - | - |
