DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KG03RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,216 |
|
Datasheet |
KG | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

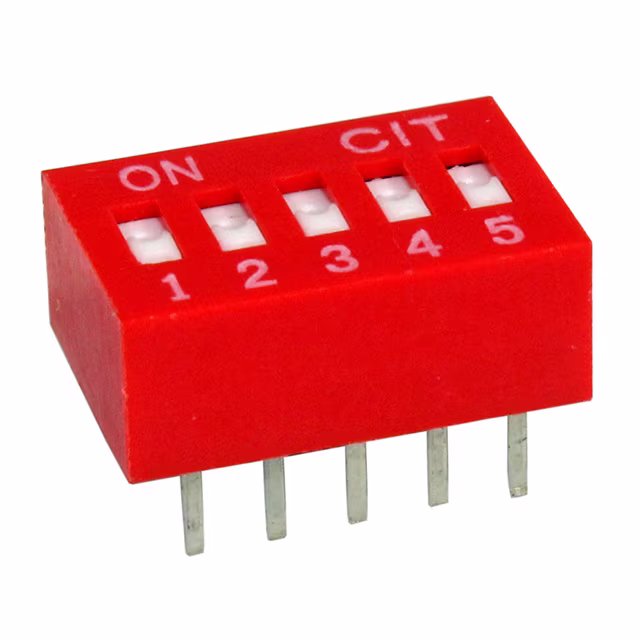

KG05RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,213 |
|
Datasheet |
KG | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KG05RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,417 |
|
Datasheet |
KG | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KG06RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,445 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
KG06RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,976 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

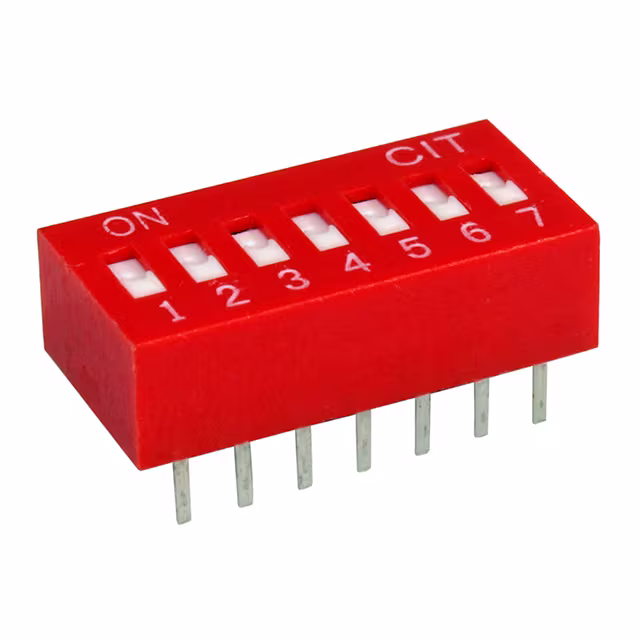

KG07RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,543 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|

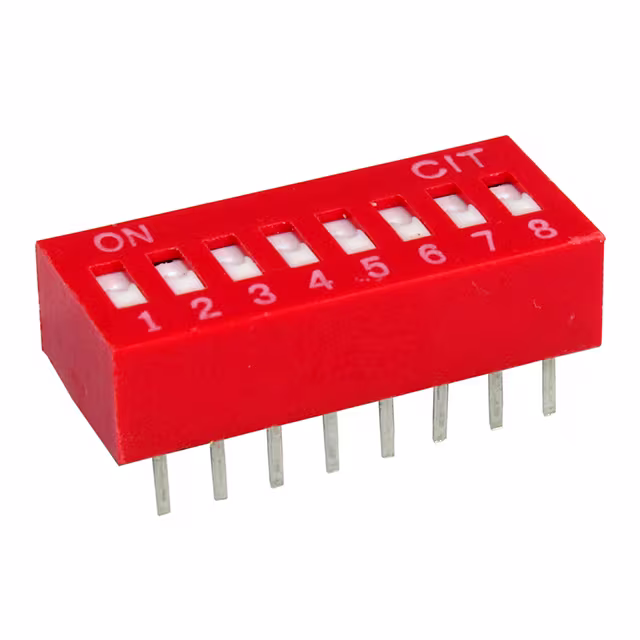

KG08RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,791 |
|
Datasheet |
KG | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
|
|
KG07RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,323 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KG08RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,243 |
|
Datasheet |
KG | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|

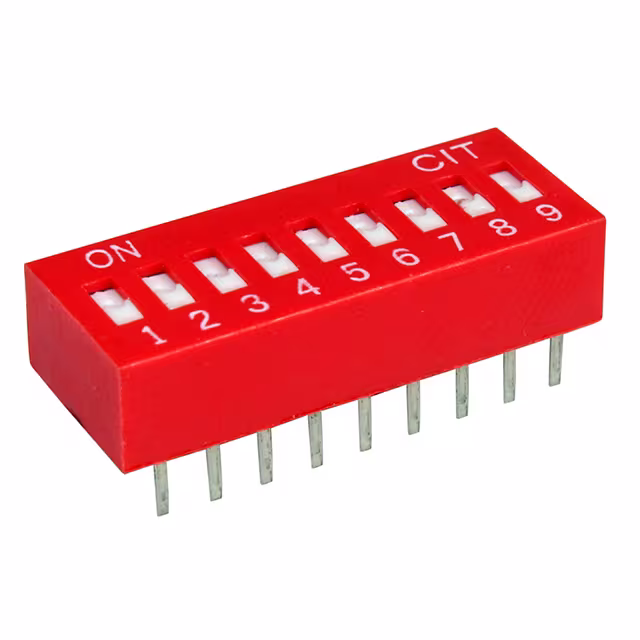

KG09RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,245 |
|
Datasheet |
KG | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.217" (5.50mm) | Through Hole | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | No |
