Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height

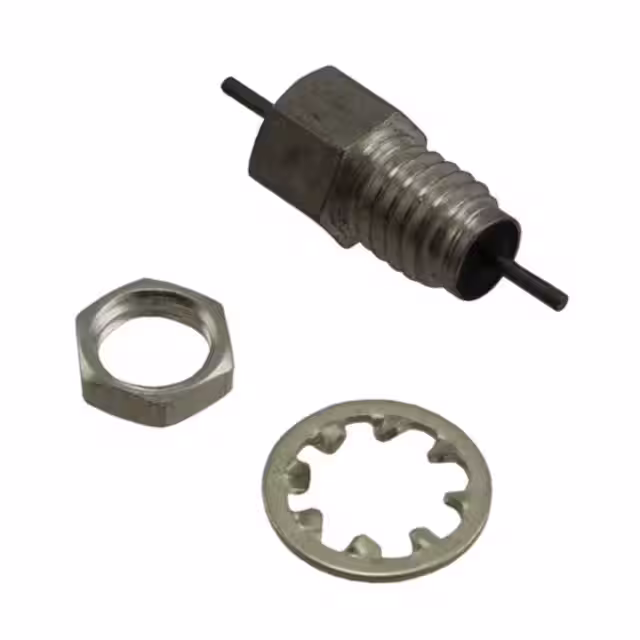

M15733/61-0001 FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	2,346	-	RFQ	-	-	Axial, Bushing	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	70dB @ 1GHz ~ 10GHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	-	200V	-	-	Chassis Mount	0.250" Dia x 0.528" L (6.35mm x 13.41mm)	-

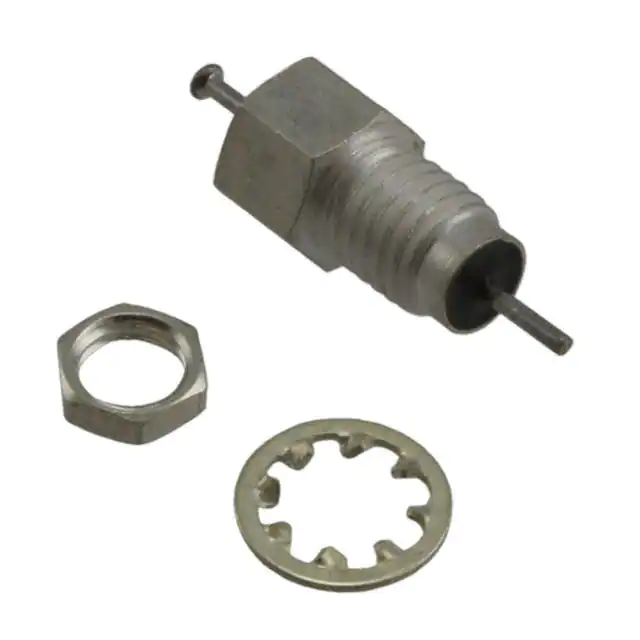

M15733/61-0002 FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	2,157	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	70dB @ 1GHz ~ 10GHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	-	200V	-	-	Chassis Mount	0.250" Dia x 0.470" L (6.35mm x 11.95mm)	-

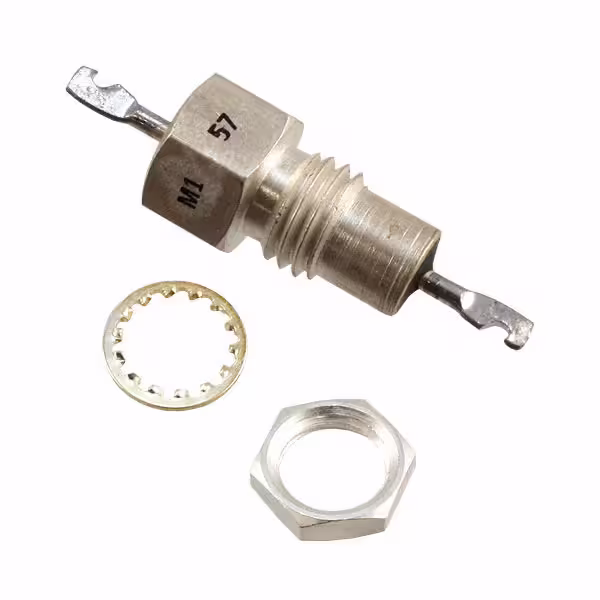

M15733/61-0003 FILTER LC(PI) 2000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	4,749	-	RFQ	-	-	Axial, Bushing - 2 Notched Leads	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	55dB @ 100MHz	-	25 A	C = 2000pF	No	-55°C ~ 125°C	-	500V	-	-	Chassis Mount	0.375" Dia x 0.687" L (9.53mm x 17.45mm)	-
M15733/61-0004 FILTER LC(PI) 2000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	3,269	-	RFQ	-	-	Axial, Bushing - 2 Notched Leads	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	55dB @ 100MHz	-	25 A	C = 2000pF	No	-55°C ~ 125°C	-	500V	-	-	Chassis Mount	0.375" Dia x 0.687" L (9.53mm x 17.45mm)	-

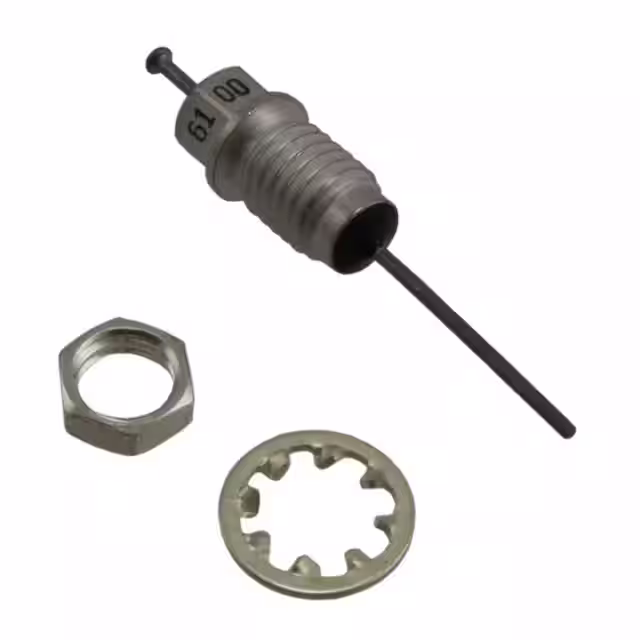

M15733/61-0005 FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	3,101	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	70dB @ 1GHz ~ 10GHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	-	200V	-	-	Chassis Mount	0.250" Dia x 0.468" L (6.35mm x 11.89mm)	-

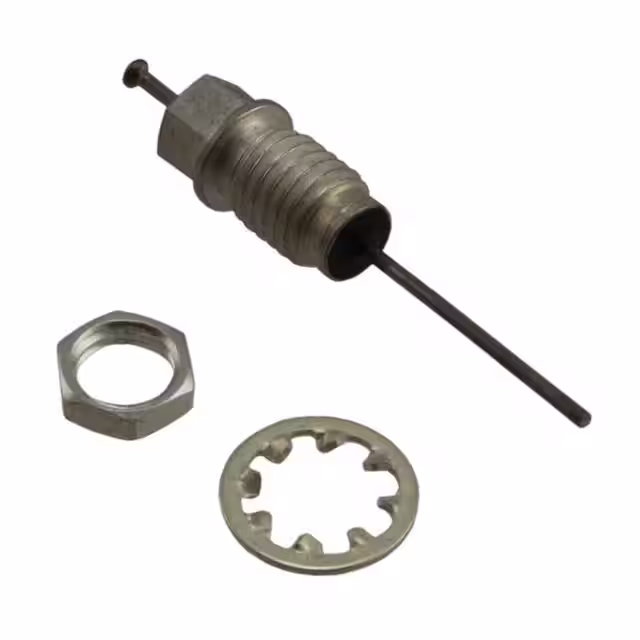

M15733/61-0006 FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	3,700	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	70dB @ 1GHz ~ 10GHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	-	200V	-	-	Chassis Mount	0.235" Dia x 0.468" L (5.97mm x 11.89mm)	-
M15733/61-0007 FILTER LC(PI) 5000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	4,194	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	65dB @ 100MHz	-	10 A	C = 5000pF	No	-55°C ~ 125°C	-	100V	-	-	Chassis Mount	0.250" Dia x 0.468" L (6.35mm x 11.89mm)	-

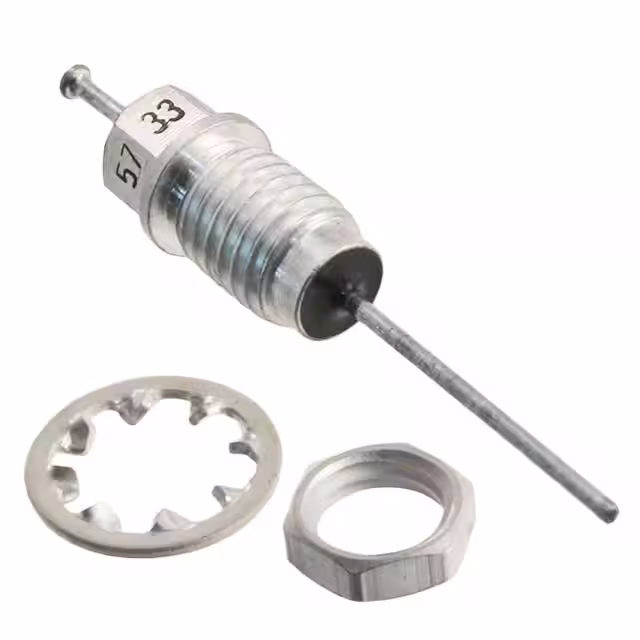

M15733/61-0010 FILTER LC(PI) 5000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	4,872	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	65dB @ 100MHz	-	10 A	C = 5000pF	No	-55°C ~ 125°C	-	100V	-	-	Chassis Mount	0.250" Dia x 0.468" L (6.35mm x 11.89mm)	-

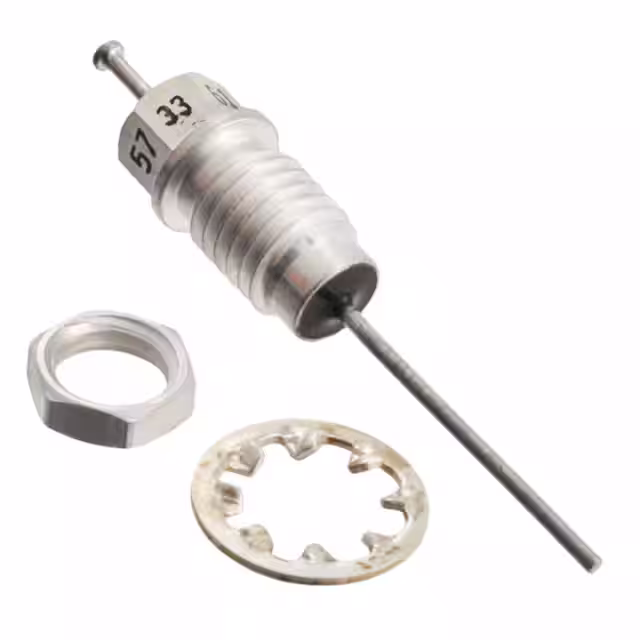

M15733/61-0011 FILTER LC(PI) 5000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	3,773	-	RFQ	-	-	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	65dB @ 100MHz	-	10 A	C = 5000pF	No	-55°C ~ 125°C	-	100V	-	-	Chassis Mount	0.235" Dia x 0.437" L (5.97mm x 11.11mm)	-
M15733/66-0001 FILTER LC(PI) 1750PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	2,252	-	RFQ	-	-	Axial, Eyelet - No Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	35dB @ 100MHz	-	10 A	C = 1750pF	No	-55°C ~ 125°C	-	125V	-	-	Custom	0.190" Dia x 0.250" L (4.83mm x 6.35mm)	-
4101-000LF FILTER LC(PI) 1750PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	3,944	-	RFQ	-	4100	Axial, Eyelet - No Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	35dB @ 100MHz	-	10 A	C = 1750pF	No	-55°C ~ 125°C	-	125V	-	-	Custom	0.195" Dia x 0.267" L (4.95mm x 6.78mm)	-
4101-002LF FILTER LC(PI) 1750PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	4,962	-	RFQ	-	4100	Axial, Eyelet - 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	50dB @ 100MHz	-	10 A	C = 1750pF	No	-55°C ~ 125°C	-	125V	-	-	Custom	0.195" Dia x 0.260" L (4.95mm x 6.60mm)	-
4101-003LF FILTER LC(PI) 1750PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	4,975	-	RFQ	-	4100	Axial, Eyelet	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	50dB @ 100MHz	-	10 A	C = 1750pF	No	-55°C ~ 125°C	-	125V	-	-	Custom	0.195" Dia x 0.260" L (4.95mm x 6.60mm)	-

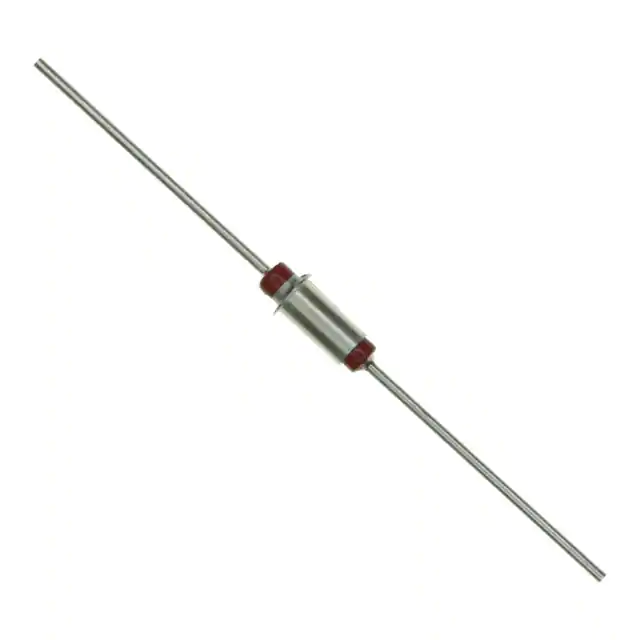

4102-000LF FILTER LC(PI) 3000PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	4,989	-	RFQ	-	4100	Axial, Eyelet - 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	55dB @ 100MHz	-	10 A	C = 3000pF	No	-55°C ~ 125°C	-	200V	-	-	Custom	0.180" Dia x 0.410" L (4.57mm x 10.41mm)	-
4106-000LF FILTER LC(PI) 3000PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	2,019	-	RFQ	-	4100	Axial, Eyelet - Hook Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	50dB @ 100MHz	-	25 A	C = 3000pF	No	-55°C ~ 125°C	-	500V	-	-	Custom	0.312" Dia x 0.625" L (7.92mm x 15.88mm)	-
4106-001LF FILTER LC(PI) 4500PF CUSTOM Tusonix a Subsidiary of CTS Electronic Components	2,133	-	RFQ	-	4100	Axial, Eyelet - Hook Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	50dB @ 100MHz	-	25 A	C = 4500pF	No	-55°C ~ 125°C	-	500V	-	-	Custom	0.312" Dia x 0.625" L (7.92mm x 15.88mm)	-
4202-000LF FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	2,606	-	RFQ	-	4200	Axial, Bushing	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	45dB @ 100MHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	Data Lines for Mobile Devices	200V	-	-	Chassis Mount	0.250" Dia x 0.588" L (6.35mm x 14.93mm)	-
4204-001LF FILTER LC(PI) 1500PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	4,632	-	RFQ	-	4200	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	45dB @ 100MHz	-	10 A	C = 1500pF	No	-55°C ~ 125°C	Data Lines for Mobile Devices	200V	-	-	Chassis Mount	0.250" Dia x 0.468" L (6.35mm x 11.89mm)	-
4204-051LF FILTER LC(PI) 5000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	4,340	-	RFQ	-	4200	Axial, Bushing, 1 Turret Lead	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	65dB @ 100MHz	-	10 A	C = 5000pF	No	-55°C ~ 125°C	Data Lines for Mobile Devices	100V	-	-	Chassis Mount	0.250" Dia x 0.468" L (6.35mm x 11.89mm)	-
4251-001LF FILTER EMI 15000 PF PI TYPE Tusonix a Subsidiary of CTS Electronic Components	2,802	-	RFQ	-	-	Axial, Bushing	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	-	-	10 A	C = 0.015µF	No	-55°C ~ 125°C	Telecommunications	-	-	-	Chassis Mount	0.187" Dia x 0.359" L (4.75mm x 9.12mm)	-
