FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCTWA35N65G2VTRANS SJT N-CH 650V 45A TO247 |
577 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 45A (Tc) | 18V, 20V | 72mOhm @ 20A, 20V | 3.2V @ 1mA | 73 nC @ 20 V | +20V, -5V | 73000 pF @ 400 V | - | 208W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
.jpg)
|
IXFX64N60P3MOSFET N-CH 600V 64A PLUS247-3 |
959 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 64A (Tc) | 10V | 95mOhm @ 32A, 10V | 5V @ 4mA | 145 nC @ 10 V | ±30V | 9900 pF @ 25 V | - | 1130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
IXFT50N60P3MOSFET N-CH 600V 50A TO268 |
313 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 10V | 145mOhm @ 500mA, 10V | 5V @ 4mA | 94 nC @ 10 V | ±30V | 6300 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXFK220N17T2MOSFET N-CH 170V 220A TO264AA |
320 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 170 V | 220A (Tc) | 10V | 6.3mOhm @ 60A, 10V | 5V @ 8mA | 500 nC @ 10 V | ±20V | 31000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
|
|
STW65N65DM2AGMOSFET N-CH 650V 60A TO247 |
349 |
|
Datasheet |
MDmesh™ DM2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 60A (Tc) | 10V | 50mOhm @ 30A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±25V | 5500 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
IXTQ170N10PMOSFET N-CH 100V 170A TO3P |
240 |
|
Datasheet |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 9mOhm @ 500mA, 10V | 5V @ 250µA | 198 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 715W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|
IXFH340N075T2MOSFET N-CH 75V 340A TO247AD |
300 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 340A (Tc) | 10V | 3.2mOhm @ 100A, 10V | 4V @ 3mA | 300 nC @ 10 V | ±20V | 19000 pF @ 25 V | - | 935W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
SPW35N60CFDFKSA1MOSFET N-CH 600V 34.1A TO247-3 |
240 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 34.1A (Tc) | 10V | 118mOhm @ 21.6A, 10V | 5V @ 1.9mA | 212 nC @ 10 V | ±20V | 5060 pF @ 25 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
|
IXFT36N50PMOSFET N-CH 500V 36A TO268 |
1,320 |
|
Datasheet |
HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

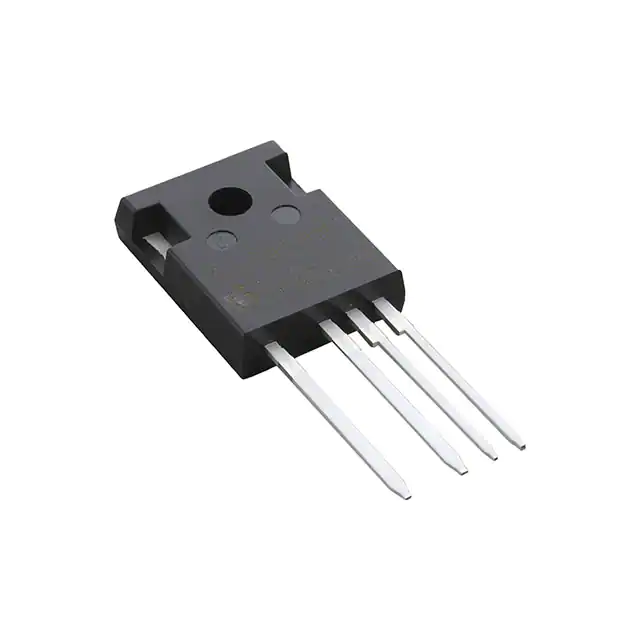

IMZA65R048M1HXKSA1MOSFET 650V NCH SIC TRENCH |
420 |
|
Datasheet |
CoolSiC™ | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 39A (Tc) | 18V | 64mOhm @ 20.1A, 18V | 5.7V @ 6mA | 33 nC @ 18 V | +23V, -5V | 1118 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-4-3 |
|
|
IXFT24N90PMOSFET N-CH 900V 24A TO268 |
350 |
|
Datasheet |
HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 24A (Tc) | 10V | 420mOhm @ 12A, 10V | 6.5V @ 1mA | 130 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXTQ36N50PMOSFET N-CH 500V 36A TO3P |
195 |
|
Datasheet |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 250µA | 85 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IPW65R048CFDAFKSA1MOSFET N-CH 650V 63.3A TO247-3 |
284 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 63.3A (Tc) | 10V | 48mOhm @ 29.4A, 10V | 4.5V @ 2.9mA | 270 nC @ 10 V | ±20V | 7440 pF @ 100 V | - | 500W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
NTHL041N60S5HNTHL041N60S5H |
828 |
|
Datasheet |
SuperFET® V | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 57A (Tc) | 10V | 41mOhm @ 28.5A, 10V | 4.3V @ 6.7mA | 108 nC @ 10 V | ±30V | 5840 pF @ 400 V | - | 329W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NTHL080N120SC1ASICFET N-CH 1200V 31A TO247-3 |
922 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 31A (Tc) | 20V | 110mOhm @ 20A, 20V | 4.3V @ 5mA | 56 nC @ 20 V | +25V, -15V | 1670 pF @ 800 V | - | 178W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
IXFH69N30PMOSFET N-CH 300V 69A TO247AD |
368 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 69A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 4960 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
FCH041N65EFL4MOSFET N-CH 650V 76A TO247 |
427 |
|
Datasheet |
FRFET®, SuperFET® II | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 7.6mA | 298 nC @ 10 V | ±20V | 12560 pF @ 100 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-4 |
.jpg)
|
IXTH16P60PMOSFET P-CH 600V 16A TO247 |
266 |
|
Datasheet |
PolarP™ | TO-247-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 720mOhm @ 500mA, 10V | 4.5V @ 250µA | 92 nC @ 10 V | ±20V | 5120 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFQ94N30P3MOSFET N-CH 300V 94A TO3P |
126 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 94A (Tc) | 10V | 36mOhm @ 47A, 10V | 5V @ 4mA | 102 nC @ 10 V | ±20V | 5510 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
UF3SC065040B7S650V/40MOHM, SIC, STACKED FAST C |
8,450 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Cascode SiCJFET) | 650 V | 43A (Tc) | 12V | 52mOhm @ 30A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 195W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7 |
