FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

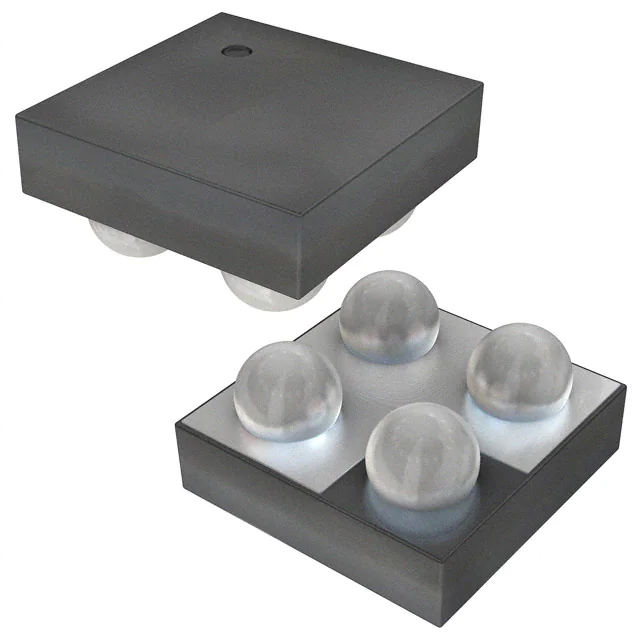

SI8425DB-T1-E1MOSFET P-CH 20V 4WLCSP |
2,882 |
|
Datasheet |
TrenchFET® | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.9A (Ta) | 1.8V, 4.5V | 23mOhm @ 2A, 4.5V | 900mV @ 250µA | 110 nC @ 10 V | ±10V | 2800 pF @ 10 V | - | 1.1W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (1.6x1.6) |
|
RS1E150GNTBMOSFET N-CH 30V 15A 8HSOP |
2,225 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 40A (Tc) | 4.5V, 10V | 8.8mOhm @ 15A, 10V | 2.5V @ 1mA | 10 nC @ 10 V | ±20V | 590 pF @ 15 V | - | 3W (Ta), 22W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
BUK7M67-60EXMOSFET N-CH 60V 14A LFPAK33 |
1,078 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 10V | 67mOhm @ 5A, 10V | 4V @ 1mA | 6.7 nC @ 10 V | ±20V | 334 pF @ 25 V | - | 31W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
|
PSMN6R1-25MLDXMOSFET N-CH 25V 60A LFPAK33 |
1,443 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 60A (Tc) | 4.5V, 10V | 7.24mOhm @ 15A, 10V | 2.2V @ 1mA | 10.7 nC @ 10 V | ±20V | 702 pF @ 12 V | Schottky Diode (Body) | 42W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
MCAC50N03-TPMOSFET N-CH 30 50A DFN5060 |
4,176 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 9mOhm @ 10A, 10V | 2.3V @ 250µA | 15 nC @ 10 V | ±20V | 1490 pF @ 15 V | - | 38W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060 |
|
IRFH8325TRPBFMOSFET N-CH 30V 21A/82A PQFN |
3,667 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 82A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.35V @ 50µA | 32 nC @ 10 V | ±20V | 2487 pF @ 10 V | - | 3.6W (Ta), 54W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
|
NTMFS4C910NAT3GTRENCH 6 30V NCH |
15,000 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
QS6U24TRMOSFET P-CH 30V 1A TSMT6 |
11,246 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1A (Ta) | 4V, 10V | 400mOhm @ 1A, 10V | 2.5V @ 1mA | 1.7 nC @ 5 V | ±20V | 90 pF @ 10 V | Schottky Diode (Isolated) | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
NTMFS4C910NBT1GTRENCH 6 30V NCH |
10,500 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PSMN9R1-30YL,115MOSFET N-CH 30V 57A LFPAK56 |
2,484 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 57A (Tc) | 4.5V, 10V | 9.1mOhm @ 15A, 10V | 2.15V @ 1mA | 16.7 nC @ 10 V | ±20V | 894 pF @ 15 V | - | 52W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
,TO-226_straightlead.jpg)
|
DN2535N3-G-P003MOSFET N-CH 350V 120MA TO92 |
1,981 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 350 V | 120mA (Tj) | 0V | 25Ohm @ 120mA, 0V | - | - | ±20V | 300 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
RQ6E045SNTRMOSFET N-CH 30V 4.5A TSMT6 |
2,997 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4V, 10V | 38mOhm @ 4.5A, 10V | 2.5V @ 1mA | 9.5 nC @ 5 V | ±20V | 520 pF @ 10 V | - | 950mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
;;6.jpg)
|
RF4E060AJTCRMOSFET N-CH 30V 6A HUML2020L8 |
2,249 |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 2.5V, 4.5V | 37mOhm @ 6A, 4.5V | 1.5V @ 1mA | 4 nC @ 4.5 V | ±12V | 450 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
SIS782DN-T1-GE3MOSFET N-CH 30V 16A PPAK1212-8 |
8,239 |
|
Datasheet |
- | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 9.5mOhm @ 10A, 10V | 2.3V @ 250µA | 30.5 nC @ 10 V | ±20V | 1025 pF @ 15 V | Schottky Diode (Body) | 41W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
IPN60R1K5PFD7SATMA1MOSFET N-CH 600V 3.6A SOT223 |
2,460 |
|
Datasheet |
CoolMOS™PFD7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.6A (Tc) | 10V | 1.5Ohm @ 700mA, 10V | 4.5V @ 40µA | 4.6 nC @ 10 V | ±20V | 169 pF @ 400 V | - | 6W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-3 |
|
|
PSMN4R4-30MLC,115MOSFET N-CH 30V 70A LFPAK33 |
1,495 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 4.5V, 10V | 4.65mOhm @ 25A, 10V | 2.15V @ 1mA | 23 nC @ 10 V | ±20V | 1515 pF @ 15 V | - | 69W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
NTLJS2103PTBGMOSFET P-CH 12V 3.5A 6WDFN |
1,190 |
|
Datasheet |
µCool™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 1.2V, 4.5V | 40mOhm @ 3A, 4.5V | 800mV @ 250µA | 15 nC @ 4.5 V | ±8V | 1157 pF @ 6 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
|
MCM13N03-TPN-CHANNEL MOSFET,DFN2020-6LE |
3,099 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A | 4.5V, 10V | 12mOhm @ 8A, 10V | 2.5V @ 250µA | 23.6 nC @ 10 V | ±20V | 1015 pF @ 15 V | - | 2.9W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-6LE |
|
|
RQ6E055BNTCRMOSFET N-CH 30V 5.5A TSMT6 |
2,950 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.5A (Ta) | 4.5V, 10V | 25mOhm @ 5.5A, 10V | 2.5V @ 1mA | 8.6 nC @ 10 V | ±20V | 355 pF @ 15 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
DMN10H099SFG-7MOSFET N-CH 100V 4.2A PWRDI3333 |
1,621 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.2A (Ta) | 6V, 10V | 80mOhm @ 3.3A, 10V | 3V @ 250µA | 25.2 nC @ 10 V | ±20V | 1172 pF @ 50 V | - | 980mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
