FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPWR8503NL,L1QMOSFET N-CH 30V 150A 8DSOP |
4,674 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150A (Tc) | 4.5V, 10V | 0.85mOhm @ 50A, 10V | Surface Mount | 2.3V @ 1mA | 74 nC @ 10 V | 30 V | ±20V | 6900 pF @ 15 V | - | - | 8-DSOP Advance | - | 800mW (Ta), 142W (Tc) | 150°C (TJ) |
|
R6006JNJGTLMOSFET N-CH 600V 6A LPTS |
1,098 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 6A (Tc) | 15V | 936mOhm @ 3A, 15V | Surface Mount | 7V @ 800µA | 15.5 nC @ 15 V | 600 V | ±30V | 410 pF @ 100 V | - | - | LPTS | - | 86W (Tc) | -55°C ~ 150°C (TJ) |
|
RD3L08BGNTLMOSFET N-CH 60V 80A TO252 |
1,285 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 4.5V, 10V | 5.5mOhm @ 80A, 10V | Surface Mount | 2.5V @ 100µA | 71 nC @ 10 V | 60 V | ±20V | 3620 pF @ 30 V | - | - | TO-252 | - | 119W (Tc) | 150°C (TJ) |
|
STP18N65M2MOSFET N-CH 650V 12A TO220 |
1,003 |
|
Datasheet |
MDmesh™ M2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 330mOhm @ 6A, 10V | Through Hole | 4V @ 250µA | 20 nC @ 10 V | 650 V | ±25V | 770 pF @ 100 V | - | - | TO-220 | - | 110W (Tc) | 150°C (TJ) |
|

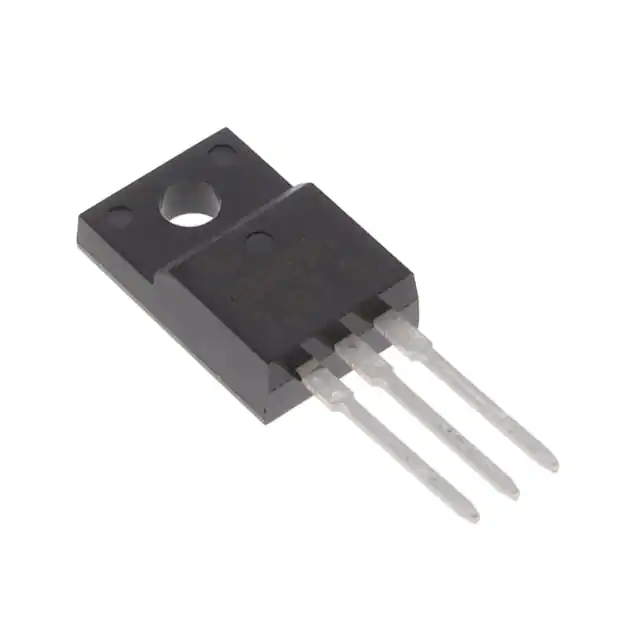

PJMF900N60EC_T0_00001600V SUPER JUNCTION MOSFET |
1,986 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 5A (Tc) | 10V | 900mOhm @ 2.3A, 10V | Through Hole | 4V @ 250µA | 8.8 nC @ 10 V | 600 V | ±30V | 310 pF @ 400 V | - | - | ITO-220AB-F | - | 22.5W (Tc) | -55°C ~ 150°C (TJ) |
|
TPS1101DMOSFET P-CH 15V 2.3A 8SOIC |
69 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 2.3A (Ta) | 2.7V, 10V | 90mOhm @ 2.5A, 10V | Surface Mount | 1.5V @ 250µA | 11.25 nC @ 10 V | 15 V | +2V, -15V | - | - | - | 8-SOIC | - | 791mW (Ta) | -40°C ~ 150°C (TJ) |
|
NVMYS005N10MCLTWGPTNG 100V LL LFPAK4 |
4,714 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 18.4A (Ta), 108A (Tc) | 4.5V, 10V | 5.1mOhm @ 34A, 10V | Surface Mount | 3V @ 192µA | 55 nC @ 10 V | 100 V | ±20V | 4100 pF @ 50 V | AEC-Q101 | - | LFPAK4 (5x6) | Automotive | 3.8W (Ta), 131W (Tc) | -55°C ~ 175°C (TJ) |
|
NP89N055PUK-E1-AYMOSFET N-CH 55V 90A TO263-3 |
3,175 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 10V | 4mOhm @ 45A, 10V | Surface Mount | 4V @ 250µA | 102 nC @ 10 V | 55 V | ±20V | 6000 pF @ 25 V | - | - | TO-263-3 | - | 1.8W (Ta), 147W (Tc) | 175°C (TJ) |
|
RS1E350GNTBMOSFET N-CH 30V 35A/80A 8HSOP |
2,500 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 35A (Ta), 80A (Tc) | 4.5V, 10V | 1.7mOhm @ 35A, 10V | Surface Mount | 2.5V @ 1mA | 68 nC @ 10 V | 30 V | ±20V | 4060 pF @ 15 V | - | - | 8-HSOP | - | 3W (Ta) | 150°C (TJ) |
|
|
R6509KNXC7G650V 9A TO-220FM, HIGH-SPEED SWI |
3,990 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 9A (Ta) | 10V | 585mOhm @ 2.8A, 10V | Through Hole | 5V @ 230µA | 16.5 nC @ 10 V | 650 V | ±20V | 540 pF @ 25 V | - | - | TO-220FM | - | 48W (Tc) | 150°C (TJ) |
|
SIDR140DP-T1-RE3N-CHANNEL 25-V (D-S) MOSFET |
2,998 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 79A (Ta), 100A (Tc) | 4.5V, 10V | 0.67mOhm @ 20A, 10V | Surface Mount | 2.1V @ 250µA | 170 nC @ 10 V | 25 V | +20V, -16V | 8150 pF @ 10 V | - | - | PowerPAK® SO-8DC | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) |
|
|
RS1E350BNTB1NCH 30V 80A POWER MOSFET: RS1E35 |
2,217 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 35A (Ta), 80A (Tc) | 4.5V, 10V | 1.7mOhm @ 35A, 10V | Surface Mount | 2.5V @ 1mA | 185 nC @ 10 V | 30 V | ±20V | 7900 pF @ 15 V | - | - | 8-HSOP | - | 3W (Ta), 35W (Tc) | 150°C (TJ) |
|
SIHP12N60E-BE3MOSFET N-CH 600V 12A TO220AB |
346 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | - | 380mOhm @ 6A, 10V | Through Hole | 4V @ 250µA | 58 nC @ 10 V | 600 V | ±30V | 937 pF @ 100 V | - | - | TO-220AB | - | 147W (Tc) | -55°C ~ 150°C (TJ) |
|
RJK0854DPB-00#J5MOSFET N-CH 80V 25A LFPAK |
2,540 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25A (Ta) | 10V | 13mOhm @ 12.5A, 10V | Surface Mount | - | 27 nC @ 10 V | 80 V | ±20V | 2000 pF @ 10 V | - | - | LFPAK | - | 55W (Tc) | 150°C (TJ) |
|
|
R6524ENXC7G650V 24A TO-220FM, LOW-NOISE POW |
990 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 185mOhm @ 11.3A, 10V | Through Hole | 4V @ 750µA | 70 nC @ 10 V | 650 V | ±20V | 1650 pF @ 25 V | - | - | TO-220FM | - | 74W (Tc) | 150°C (TJ) |
|
R6524KNXC7G650V 24A TO-220FM, HIGH-SPEED SW |
989 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 185mOhm @ 11.3A, 10V | Through Hole | 5V @ 750µA | 45 nC @ 10 V | 650 V | ±20V | 1850 pF @ 25 V | - | - | TO-220FM | - | 74W (Tc) | 150°C (TJ) |
|
|
R6024ENXC7G600V 24A TO-220FM, LOW-NOISE POW |
980 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 165mOhm @ 11.3A, 10V | Through Hole | 4V @ 1mA | 70 nC @ 10 V | 600 V | ±20V | 1650 pF @ 25 V | - | - | TO-220FM | - | 74W (Tc) | 150°C (TJ) |
|
|
R6024KNXC7G600V 24A TO-220FM, HIGH-SPEED SW |
970 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 165mOhm @ 11.3A, 10V | Through Hole | 5V @ 1mA | 45 nC @ 10 V | 600 V | ±20V | 2000 pF @ 25 V | - | - | TO-220FM | - | 74W (Tc) | 150°C (TJ) |
|
|
R8002ANJFRGTLMOSFET N-CH 800V 2A LPTS |
611 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 2A (Tc) | 10V | 4.3Ohm @ 1A, 10V | Surface Mount | 5V @ 1mA | 13 nC @ 10 V | 800 V | ±30V | 250 pF @ 25 V | AEC-Q101 | - | LPTS | Automotive | 62W (Tc) | 150°C (TJ) |
|
|
IPA80R460CEXKSA2MOSFET N-CH 800V 10.8A TO220 |
500 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 10.8A (Ta) | 10V | 460mOhm @ 7.1A, 10V | Through Hole | 3.9V @ 680µA | 64 nC @ 10 V | 800 V | ±20V | 1600 pF @ 100 V | - | - | PG-TO220-3-31 | - | 34W (Tc) | -40°C ~ 150°C (TJ) |
