FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRH140P03TB1MOSFET P-CH 30V 14A 8SOP |
13,283 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 14A (Ta) | 4V, 10V | 7mOhm @ 14A, 10V | Surface Mount | 2.5V @ 1mA | 80 nC @ 5 V | 30 V | ±20V | 8000 pF @ 10 V | - | - | 8-SOP | - | 650mW (Ta) | 150°C (TJ) |
|
FCPF250N65S3R0L-F154POWER MOSFET, N-CHANNEL, SUPERFE |
1,835 |
|
Datasheet |
SuperFET® III | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tj) | 10V | 250mOhm @ 6A, 10V | Through Hole | 4.5V @ 290µA | 24 nC @ 10 V | 650 V | ±30V | 1010 pF @ 400 V | - | - | TO-220F-3 | - | 31W (Tc) | -55°C ~ 150°C (TJ) |
|
SIHP17N80AE-GE3MOSFET N-CH 800V 15A TO220AB |
899 |
|
Datasheet |
E | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | Through Hole | 4V @ 250µA | 62 nC @ 10 V | 800 V | ±30V | 1260 pF @ 100 V | - | - | TO-220AB | - | 179W (Tc) | -55°C ~ 150°C (TJ) |
|
R6511END3TL1650V 11A TO-252, LOW-NOISE POWER |
767 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 400mOhm @ 3.8A, 10V | Surface Mount | 4V @ 320µA | 32 nC @ 10 V | 650 V | ±20V | 670 pF @ 25 V | - | - | TO-252 | - | 124W (Tc) | 150°C (TJ) |
|
R6007JNJGTLMOSFET N-CH 600V 7A LPTS |
1,080 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7A (Tc) | 15V | 780mOhm @ 3.5A, 15V | Surface Mount | 7V @ 1mA | 17.5 nC @ 15 V | 600 V | ±30V | 475 pF @ 100 V | - | - | LPTS | - | 96W (Tc) | -55°C ~ 150°C (TJ) |
|
RJK1003DPP-A0#T2MOSFET N-CH 100V 50A TO220FPA |
4,688 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50A (Ta) | 10V | 11mOhm @ 25A, 10V | Through Hole | 4V @ 1mA | 59 nC @ 10 V | 100 V | ±20V | 4150 pF @ 10 V | - | - | TO-220ABA | - | 25W (Ta) | 150°C |
|
|
IQE030N06NM5CGATMA1TRENCH 40<-<100V PG-TTFN-9 |
4,920 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 21A (Ta), 137A (Tc) | 6V, 10V | 3mOhm @ 20A, 10V | Surface Mount | 3.3V @ 50µA | 49 nC @ 10 V | 60 V | ±20V | 3800 pF @ 30 V | - | - | PG-TTFN-9-1 | - | 2.5W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) |
|
|
NVMJST1D6N04CTXGTRENCH 6 40V LFPAK 5X7 |
2,780 |
|
Datasheet |
- | 10-PowerLSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 314A (Tc) | 10V | 1.65mOhm @ 50A, 10V | Surface Mount | 3.5V @ 130µA | 47 nC @ 10 V | 40 V | ±20V | 3300 pF @ 25 V | AEC-Q101 | - | 10-TCPAK | Automotive | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
|
DMTH41M2SPS-13MOSFET BVDSS: 31V~40V POWERDI506 |
2,190 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 225A (Tc) | 10V | 1.2mOhm @ 30A, 10V | Surface Mount | 4V @ 250µA | 138 nC @ 10 V | 40 V | ±20V | 11085 pF @ 20 V | - | - | PowerDI5060-8 (Type K) | - | 3.4W (Ta), 158W (Tc) | -55°C ~ 175°C (TJ) |
|
AOTF380A60LMOSFET N-CH 600V 11A TO220F |
2,000 |
|
Datasheet |
aMOS5™ | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | Through Hole | 3.8V @ 250µA | 20 nC @ 10 V | 600 V | ±20V | 955 pF @ 100 V | - | - | TO-220F | - | 27W (Tc) | -55°C ~ 150°C (TJ) |
|
AOB190A60CLMOSFET N-CH 600V 20A TO263 |
1,725 |
|
Datasheet |
aMOS5™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 190mOhm @ 7.6A, 10V | Surface Mount | 4.6V @ 250µA | 34 nC @ 10 V | 600 V | ±30V | 1935 pF @ 100 V | - | - | TO-263 (D2PAK) | - | 208W (Tc) | -55°C ~ 150°C (TJ) |
|
NVMFS5C628NLT1GMOSFET N-CH 60V 5DFN |
1,388 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 150A (Tc) | 4.5V, 10V | 2.4mOhm @ 50A, 10V | Surface Mount | 2V @ 135µA | 52 nC @ 10 V | 60 V | ±20V | 3600 pF @ 25 V | AEC-Q101 | - | 5-DFN (5x6) (8-SOFL) | Automotive | 3.7W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) |
|
|
AOTF20S60LMOSFET N-CH 600V 20A TO220-3F |
971 |
|
Datasheet |
aMOS™ | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 199mOhm @ 10A, 10V | Through Hole | 4.1V @ 250µA | 19.8 nC @ 10 V | 600 V | ±30V | 1038 pF @ 100 V | - | - | TO-220F | - | 37.8W (Tc) | -55°C ~ 150°C (TJ) |
|
IPB180N04S401ATMA1MOSFET N-CH 40V 180A TO263-7 |
958 |
|
Datasheet |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 180A (Tc) | 10V | 1.3mOhm @ 100A, 10V | Surface Mount | 4V @ 140µA | 176 nC @ 10 V | 40 V | ±20V | 14000 pF @ 25 V | - | - | PG-TO263-7-3 | - | 188W (Tc) | -55°C ~ 175°C (TJ) |
|

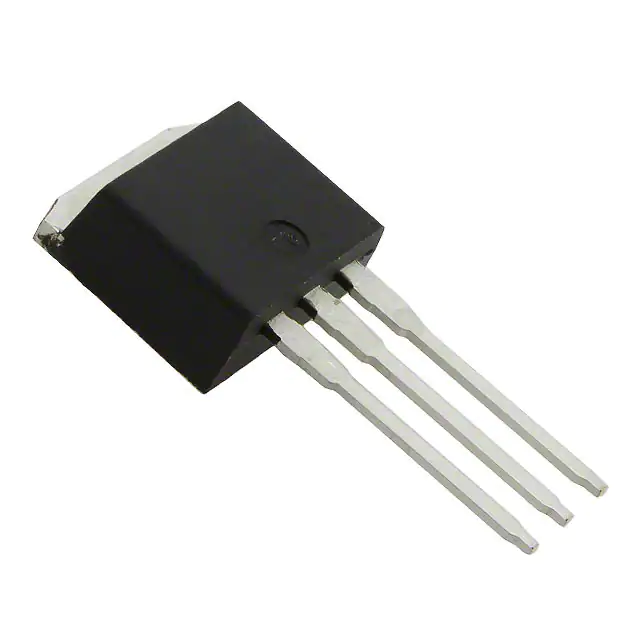

IRFBE30LPBFMOSFET N-CH 800V 4.1A I2PAK |
988 |
|
- |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 4.1A (Tc) | 10V | 3Ohm @ 2.5A, 10V | Through Hole | 4V @ 250µA | 78 nC @ 10 V | 800 V | ±20V | 1300 pF @ 25 V | - | - | I2PAK | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTA60N10T-TRLMOSFET N-CH 100V 60A TO263 |
758 |
|
Datasheet |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60A (Tc) | 10V | 18mOhm @ 25A, 10V | Surface Mount | 4.5V @ 50µA | 49 nC @ 10 V | 100 V | ±20V | 2650 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 176W (Tc) | -55°C ~ 175°C (TJ) |
|
IRF840STRRPBFMOSFET N-CH 500V 8A D2PAK |
691 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | Surface Mount | 4V @ 250µA | 63 nC @ 10 V | 500 V | ±20V | 1300 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
R6024KNXMOSFET N-CH 600V 24A TO220FM |
291 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 165mOhm @ 11.3A, 10V | Through Hole | 5V @ 1mA | 45 nC @ 10 V | 600 V | ±20V | 2000 pF @ 25 V | - | - | TO-220FM | - | 74W (Tc) | -55°C ~ 150°C (TJ) |
|
SIHJ240N60E-T1-GE3MOSFET N-CH 600V 12A PPAK SO-8 |
1,100 |
|
Datasheet |
E | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 240mOhm @ 5.5A, 10V | Surface Mount | 5V @ 250µA | 23 nC @ 10 V | 600 V | ±30V | 783 pF @ 100 V | - | - | PowerPAK® SO-8 | - | 89W (Tc) | -55°C ~ 150°C (TJ) |
|
|
RJK0703DPP-A0#T2MOSFET N-CH 75V 70A TO220FPA |
4,984 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 70A (Ta) | 10V | 6.7mOhm @ 35A, 10V | Through Hole | 4V @ 1mA | 56 nC @ 10 V | 75 V | ±20V | 4150 pF @ 10 V | - | - | TO-220ABA | - | 25W (Ta) | 150°C |
