FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH12N100PMOSFET N-CH 1000V 12A TO247AD |
570 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 12A (Tc) | 10V | 1.05Ohm @ 6A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 4080 pF @ 25 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
STO68N65DM6N-CHANNEL 650 V, 53 MOHM TYP., 5 |
187 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 55A (Tc) | 10V | 65mOhm @ 27.5A, 10V | 4.75V @ 250µA | 80 nC @ 10 V | ±25V | 3528 pF @ 100 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TOLL (HV) |
|
AUIRFP4568-EMOSFET N-CH 150V 171A TO247AD |
355 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 171A (Tc) | 10V | 5.9mOhm @ 103A, 10V | 5V @ 250µA | 227 nC @ 10 V | ±30V | 10470 pF @ 50 V | - | 517W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
NTH4L060N065SC1SIC MOS TO247-4L 650V |
499 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 47A (Tc) | 15V, 18V | 70mOhm @ 20A, 18V | 4.3V @ 6.5mA | 74 nC @ 18 V | +22V, -8V | 1473 pF @ 325 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
STW69N65M5-4MOSFET N-CH 650V 58A TO247-4L |
385 |
|
Datasheet |
MDmesh™ V | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 58A (Tc) | 10V | 45mOhm @ 29A, 10V | 5V @ 250µA | 143 nC @ 10 V | ±25V | 6420 pF @ 100 V | - | 330W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|
IXFH230N10TMOSFET N-CH 100V 230A TO247AD |
300 |
|
Datasheet |
HiPerFET™, Trench | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 230A (Tc) | 10V | 4.7mOhm @ 500mA, 10V | 4.5V @ 1mA | 250 nC @ 10 V | ±20V | 15300 pF @ 25 V | - | 650W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
SIHG47N60E-E3MOSFET N-CH 600V 47A TO247AC |
225 |
|
Datasheet |
- | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 64mOhm @ 24A, 10V | 4V @ 250µA | 220 nC @ 10 V | ±30V | 9620 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
NTBL050N65S3HMOSFET - POWER,NCHANNEL, SUPERFE |
1,278 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 49A (Tc) | 10V | 50mOhm @ 24.5A, 10V | 4V @ 4.8mA | 98 nC @ 10 V | ±30V | 4880 pF @ 400 V | - | 305W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
SCT3105KW7TLSICFET N-CH 1200V 23A TO263-7 |
995 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 23A (Tc) | - | 137mOhm @ 7.6A, 18V | 5.6V @ 3.81mA | 51 nC @ 18 V | +22V, -4V | 574 pF @ 800 V | - | 125W | 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
SIHK045N60E-T1-GE3E SERIES POWER MOSFET POWERPAK 1 |
1,806 |
|
Datasheet |
E | 8-PowerBSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 49mOhm @ 17A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 4013 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK®10 x 12 |
|
UF4C120053K4S1200V/53MOHM, SIC, FAST CASCODE, |
505 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 34A (Tc) | 12V | 67mOhm @ 20A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1370 pF @ 800 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
FCA47N60-F109MOSFET N-CH 600V 47A TO3PN |
452 |
|
Datasheet |
SuperFET™ | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 70mOhm @ 23.5A, 10V | 5V @ 250µA | 270 nC @ 10 V | ±30V | 8000 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
|
NVHL040N60S5FSUPERFET5 FRFET, 40MOHM, TO-247- |
337 |
|
Datasheet |
FRFET®, SUPERFET® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 59A (Tc) | 10V | 40mOhm @ 29.5A, 10V | 4.8V @ 7.2mA | 115 nC @ 10 V | ±30V | 6318 pF @ 400 V | - | 347W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IPW60R075CPFKSA1MOSFET N-CH 650V 39A TO247-3 |
237 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 39A (Tc) | 10V | 75mOhm @ 26A, 10V | 3.5V @ 1.7mA | 116 nC @ 10 V | ±20V | 4000 pF @ 100 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
AUIRFP4568MOSFET N-CH 150V 171A TO247AC |
386 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 171A (Tc) | 10V | 5.9mOhm @ 103A, 10V | 5V @ 250µA | 227 nC @ 10 V | ±30V | 10470 pF @ 50 V | - | 517W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
SIHK045N60EF-T1GE3E SERIES POWER MOSFET WITH FAST |
1,998 |
|
Datasheet |
EF | 8-PowerBSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 52mOhm @ 17A, 10V | 5V @ 250µA | 105 nC @ 10 V | ±30V | 4685 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK®10 x 12 |
|
STB32N65M5MOSFET N-CH 650V 24A D2PAK |
940 |
|
Datasheet |
MDmesh™ V | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 150W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPZA60R037P7XKSA1MOSFET N-CH 600V 76A TO247-4 |
194 |
|
Datasheet |
CoolMOS™ P7 | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 37mOhm @ 29.5A, 10V | 4V @ 1.48mA | 121 nC @ 10 V | ±20V | 5243 pF @ 400 V | - | 255W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-4 |
|

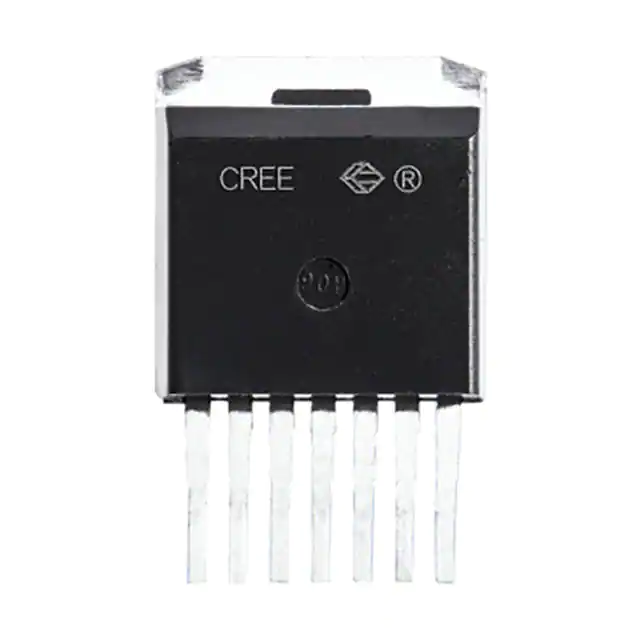

E3M0120090J900V 120M AUTOMOTIVE SIC MOSFET |
502 |
|
Datasheet |
E-Series | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 900 V | 22A (Tc) | 15V | 155mOhm @ 15A, 15V | 3.5V @ 3mA | 18 nC @ 15 V | +15V, -4V | 414 pF @ 600 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Automotive | - | Surface Mount | TO-263-7 |
|
IXTT26N50PMOSFET N-CH 500V 26A TO268 |
205 |
|
Datasheet |
Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 250µA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
