FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFK220N20X3MOSFET N-CH 200V 220A TO264 |
266 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 220A (Tc) | 10V | 6.2mOhm @ 110A, 10V | 4.5V @ 4mA | 204 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
|
SCT3105KLHRC11SICFET N-CH 1200V 24A TO247N |
241 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 24A (Tc) | 18V | 137mOhm @ 7.6A, 18V | 5.6V @ 3.81mA | 51 nC @ 18 V | +22V, -4V | 574 pF @ 800 V | - | 134W | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247N |
|
HUF75852G3MOSFET N-CH 150V 75A TO247-3 |
15 |
|
Datasheet |
UltraFET™ | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 75A (Tc) | 10V | 16mOhm @ 75A, 10V | 4V @ 250µA | 480 nC @ 20 V | ±20V | 7690 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
SCT4062KRHRC151200V, 26A, 4-PIN THD, TRENCH-ST |
401 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 26A (Tc) | 18V | 81mOhm @ 12A, 18V | 4.8V @ 6.45mA | 64 nC @ 18 V | +21V, -4V | 1498 pF @ 800 V | - | 115W | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|
SCT3080AW7TLSICFET N-CH 650V 29A TO263-7 |
905 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 29A (Tc) | - | 104mOhm @ 10A, 18V | 5.6V @ 5mA | 48 nC @ 18 V | +22V, -4V | 571 pF @ 500 V | - | 125W | 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
NTBG060N090SC1SIC MOS N-CH 900V 5.8A D2PAK-7 |
786 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 900 V | 5.8A (Ta), 44A (Tc) | 15V | 84mOhm @ 20A, 15V | 4.3V @ 5mA | 88 nC @ 15 V | +19V, -10V | 1800 pF @ 450 V | - | 3.6W (Ta), 211W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|

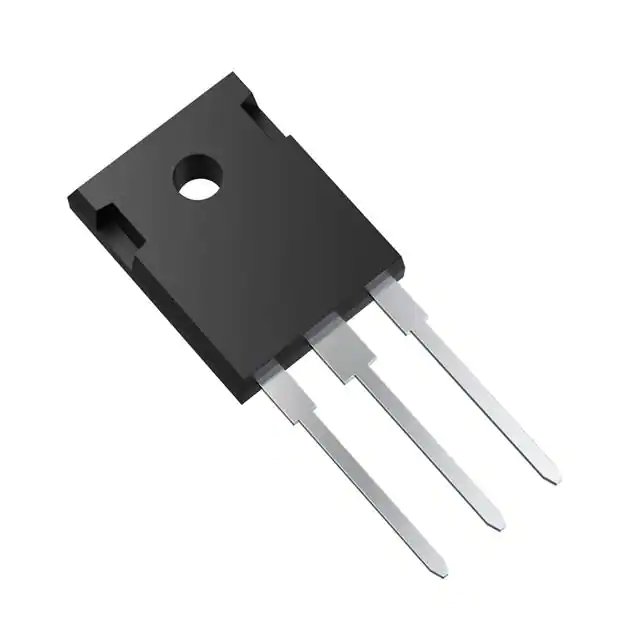

TW083N65C,S1FG3 650V SIC-MOSFET TO-247 83MOH |
142 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 30A (Tc) | 18V | 113mOhm @ 15A, 18V | 5V @ 600µA | 28 nC @ 18 V | +25V, -10V | 873 pF @ 400 V | - | 111W (Tc) | 175°C | - | - | Through Hole | TO-247 |
|
IXFT100N30X3HVMOSFET N-CH 300V 100A TO268HV |
550 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 100A (Tc) | 10V | 13.5mOhm @ 50A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
|
|
S2M0080120DMOSFET SILICON CARBIDE SIC 1200V |
211 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 41A (Tc) | 20V | 100mOhm @ 20A, 20V | 4V @ 10mA | 54 nC @ 20 V | +25V, -10V | 1324 pF @ 1000 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD |
|
NTHL033N65S3HFMOSFET N-CH 650V 70A TO247-3 |
402 |
|
Datasheet |
FRFET®, SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 70A (Tc) | 10V | 33mOhm @ 35A, 10V | 5V @ 2.5mA | 188 nC @ 10 V | ±30V | 6720 pF @ 400 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IXFH54N65X3MOSFET 54A 650V X3 TO247 |
300 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 54A (Tc) | 10V | 59mOhm @ 27A, 10V | 5.2V @ 4mA | 49 nC @ 10 V | ±20V | 3360 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXFH) |
.jpg)
|
IXFX180N25TMOSFET N-CH 250V 180A PLUS247-3 |
509 |
|
Datasheet |
HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 180A (Tc) | 10V | 12.9mOhm @ 60A, 10V | 5V @ 8mA | 345 nC @ 10 V | ±20V | 28000 pF @ 25 V | - | 1390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|

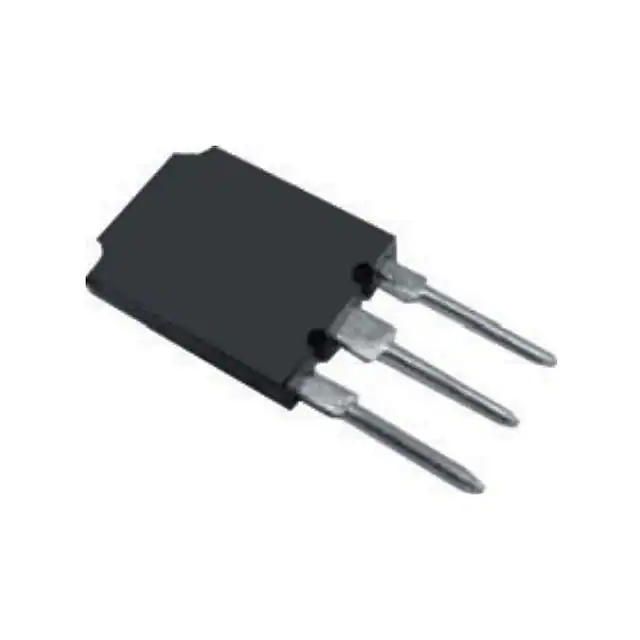

SIHS90N65E-GE3E SERIES POWER MOSFET SUPER-247, |
233 |
|
Datasheet |
E | TO-274AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 87A (Tc) | 10V | 29mOhm @ 45A, 10V | 4V @ 250µA | 591 nC @ 10 V | ±30V | 11826 pF @ 100 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
|
S2M0080120KMOSFET SILICON CARBIDE SIC 1200V |
260 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 41A (Tc) | 20V | 100mOhm @ 20A, 20V | 4V @ 10mA | 54 nC @ 20 V | +25V, -10V | 1324 pF @ 1000 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
|
IMZA65R030M1HXKSA1SILICON CARBIDE MOSFET, PG-TO247 |
144 |
|
Datasheet |
CoolSiC™ | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 53A (Tc) | 18V | 42mOhm @ 29.5A, 18V | 5.7V @ 8.8mA | 48 nC @ 18 V | +20V, -2V | 1643 pF @ 400 V | - | 197W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4-3 |
|
|
SCT2280KEHRC111200V, 14A, THD, SILICON-CARBIDE |
410 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 14A (Tc) | 18V | 364mOhm @ 4A, 18V | 4V @ 1.4mA | 36 nC @ 400 V | +22V, -6V | 667 pF @ 800 V | - | 108W (Tc) | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247N |
|
|
FCH041N65EF-F155MOSFET N-CH 650V 76A TO247 |
358 |
|
Datasheet |
FRFET®, SuperFET® II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 7.6mA | 298 nC @ 10 V | ±20V | 12560 pF @ 100 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NTH4L040N65S3FMOSFET N-CH 650V 65A TO247-4 |
310 |
|
Datasheet |
FRFET®, SuperFET® III | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 65A (Tc) | 10V | 40mOhm @ 32.5A, 10V | 5V @ 2.1mA | 158 nC @ 10 V | ±30V | 5940 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-4L |
.jpg)
|
IXTH6N120MOSFET N-CH 1200V 6A TO247 |
1,160 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.6Ohm @ 3A, 10V | 5V @ 250µA | 56 nC @ 10 V | ±20V | 1950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFK88N30PMOSFET N-CH 300V 88A TO264AA |
596 |
|
Datasheet |
HiPerFET™, Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 88A (Tc) | 10V | 40mOhm @ 44A, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
