FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STL30P3LLH6MOSFET P-CH 30V 30A POWERFLAT |
10,055 |
|
Datasheet |
DeepGATE™, STripFET™ VI | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 4.5V, 10V | 30mOhm @ 4.5A, 10V | Surface Mount | 1V @ 250µA (Min) | 12 nC @ 4.5 V | 30 V | ±20V | 1450 pF @ 25 V | - | - | PowerFlat™ (5x6) | - | 75W (Tc) | 175°C (TJ) |
|
SQ4064EY-T1_GE3MOSFET N-CHANNEL 60V 12A 8SOIC |
7,960 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 4.5V, 10V | 19.8mOhm @ 6.1A, 10V | Surface Mount | 2.5V @ 250µA | 43 nC @ 10 V | 60 V | ±20V | 2096 pF @ 25 V | AEC-Q101 | - | 8-SOIC | Automotive | 6.8W (Tc) | -55°C ~ 175°C (TJ) |
|
ISZ24DP10LMATMA1TRENCH >=100V |
3,786 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 9.7A | - | - | Surface Mount | - | - | 100 V | - | - | - | - | PG-TDSON-8-25 | - | - | - |
|
|
SQ4050EY-T1_GE3MOSFET N-CHANNEL 40V 19A 8SOIC |
3,731 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 19A (Tc) | 4.5V, 10V | 8mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 51 nC @ 10 V | 40 V | ±20V | 2406 pF @ 20 V | AEC-Q101 | - | 8-SOIC | Automotive | 6W (Tc) | -55°C ~ 175°C (TJ) |
|
DMT6009LPS-13MOSFET N-CHA 60V 10.6A POWERDI |
2,826 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 10.6A (Ta), 87A (Tc) | 4.5V, 10V | 10mOhm @ 20A, 10V | Surface Mount | 2V @ 250µA | 33.5 nC @ 10 V | 60 V | ±16V | 1925 pF @ 30 V | AEC-Q101 | - | PowerDI5060-8 | Automotive | 2.3W (Ta) | -55°C ~ 150°C (TJ) |
|
DMT6009LFG-7MOSFET N-CH 60V 11A PWRDI3333 |
2,408 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 11A (Ta), 34A (Tc) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | Surface Mount | 2V @ 250µA | 33.5 nC @ 10 V | 60 V | ±16V | 1925 pF @ 30 V | - | - | POWERDI3333-8 | - | 2.08W (Ta), 19.2W (Tc) | -55°C ~ 150°C (TJ) |
|

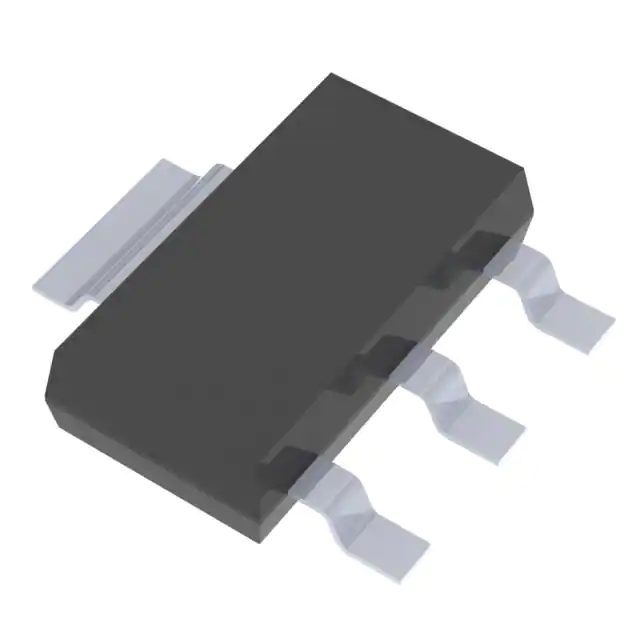

ZVP2110GTAMOSFET P-CH 100V 310MA SOT223 |
1,788 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 310mA (Ta) | 10V | 8Ohm @ 375mA, 10V | Surface Mount | 3.5V @ 1mA | - | 100 V | ±20V | 100 pF @ 25 V | - | - | SOT-223-3 | - | 2W (Ta) | -55°C ~ 150°C (TJ) |
|
BUK9Y19-55B,115MOSFET N-CH 55V 46A LFPAK56 |
42,949 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 46A (Tc) | 5V | 17.3mOhm @ 20A, 10V | Surface Mount | 2V @ 1mA | 18 nC @ 5 V | 55 V | ±15V | 1992 pF @ 25 V | AEC-Q101 | - | LFPAK56, Power-SO8 | Automotive | 85W (Tc) | -55°C ~ 175°C (TJ) |
|
SQJA86EP-T1_GE3MOSFET N-CH 80V 30A PPAK SO-8 |
5,139 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 4.5V, 10V | 19mOhm @ 8A, 10V | Surface Mount | 2.5V @ 250µA | 32 nC @ 10 V | 80 V | ±20V | 1400 pF @ 25 V | AEC-Q101 | - | PowerPAK® SO-8 | Automotive | 48W (Tc) | -55°C ~ 175°C (TJ) |
|
|
BUK7Y7R0-40HXMOSFET N-CH 40V 68A LFPAK56 |
3,745 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 68A (Tc) | 10V | 7mOhm @ 15A, 10V | Surface Mount | 3.6V @ 1mA | 26 nC @ 10 V | 40 V | ±20V | 1630 pF @ 25 V | AEC-Q101 | - | LFPAK56, Power-SO8 | Automotive | 64W (Tc) | -55°C ~ 175°C (TJ) |
|
IPD60R600P7ATMA1MOSFET N-CH 600V 6A TO252-3 |
2,196 |
|
Datasheet |
CoolMOS™ P7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 6A (Tc) | 10V | 600mOhm @ 1.7A, 10V | Surface Mount | 4V @ 80µA | 9 nC @ 10 V | 600 V | ±20V | 363 pF @ 400 V | - | - | PG-TO252-3 | - | 30W (Tc) | -55°C ~ 150°C (TJ) |
|
STF3N62K3MOSFET N-CH 620V 2.7A TO220FP |
1,891 |
|
Datasheet |
SuperMESH3™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 2.7A (Tc) | 10V | 2.5Ohm @ 1.4A, 10V | Through Hole | 4.5V @ 50µA | 13 nC @ 10 V | 620 V | ±30V | 385 pF @ 25 V | - | - | TO-220FP | - | 20W (Tc) | 150°C (TJ) |
|
|
DMT10H015LPS-13MOSFET N-CH 100V 7.3A PWRDI5060 |
720 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7.3A (Ta), 44A (Tc) | 4.5V, 10V | 16mOhm @ 20A, 10V | Surface Mount | 3.5V @ 250µA | 33.3 nC @ 10 V | 100 V | ±20V | 1871 pF @ 50 V | - | - | PowerDI5060-8 | - | 1.3W (Ta), 46W (Tc) | -55°C ~ 150°C (TJ) |
|
|
ISZ0703NLSATMA1MOSFET N-CH 60V 13A/56A TSDSON |
17,201 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 13A (Ta), 56A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | Surface Mount | 2.3V @ 15µA | 23 nC @ 10 V | 60 V | ±20V | 1400 pF @ 30 V | - | - | PG-TSDSON-8-25 | - | 2.5W (Ta), 44W (Tc) | -55°C ~ 175°C (TJ) |
|
SQS415ENW-T1_GE3MOSFET P-CH 40V 16A PPAK1212-8W |
6,341 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 16A (Tc) | 4.5V, 10V | 16.1mOhm @ 12A, 10V | Surface Mount | 2.5V @ 250µA | 82 nC @ 10 V | 40 V | ±20V | 4825 pF @ 25 V | AEC-Q101 | - | PowerPAK® 1212-8W | Automotive | 62.5W (Tc) | -55°C ~ 175°C (TJ) |
|

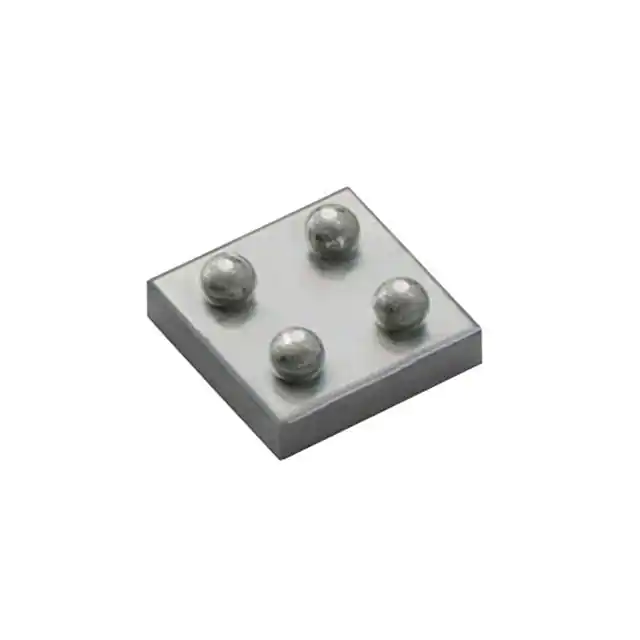

SI8410DB-T2-E1MOSFET N-CH 20V 4MICRO FOOT |
5,890 |
|
Datasheet |
TrenchFET® | 4-UFBGA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 3.8A (Ta) | 1.5V, 4.5V | 37mOhm @ 1.5A, 4.5V | Surface Mount | 850mV @ 250µA | 16 nC @ 8 V | 20 V | ±8V | 620 pF @ 10 V | - | - | 4-Micro Foot (1x1) | - | 780mW (Ta), 1.8W (Tc) | -55°C ~ 150°C (TJ) |
|
NTTFS6H850NTAGMOSFET N-CH 80V 11A/68A 8WDFN |
2,804 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 11A (Ta), 68A (Tc) | 6V, 10V | 9.5mOhm @ 10A, 10V | Surface Mount | 4V @ 70µA | 19 nC @ 10 V | 80 V | ±20V | 1140 pF @ 40 V | - | - | 8-WDFN (3.3x3.3) | - | 3.2W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) |
|

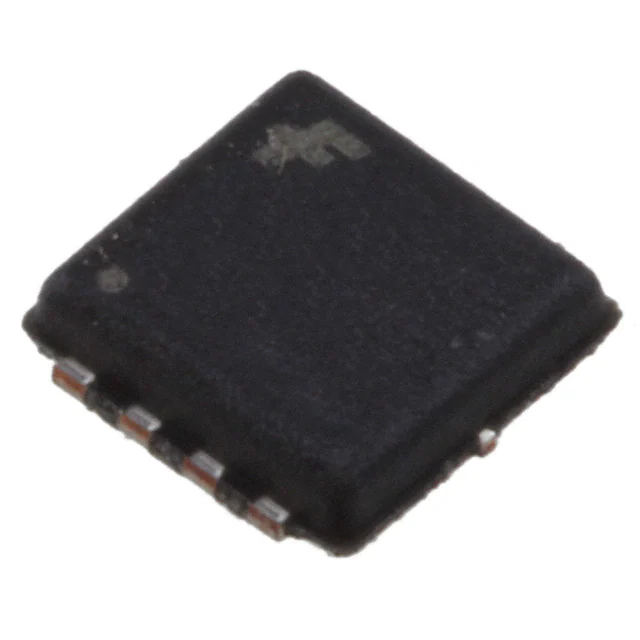

FDMC7672SMOSFET N-CH 30V 14.8A/18A 8MLP |
2,683 |
|
Datasheet |
PowerTrench®, SyncFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 14.8A (Ta), 18A (Tc) | 4.5V, 10V | 6mOhm @ 14.8A, 10V | Surface Mount | 3V @ 1mA | 42 nC @ 10 V | 30 V | ±20V | 2520 pF @ 15 V | - | - | 8-MLP (3.3x3.3) | - | 2.3W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) |
|
BUK9M7R2-40EXMOSFET N-CH 40V 70A LFPAK33 |
2,683 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 70A (Tc) | 5V | 5.8mOhm @ 20A, 10V | Surface Mount | 2.1V @ 1mA | 19.7 nC @ 5 V | 40 V | ±10V | 2567 pF @ 25 V | AEC-Q101 | - | LFPAK33 | Automotive | 79W (Tc) | -55°C ~ 175°C (TJ) |
|
|
PSMN2R4-30YLDXMOSFET N-CH 30V 100A LFPAK56 |
2,643 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 4.5V, 10V | 2.4mOhm @ 25A, 10V | Surface Mount | 2.2V @ 1mA | 31.3 nC @ 10 V | 30 V | ±20V | 2256 pF @ 15 V | - | - | LFPAK56, Power-SO8 | - | 106W (Tc) | -55°C ~ 175°C (TJ) |
