FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK9M5R2-30EXMOSFET N-CH 30V 70A LFPAK33 |
2,355 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 5V, 10V | 4.1mOhm @ 25A, 10V | 2.1V @ 1mA | 22.5 nC @ 5 V | ±10V | 2467 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
DMP4015SPSQ-13MOSFET P-CH 40V 8.5A PWRDI5060-8 |
1,598 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8.5A (Ta) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | 2.5V @ 250µA | 47.5 nC @ 5 V | ±25V | 4234 pF @ 20 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
HUF75329D3STMOSFET N-CH 55V 20A TO252AA |
1,483 |
|
Datasheet |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 10V | 26mOhm @ 20A, 10V | 4V @ 250µA | 65 nC @ 20 V | ±20V | 1060 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|

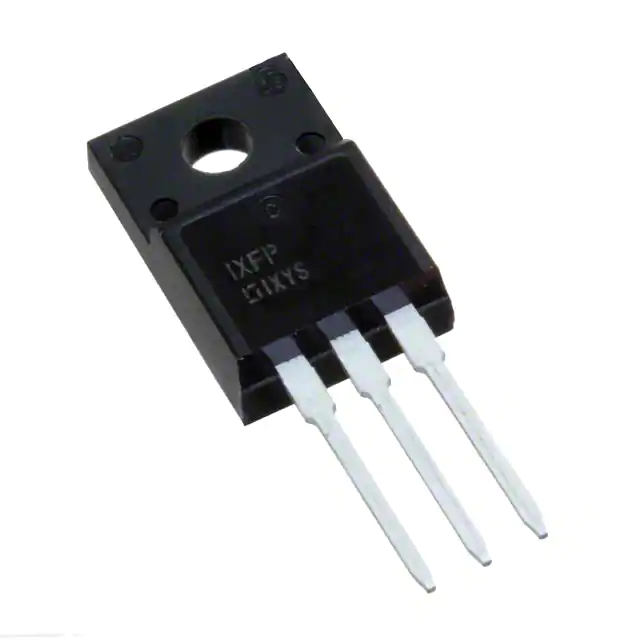

IXFP4N85XMMOSFET N-CH 850V 3.5A TO220 |
300 |
|
Datasheet |
HiPerFET™, Polar | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
SI7613DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
51,564 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 4.5V, 10V | 8.7mOhm @ 17A, 10V | 2.2V @ 250µA | 87 nC @ 10 V | ±16V | 2620 pF @ 10 V | - | 3.8W (Ta), 52.1W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
NTHS4101PT1GMOSFET P-CH 20V 4.8A CHIPFET |
14,029 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.8A (Tj) | 1.8V, 4.5V | 34mOhm @ 4.8A, 4.5V | 1.5V @ 250µA | 35 nC @ 4.5 V | ±8V | 2100 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
IPD60R950C6ATMA1MOSFET N-CH 600V 4.4A TO252-3 |
6,743 |
|
Datasheet |
CoolMOS™ C6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 130µA | 13 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
RQ7E055ATTCRMOSFET P-CH 30V 5.5A TSMT8 |
6,311 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.5A (Tc) | 10V | 24.5mOhm @ 5.5A, 10V | 2.5V @ 1mA | 18.8 nC @ 10 V | ±20V | 860 pF @ 15 V | - | 1.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
SI4431CDY-T1-E3MOSFET P-CH 30V 9A 8SO |
6,218 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Tc) | 4.5V, 10V | 32mOhm @ 7A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 1006 pF @ 15 V | - | 4.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

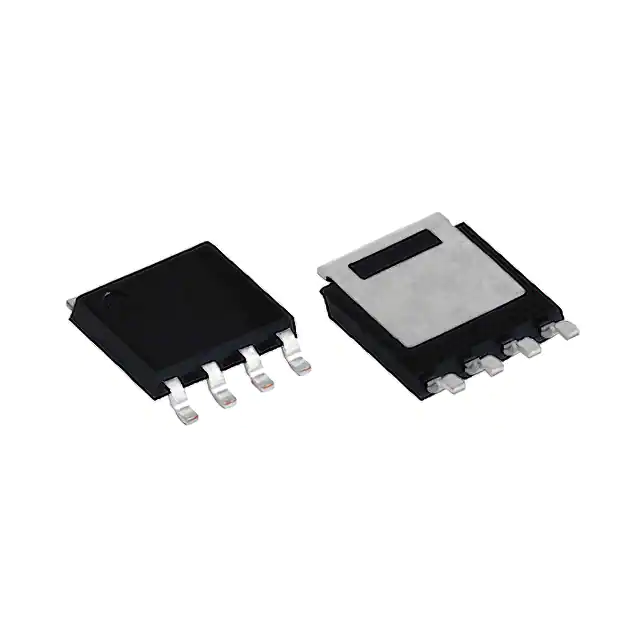

SQJ170ELP-T1_GE3N-CHANNEL 60-V (D-S) 175C MOSFET |
6,174 |
|
Datasheet |
- | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 63A (Tc) | 4.5V, 10V | 16.3mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 10 V | ±20V | 1165 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
RS3E135BNGZETBMOSFET N-CHANNEL 30V 9.5A 8SOP |
4,961 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 10V | 14.6mOhm @ 9.5A, 10V | 2.5V @ 1mA | 8.3 nC @ 4.5 V | ±20V | 680 pF @ 15 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
.jpg)
|

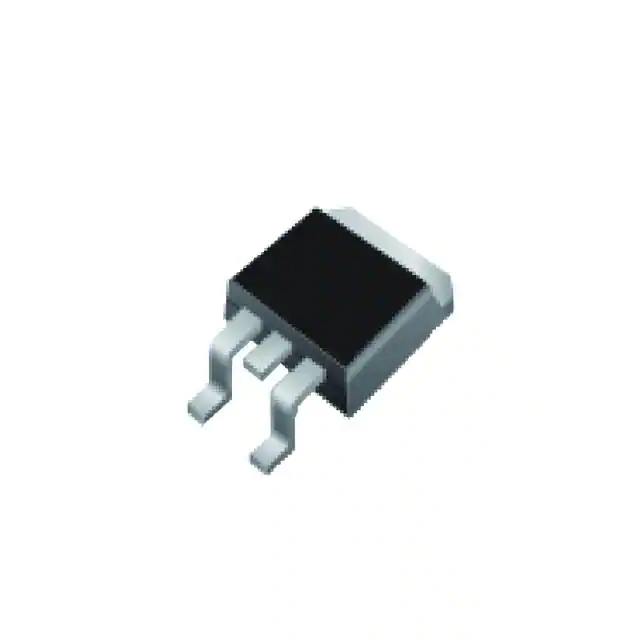

SIHF9Z24STRR-GE3MOSFET P-CHANNEL 60V |
4,767 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 10V | 280mOhm @ 6.6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 3.7W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
CSD16404Q5AMOSFET N-CH 25V 21A/81A 8VSON |
4,328 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 21A (Ta), 81A (Tc) | 4.5V, 10V | 5.1mOhm @ 20A, 10V | 2.1V @ 250µA | 8.5 nC @ 4.5 V | +16V, -12V | 1220 pF @ 12.5 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
DMT10H015LSS-13MOSFET N-CH 100V 8.3A 8SO |
3,900 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 8.3A (Ta) | 4.5V, 10V | 16mOhm @ 20A, 10V | 3.5V @ 250µA | 33.3 nC @ 10 V | ±20V | 1871 pF @ 50 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
SISH410DN-T1-GE3MOSFET N-CH 20V 22A/35A PPAK |
3,114 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8SH | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 22A (Ta), 35A (Tc) | 4.5V, 10V | 4.8mOhm @ 20A, 10V | 2.5V @ 250µA | 41 nC @ 10 V | ±20V | 1600 pF @ 10 V | - | 3.8W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8SH |
|
NVTFS6H860NLWFTAGMOSFET N-CH 80V 8.1A/30A 8WDFN |
2,910 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.1A (Ta), 30A (Tc) | 4.5V, 10V | 20mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 610 pF @ 40 V | - | 3.1W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NVTFS6H860NLTAGMOSFET N-CH 80V 8.1A/30A 8WDFN |
2,777 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.1A (Ta), 30A (Tc) | 4.5V, 10V | 20mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 610 pF @ 40 V | - | 3.1W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

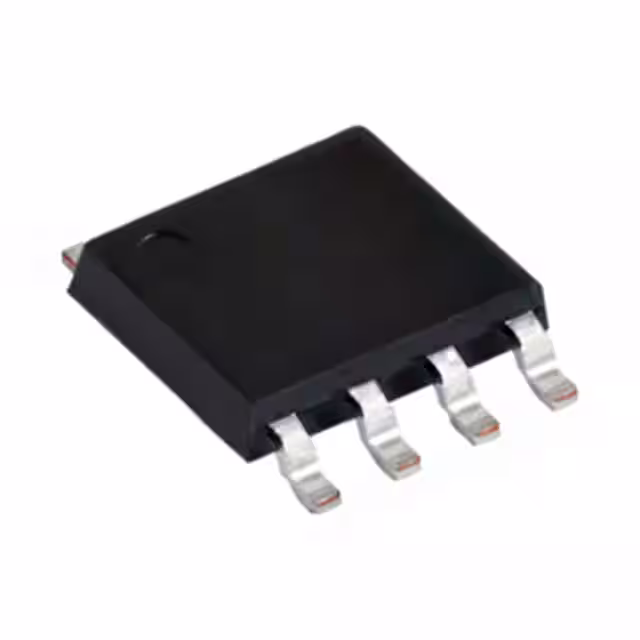

SQJ186EP-T1_GE3AUTOMOTIVE N-CHANNEL 80 V (D-S) |
2,510 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 60A (Tc) | 10V | 15mOhm @ 20A, 10V | 3.5V @ 250µA | 36 nC @ 10 V | ±20V | 1942 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SISS98DN-T1-GE3MOSFET N-CH 200V 14.1A PPAK |
1,990 |
|
Datasheet |
ThunderFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 14.1A (Tc) | 7.5V, 10V | 105mOhm @ 7A, 10V | 4V @ 250µA | 14 nC @ 7.5 V | ±20V | 608 pF @ 100 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
IPD130N10NF2SATMA1MOSFET |
1,934 |
|
Datasheet |
StrongIRFET™ 2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11A (Ta), 52A (Tc) | 6V, 10V | 13mOhm @ 30A, 10V | 3.8V @ 30µA | 28 nC @ 10 V | ±20V | 1300 pF @ 50 V | - | 3W (Ta), 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
