FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMFS4C03NT1GMOSFET N-CH 30V 30A/136A 5DFN |
3,637 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta), 136A (Tc) | 4.5V, 10V | 2.1mOhm @ 30A, 10V | 2.2V @ 250µA | 45.2 nC @ 10 V | ±20V | 3071 pF @ 15 V | - | 3.1W (Ta), 64W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
BUK7M6R0-40HXMOSFET N-CH 40V 50A LFPAK33 |
2,583 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 6mOhm @ 20A, 10V | 3.6V @ 1mA | 28 nC @ 10 V | +20V, -10V | 1875 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
IRF620PBF-BE3MOSFET N-CH 200V 5.2A TO220AB |
2,494 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5.2A (Tc) | - | 800mOhm @ 3.1A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
DMTH6010SK3Q-13MOSFET N-CH 60V 16.3A/70A TO252 |
2,291 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 16.3A (Ta), 70A (Tc) | 10V | 8mOhm @ 20A, 10V | 4V @ 250µA | 38.1 nC @ 10 V | ±20V | 2841 pF @ 30 V | - | 3.1W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
IRFU110PBFMOSFET N-CH 100V 4.3A TO251AA |
1,736 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | 10V | 540mOhm @ 900mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
STL50N6F7MOSFET N-CH 60V 60A POWERFLAT |
1,709 |
|
Datasheet |
STripFET™ F7 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 11mOhm @ 7.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 1035 pF @ 30 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
|
NTMFS4C022NT1GMOSFET N-CH 30V 30A/136A 5DFN |
1,063 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta), 136A (Tc) | 4.5V, 10V | 1.7mOhm @ 30A, 10V | 2.2V @ 250µA | 45.2 nC @ 10 V | ±20V | 3071 pF @ 15 V | - | 3.1W (Ta), 64W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
SI4168DY-T1-GE3MOSFET N-CH 30V 24A 8SO |
26,145 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Tc) | 4.5V, 10V | 5.7mOhm @ 20A, 10V | 3V @ 250µA | 44 nC @ 10 V | ±20V | 1720 pF @ 15 V | - | 2.5W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SQ9407EY-T1_BE3MOSFET P-CH 60V 4.6A 8SOIC |
12,036 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 4.6A (Tc) | 4.5V, 10V | 85mOhm @ 3.5A, 10V | 2.5V @ 250µA | 40 nC @ 10 V | ±20V | 1140 pF @ 30 V | - | 3.75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
TSM60NC1R5CP ROG600V, 3A, SINGLE N-CHANNEL POWER |
10,345 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Tc) | 10V | 1.5Ohm @ 1A, 10V | 5.5V @ 1mA | 8.1 nC @ 10 V | ±20V | 242 pF @ 25 V | - | 55W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
_bottomview.jpg)
|

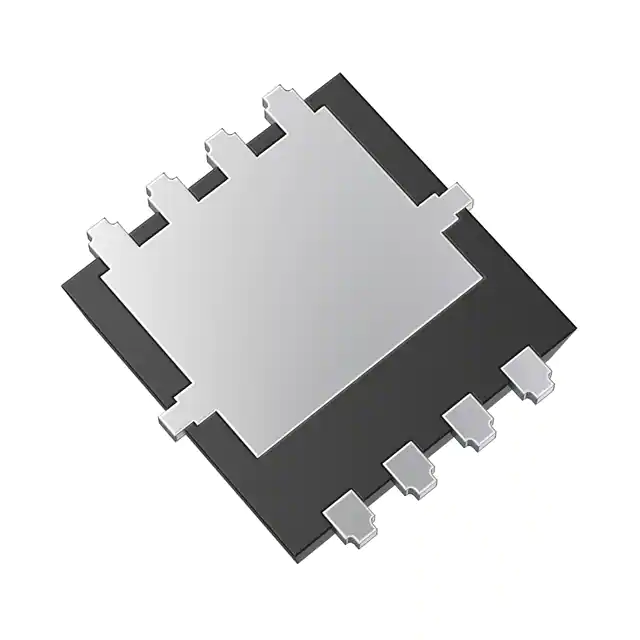

XPN12006NC,L1XHQMOSFET N-CH 60V 20A 8TSON |
9,542 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A | 4.5V, 10V | 12mOhm @ 10A, 10V | 2.5V @ 200µA | 23 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 65W (Tc) | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-TSON Advance-WF (3.1x3.1) |
|
SQJ418EP-T1_BE3N-CHANNEL 100-V (D-S) 175C MOSFE |
9,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 48A (Tc) | 10V | 14mOhm @ 10A, 10V | 3.5V @ 250µA | 35 nC @ 10 V | ±20V | 1700 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|

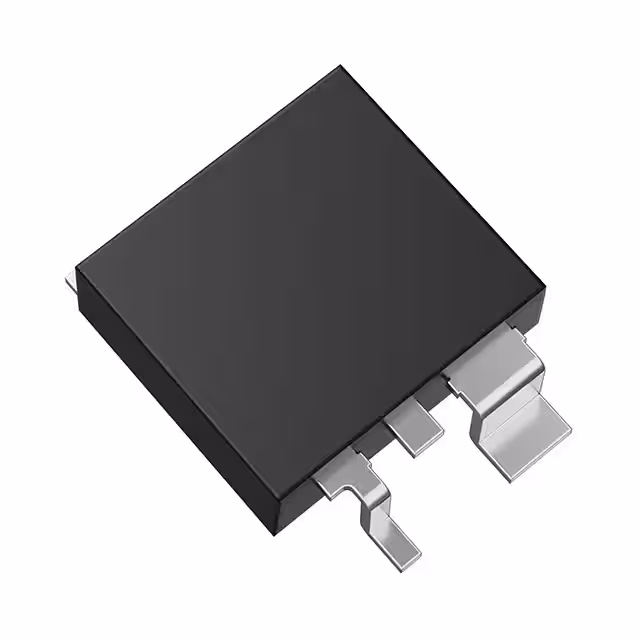

TK65S04N1L,LXHQMOSFET N-CH 40V 65A DPAK |
4,642 |
|
Datasheet |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 65A (Ta) | 4.5V, 10V | 4.3mOhm @ 32.5A, 10V | 2.5V @ 300µA | 39 nC @ 10 V | ±20V | 2550 pF @ 10 V | - | 107W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
NVF2955T1GMOSFET P-CH 60V 2.6A SOT223 |
2,636 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.6A (Ta) | 10V | 170mOhm @ 750mA, 10V | 4V @ 1mA | 14.3 nC @ 10 V | ±20V | 492 pF @ 25 V | - | 1W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 (TO-261) |
|
NVMYS6D2N06CLTWGMOSFET N-CH 60V 17A/71A 4LFPAK |
13,324 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Ta), 71A (Tc) | - | 6.1mOhm @ 35A, 10V | 2V @ 53µA | 20 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.6W (Ta), 61W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
|
XPN7R104NC,L1XHQMOSFET N-CH 40V 20A 8TSON |
11,107 |
|
Datasheet |
U-MOSIII | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 20A (Ta) | 4.5V, 10V | 7.1mOhm @ 10A, 10V | 2.5V @ 200µA | 21 nC @ 10 V | ±20V | 1290 pF @ 10 V | - | 840mW (Ta), 65W (Tc) | 175°C | - | - | Surface Mount | 8-TSON Advance-WF (3.1x3.1) |
|

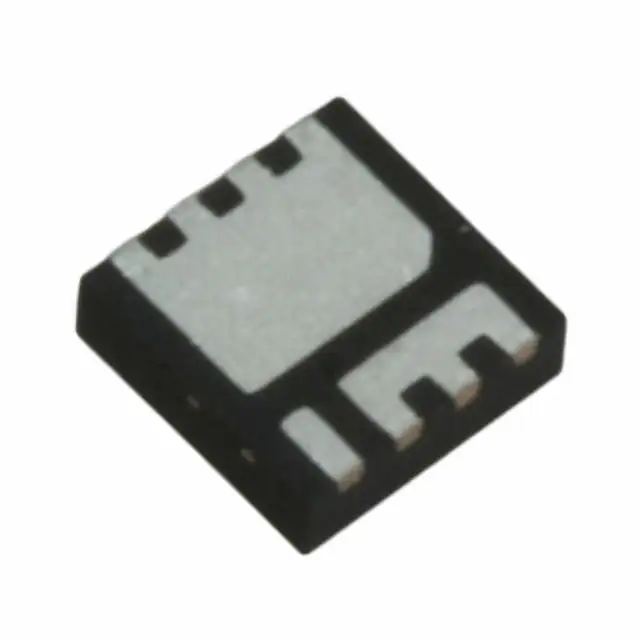

IRFH5301TRPBFMOSFET N-CH 30V 35A/100A PQFN |
9,076 |
|
Datasheet |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Ta), 100A (Tc) | 4.5V, 10V | 1.85mOhm @ 50A, 10V | 2.35V @ 100µA | 77 nC @ 10 V | ±20V | 5114 pF @ 15 V | - | 3.6W (Ta), 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) Single Die |
,TO-226_straightlead.jpg)
|
TN0620N3-G-P002MOSFET N-CH 200V 250MA TO92-3 |
6,309 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 250mA (Tj) | 5V, 10V | 6Ohm @ 500mA, 10V | 1.6V @ 1mA | - | ±20V | 150 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
SQJA82EP-T1_GE3MOSFET N-CH 80V 60A PPAK SO-8 |
5,446 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 60A (Tc) | 4.5V, 10V | 8.2mOhm @ 10A, 10V | 2.5V @ 250µA | 60 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
IPN80R900P7ATMA1MOSFET N-CHANNEL 800V 6A SOT223 |
5,077 |
|
Datasheet |
CoolMOS™ P7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 2.2A, 10V | 3.5V @ 110µA | 15 nC @ 10 V | ±20V | 350 pF @ 500 V | - | 7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223 |
