FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR9120NTRLPBFMOSFET P-CH 100V 6.6A DPAK |
7,277 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 100 V | 6.6A (Tc) | 10V | 480mOhm @ 3.9A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
DMTH43M8LFGQ-13MOSFET N-CH 40V PWRDI3333 |
5,990 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 100A (Tc) | 5V, 10V | 3mOhm @ 20A, 10V | 2.5V @ 250µA | 40.1 nC @ 10 V | ±20V | 2798 pF @ 20 V | - | 2.62W (Ta), 65.2W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
DMTH6009LK3-13MOSFET N-CH 60V 14.2A/59A TO252 |
4,355 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14.2A (Ta), 59A (Tc) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | 2V @ 250µA | 33.5 nC @ 10 V | ±16V | 1925 pF @ 30 V | - | 3.2W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
IPD25CN10NGATMA1MOSFET N-CH 100V 35A TO252-3 |
3,796 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 25mOhm @ 35A, 10V | 4V @ 39µA | 31 nC @ 10 V | ±20V | 2070 pF @ 50 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
PSMN2R5-30YL,115MOSFET N-CH 30V 100A LFPAK56 |
2,490 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 2.4mOhm @ 15A, 10V | 2.15V @ 1mA | 57 nC @ 10 V | ±20V | 3468 pF @ 12 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
SQJ142ELP-T1_GE3MOSFET N-CH 40V 175A PPAK SO-8 |
2,384 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 175A (Tc) | 4.5V, 10V | 2.8mOhm @ 10A, 10V | 2.2V @ 250µA | 55 nC @ 10 V | ±20V | 3015 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
CSD25304W1015TMOSFET P-CH 20V 3A 6DSBGA |
1,482 |
|
Datasheet |
NexFET™ | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 32.5mOhm @ 1.5A, 4.5V | 1.15V @ 250µA | 4.4 nC @ 4.5 V | ±8V | 595 pF @ 10 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|
|
DMTH43M8LFGQ-7MOSFET N-CH 40V PWRDI3333 |
1,298 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 100A (Tc) | 5V, 10V | 3mOhm @ 20A, 10V | 2.5V @ 250µA | 40.1 nC @ 10 V | ±20V | 2798 pF @ 20 V | - | 2.62W (Ta), 65.2W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
PSMN2R8-25MLC,115MOSFET N-CH 25V 70A LFPAK33 |
24,371 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 70A (Tc) | 4.5V, 10V | 2.8mOhm @ 25A, 10V | 2.15V @ 1mA | 37.7 nC @ 10 V | ±20V | 2432 pF @ 12.5 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
CSD25310Q2TMOSFET P-CH 20V 20A 6WSON |
17,230 |
|
Datasheet |
NexFET™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Ta) | 1.8V, 4.5V | 23.9mOhm @ 5A, 4.5V | 1.1V @ 250µA | 4.7 nC @ 4.5 V | ±8V | 655 pF @ 10 V | - | 2.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
PSMN2R0-25MLDXMOSFET N-CH 25V 70A LFPAK33 |
11,518 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 70A (Tc) | 4.5V, 10V | 2.27mOhm @ 25A, 10V | 2.2V @ 1mA | 34.4 nC @ 10 V | ±20V | 2490 pF @ 12 V | Schottky Diode (Body) | 74W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
SQJ164ELP-T1_GE3AUTOMOTIVE N-CHANNEL 60 V (D-S) |
5,968 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 4.5V, 10V | 12mOhm @ 15A, 10V | 2.5V @ 250µA | 57 nC @ 10 V | ±20V | 3100 pF @ 25 V | - | 187W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|

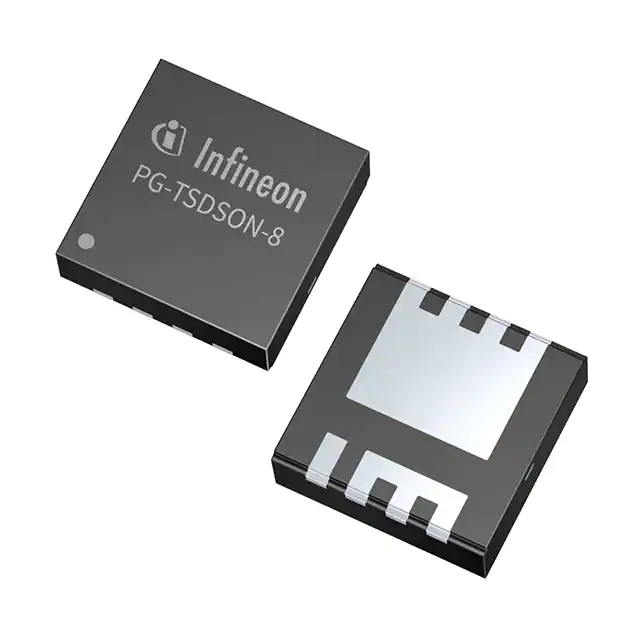

IAUZ40N06S5N050ATMA1MOSFET N-CH 60V 40A TSDSON-8-33 |
4,419 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Tj) | - | 5mOhm @ 20A, 10V | 3.4V @ 29µA | 30.5 nC @ 10 V | ±20V | 2200 pF @ 30 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSDSON-8-33 |
|
RD3H045SPTL1MOSFET P-CH 45V 4.5A TO252 |
3,879 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 4.5A (Ta) | 4V, 10V | 155mOhm @ 4.5A, 10V | 3V @ 1mA | 12 nC @ 5 V | ±20V | 550 pF @ 10 V | - | 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
TP2520N8-GMOSFET P-CH 200V 260MA TO243AA |
3,522 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 260mA (Tj) | 4.5V, 10V | 12Ohm @ 200mA, 10V | 2.4V @ 1mA | - | ±20V | 125 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-243AA (SOT-89) |
|
|
SQJ154EP-T1_GE3AUTOMOTIVE N-CHANNEL 40 V (D-S) |
3,098 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 243A (Tc) | 10V | 2.5mOhm @ 15A, 10V | 3.5V @ 250µA | 65 nC @ 10 V | ±20V | 3620 pF @ 25 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
IPA60R650CEXKSA1MOSFET N-CH 600V 7A TO220-FP |
500 |
|
Datasheet |
CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 650mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 28W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
TP2502N8-GMOSFET P-CH 20V 630MA TO243AA |
197 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 630mA (Tj) | 5V, 10V | 2Ohm @ 1A, 10V | 2.4V @ 1mA | - | ±20V | 125 pF @ 20 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-243AA (SOT-89) |
|
FDMA86151LMOSFET N-CH 100V 3.3A 6MICROFET |
10,099 |
|
Datasheet |
PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.3A (Ta) | 4.5V, 10V | 88mOhm @ 3.3A, 10V | 3V @ 250µA | 7.3 nC @ 10 V | ±20V | 450 pF @ 50 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
IRFR210TRPBFMOSFET N-CH 200V 2.6A DPAK |
7,733 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.6A (Tc) | 10V | 1.5Ohm @ 1.6A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
