FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA3N60PMOSFET N-CH 600V 3A TO263 IXYS |
3,792 | - |
|
Datasheet |
PolarHV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3A (Tc) | 10V | 2.9Ohm @ 500mA, 10V | Surface Mount | 5.5V @ 50µA | 9.8 nC @ 10 V | 600 V | ±30V | 411 pF @ 25 V | - | - | TO-263AA | - | 70W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTP4N60PMOSFET N-CH 600V 4A TO220AB IXYS |
3,076 | - |
|
Datasheet |
PolarHV™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 2Ohm @ 2A, 10V | Through Hole | 5.5V @ 100µA | 13 nC @ 10 V | 600 V | ±30V | 635 pF @ 25 V | - | - | TO-220-3 | - | 89W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA4N60PMOSFET N-CH 600V 4A TO263 IXYS |
2,008 | - |
|
Datasheet |
PolarHV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4A (Tc) | 10V | 2Ohm @ 2A, 10V | Surface Mount | 5.5V @ 100µA | 13 nC @ 10 V | 600 V | ±30V | 635 pF @ 25 V | - | - | TO-263AA | - | 89W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTP5N60PMOSFET N-CH 600V 5A TO220AB IXYS |
4,812 | - |
|
Datasheet |
PolarHV™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5A (Tc) | 10V | 1.7Ohm @ 2.5A, 10V | Through Hole | 5.5V @ 50µA | 14.2 nC @ 10 V | 600 V | ±30V | 750 pF @ 25 V | - | - | TO-220-3 | - | 100W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTA5N60PMOSFET N-CH 600V 5A TO263 IXYS |
4,035 | - |
|
Datasheet |
PolarHV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5A (Tc) | 10V | 1.7Ohm @ 2.5A, 10V | Surface Mount | 5.5V @ 50µA | 14.2 nC @ 10 V | 600 V | ±30V | 750 pF @ 25 V | - | - | TO-263AA | - | 100W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTP7N60PMOSFET N-CH 600V 7A TO220AB IXYS |
3,739 | - |
|
Datasheet |
PolarHV™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7A (Tc) | 10V | 1.1Ohm @ 3.5A, 10V | Through Hole | 5.5V @ 100µA | 20 nC @ 10 V | 600 V | ±30V | 1080 pF @ 25 V | - | - | TO-220-3 | - | 150W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTV18N60PMOSFET N-CH 600V 18A PLUS220 IXYS |
4,589 | - |
|
Datasheet |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 420mOhm @ 9A, 10V | Through Hole | 5.5V @ 250µA | 49 nC @ 10 V | 600 V | ±30V | 2500 pF @ 25 V | - | - | PLUS220 | - | 360W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTV22N60PMOSFET N-CH 600V 22A PLUS220 IXYS |
3,729 | - |
|
Datasheet |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | Through Hole | 5.5V @ 250µA | 62 nC @ 10 V | 600 V | ±30V | 3600 pF @ 25 V | - | - | PLUS220 | - | 400W (Tc) | -55°C ~ 150°C (TJ) |
|

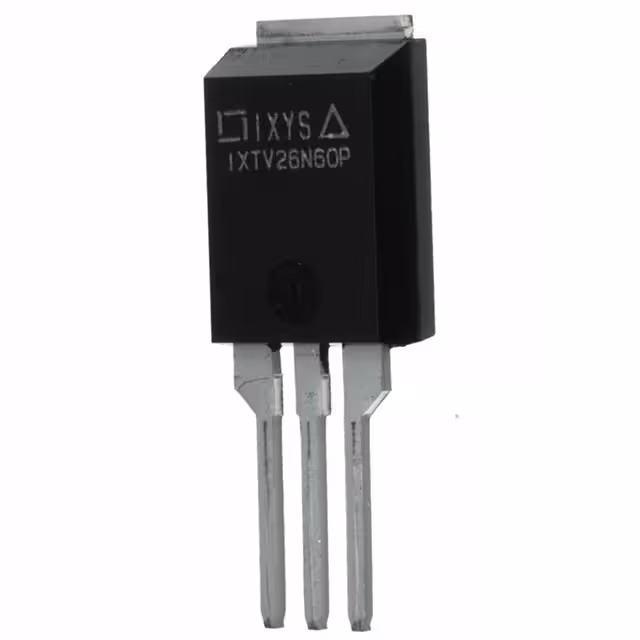

IXTV26N60PMOSFET N-CH 600V 26A PLUS220 IXYS |
2,876 | - |
|
Datasheet |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | Through Hole | 5V @ 250µA | 72 nC @ 10 V | 600 V | ±30V | 4150 pF @ 25 V | - | - | PLUS220 | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|

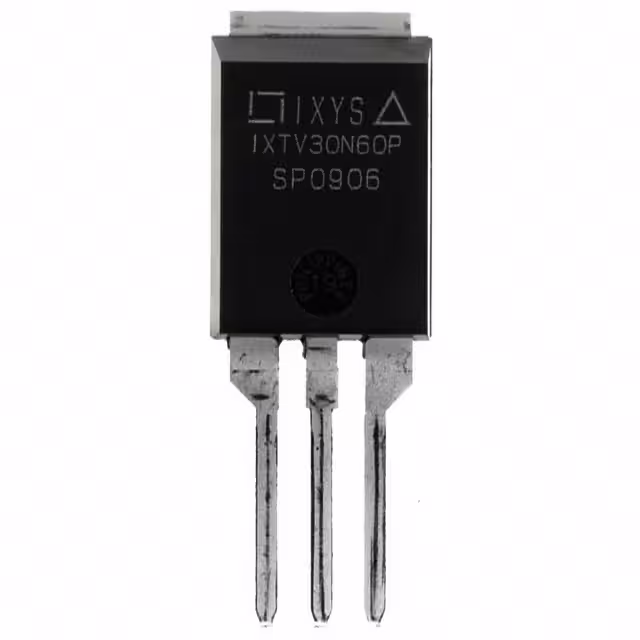

IXTV30N60PMOSFET N-CH 600V 30A PLUS220 IXYS |
4,195 | - |
|
Datasheet |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | Through Hole | 5V @ 250µA | 82 nC @ 10 V | 600 V | ±30V | 5050 pF @ 25 V | - | - | PLUS220 | - | 540W (Tc) | -55°C ~ 150°C (TJ) |
